Double Dimmer-Control – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC14-25070533

Name

Double Dimmer-Control

Short Description

DoubleDimmer-Control enables control of connected devices either through the Z-Wave Plus® network or a wall switch. It enables switching or dimming two load circuits independently or in parallel.

Description

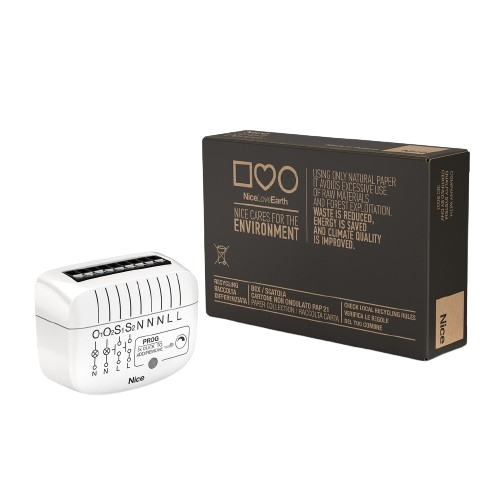

DoubleDimmer-Control is designed to manage two independent light loads, especially those based on LED technology. It's intended for installation in standard wall switch boxes. It can also be installed—according to its technical specifications—wherever it's necessary to control dimmable or non-dimmable lighting circuits. DoubleDimmer-Control enables control of connected devices either through the Z-Wave Plus® network or a wall switch. It enables switching or dimming two load circuits independently or in parallel. The device monitors load power consumption, energy consumption, and mains voltage values. This data is sent to the hub through the Z-Wave® network.

Brand

Nice

Brand Owner

Nice

Identifier

FGD-223

Product Line

Double Dimmer-Control

OEM Version

HW: 03 FW: 08.00

Hardware Platform

EFR32ZG23B

Z-Wave Version

7.23.1

Library Type

END_NODE_ENHANCED_232

Device Type

Multilevel Switch DT

Role Type

ROLE_TYPE_END_NODE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x0103

Product ID

0x3000

User Icon

0x0600

Installer Icon

0x0600

Radio Range Z-Wave (m)

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

Dimming Lighting Devices

Countries / Regions

Australia, Brazil, New Zealand

Supported Command Classes

S2 Classes

S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Association Groups

Configuration Parameters

Texts

ID	Description	Value
8	Where to find S2 DSK on product	If you're adding the device in the Security S2 Authenticated mode, input the PIN Code labelled on the device. The PIN Code is also an underlined part of the device specific key (DSK) labelled at the bottom of the box.
1	Classic Inclusion	Adding (Inclusion) - The Z-Wave device learning mode enables adding the device to the existing Z-Wave network. 5.1 - Adding the device to the Z-Wave network manually 1. Place DoubleDimmer-Control within the direct range of your Z-Wave hub. 1. Set the main hub to add mode (secure or non-secure). For more information, see the hub manual. 2. Quickly press the S1 or S2 switch, or the PROG button, three times. 3. If you're adding the device in the Security S2 Authenticated mode, input the PIN Code labelled on the device. The PIN Code is also an underlined part of the device specific key (DSK) labelled at the bottom of the box. 4. Wait for the adding process to finish. 5. Successful adding is confirmed by the Z-Wave hub message and the device LED indicator:
2	Classic Exclusion	Removing (Exclusion) - The Z-Wave device remove mode enables removing the device from the existing Z-Wave network. To remove the device from the Z-Wave network: 1. Place DoubleDimmer-Control within the direct range of your Z-Wave hub. 2. Set the main hub to the remove mode. For more information, see the hub manual. 3. Quickly press S1 or S2 switch, or the PROG button, three times. Note This function for S1 and S2 switches is available for 10 minutes after powering the device. 4. Wait for the removing process to end. 5. Successful removal is confirmed by the Z-Wave hub message and the red LED indicator.
5	Factory Reset Procedure	6.2 - Resetting DoubleDimmer-Control 1. Switch off the mains voltage (disable the fuse). 2. Remove DoubleDimmer-Control from the wall switch box. 3. Switch on the mains voltage. 4. Press and hold the PROG-button to enter the menu. 5. Wait for the visual LED indicator to glow yellow (Position 1). 6. Quickly release and click the PROG-button again. 7. After a few seconds, the device restarts, which is indicated by the red LED indicator.

Supported / Controlled Meter Types

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
