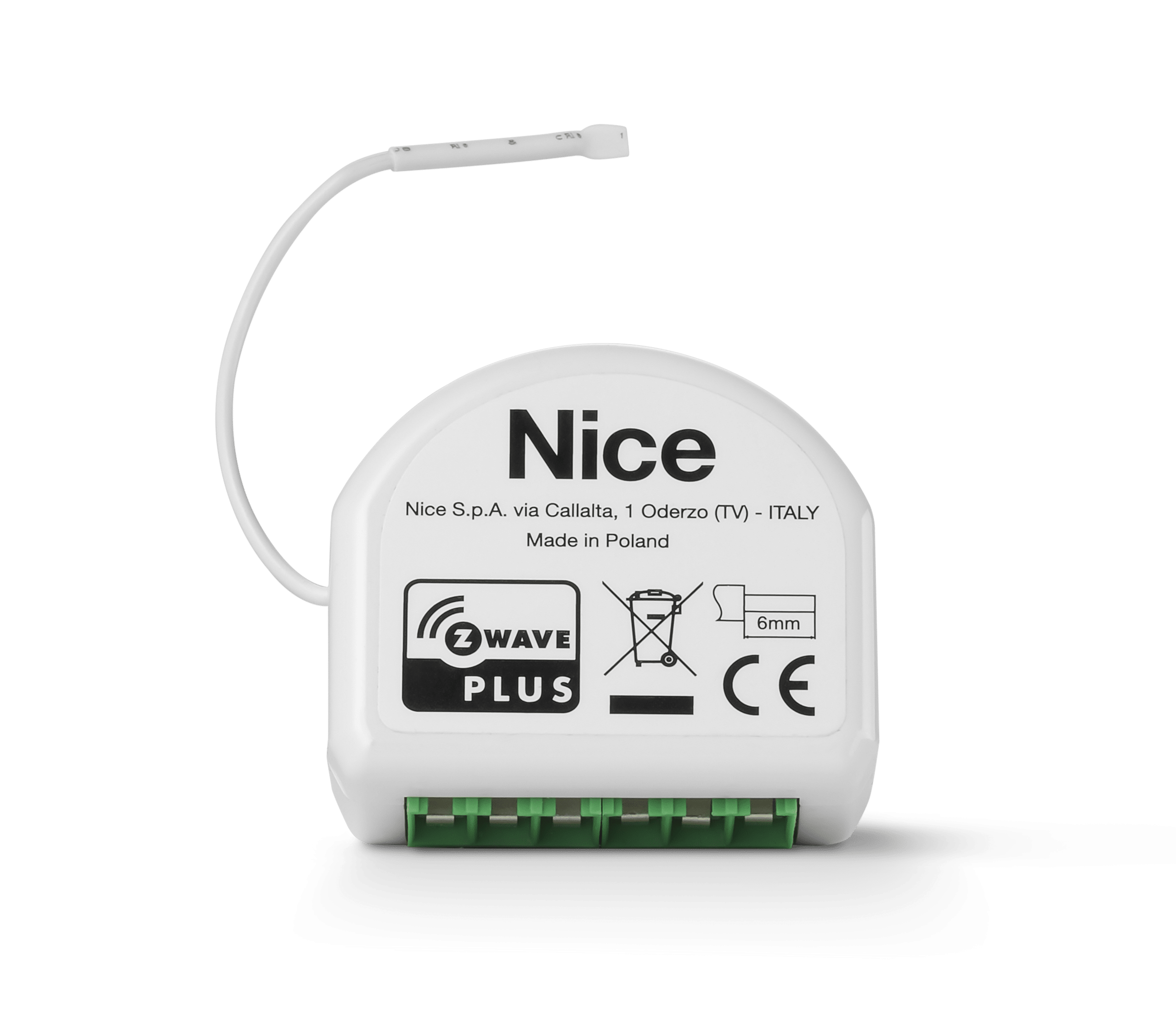

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_SWITCH_BINARY

Binary Switch

0x25

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_PROTECTION_V2

Protection V2

0x75

2

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2

Association Group Information (AGI) V2

0x59

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta Data V4

0x7A

4

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi Channel Association V3

0x8E

3

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_CRC_16_ENCAP

CRC-16 Encapsulation

0x56

1

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi Channel V4

0x60

4

COMMAND_CLASS_SECURITY

Security 0

0x98

1

COMMAND_CLASS_SECURITY_2

Security 2

0x9F

1

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_English

8

Where to find S2 DSK on product

If you are adding the device in Security S2 Authenticated Mode, enter the underlined part of the DSK (see the label on the bottom of the box).

1

Classic Inclusion

5.1.1 - Adding device to Z-Wave® manually 1. Power on the device. 2. Set the main controller in the add mode (Security/non-Security Mode). See the controller manual. 3. Click the button connected to S1/S2 or the maintenance button quickly, three times. 4. LED indicator light starts blinking in yellow, wait for the adding process to end. 5. If you are adding the device in Security S2 Authenticated Mode, enter the underlined part of the DSK (see the label on the bottom of the box). 6. Adding is confirmed by the Z-Wave® controller message and the LED indicator light: • Green – successful (Non-secure, S0, S2 Non-authenticated) • Magenta – successful (Security S2 Authenticated) • Red – failed

2

Classic Exclusion

5.2 - Removing device from Z-Wave® (Exclusion) It's the Z-Wave® device learning mode. It enables removing the device from an existing Z-Wave® network. This also resets the device to fac- tory settings. Make sure that restoring the factory settings doesn't damage the connected device. We recommend disconnecting the device first. To remove the device from the Z-Wave® network: 1. Power on the device. 2. Set the main controller in the remove mode (see the controller manual). 3. Click the maintenance button quickly, three times. 4. LED indicator light starts blinking in yellow, wait for the removing process to end. 5. Successful removal is confirmed by the Z-Wave® controller message and red LED indicator light.

5

Factory Reset Procedure

Resetting the device isn't the recommended way of removing the device from the Z-Wave® network. Use reset procedure only if the primary controller is missing or inoperable. To remove the device: 1. Press and hold the maintenance button to enter the menu. 2. Release the button when the LED indicator light glows yellow. 3. Quickly click the button to confirm. 4. After a few seconds the device is restarted, which is signaled with red LED indicator light.
