Product Recognition

Certification Number

ZC10-20026859

Name

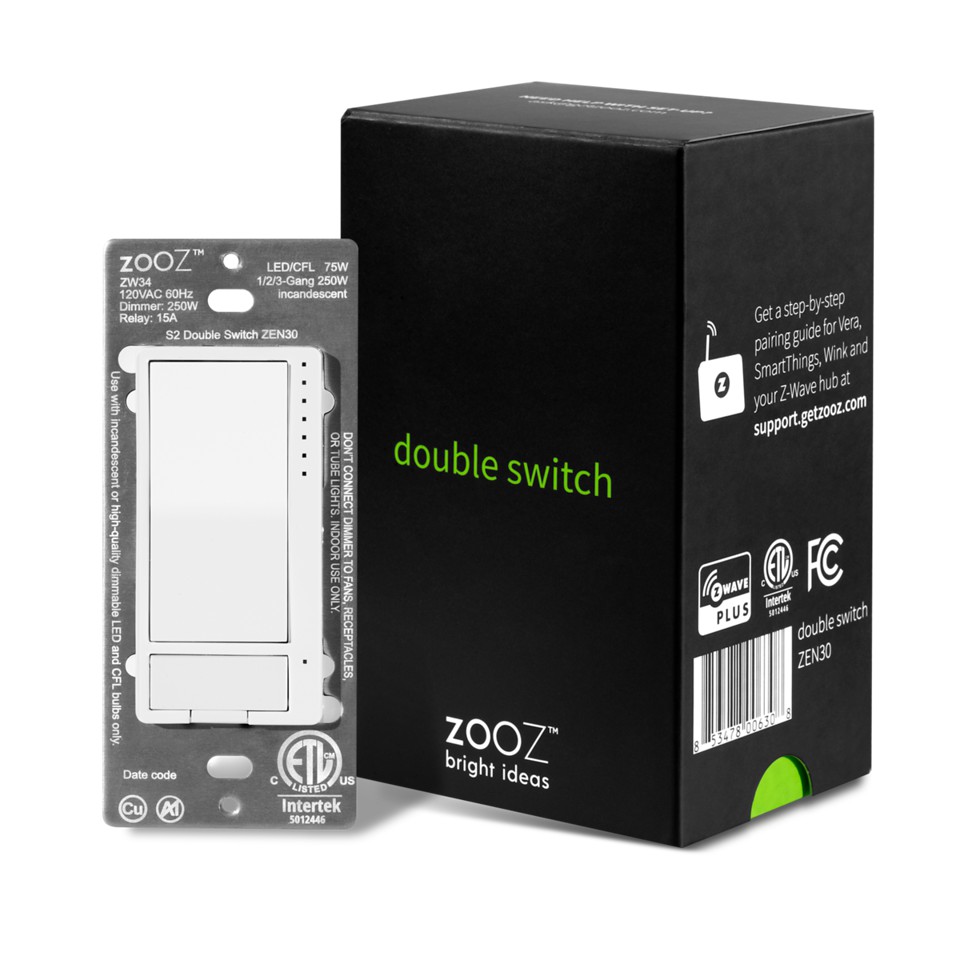

Double Switch

Short Description

A dimmer and 15 A relay in one wall switch, this Double Switch is an easy replacement for your existing double wall switch.

Long Description

PRODUCT FEATURES: - Manual or Z-Wave control of 2 separate loads (dimmer + relay) - Perfect replacement for a fan / light combo (neutral wire required) - Scene control for multi-tap scenarios on select hubs - Quick and easy pigtail wire installation (single pole only) - 4-color LED indicator and air-gap switch for added safety - Fully customizable dimming features including ramp rate, on brightness level, and double tap to full brightness - Remembers and restores on/off status a􀈇er power failure - Built-in Z-Wave Plus signal repeater to extend network range - S2 security protocol and 500 Z-Wave chip SPECIFICATIONS: - Model Number: ZEN30 - Z-Wave Signal Frequency: 908.42 MHz - Power: 120 VAC, 60 Hz - Dimmer Max Load: 75 W LED, 250 W incandescent; DON’T use with tube lights, DC powered fixtures, or chandeliers - Relay Max Load: 15 A (1/2 HP) - Operating Temperature: 32-104° F (0-40° C) - Installation and Use: Indoor only

Brand

Zooz

Product Identifier

ZEN30

Product Line

Lighting

OEM Version

HW: 2 FW: 1.00

Hardware Platform

ZM5202

Z-Wave Version

6.82.00

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x027A

Product Type ID

0xa000

Product ID

0xa008

User Icon

0x0604

Installer Icon

0x0600

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

LED Indicator Mode for Dimmer

Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times. This setting is for the top status indicator only.

From	To	Description
0	0	LED indicator is on when switch is off, LED indicator is off when switch is on (default);
1	1	LED indicator is on when switch is on, LED indicator is off when switch is off;
2	2	LED indicator is always OFF and LED’s don’t indicate brightness level during dimming;
3	3	LED indicator is always ON.

LED Indicator Control for Relay

Choose if you want the LED indicator to turn on when the relay is on or off, or if you want it to remain on or off at all times

From	To	Description
0	0	LED indicator is on when relay is off, LED indicator is off when relay is on (default);
1	1	LED indicator is on when relay is on, LED indicator is off when relay is off;
2	2	LED indicator is always OFF
3	3	LED indicator is always ON

LED Indicator Color for Dimmer

Choose the color of the LED indicators for the dimmer.

From	To	Description
0	0	white
1	1	blue
2	2	green
3	3	red

LED Indicator Color for Relay

Choose the color of the LED indicator for the relay.

From	To	Description
0	0	white
1	1	blue
2	2	green
3	3	red

LED Indicator Brightness for Dimmer

Choose the LED indicators’ brightness level for the dimmer.

From	To	Description
0	0	bright (100%)
1	1	medium (60%)
2	2	low (30%)

LED Indicator Brightness for Relay

Choose the LED indicators’ brightness level for the relay.

From	To	Description
0	0	bright (100%)
1	1	medium (60%)
2	2	low (30%)

LED Indicator Mode for Scene Control

Choose if you want the LED indicators next to the dimmer light up when a scene is selected. You’ll see 1 to 5 LED’s light up for 1 – 5 tap triggers and 6 LED’s light up for the press-and-hold trigger of any paddle / button used.

From	To	Description
0	0	LED’s enabled to indicate scene triggers;
1	1	LED’s disabled to indicate scene triggers (default).

Auto Turn-Off Timer for Dimmer

Use this parameter to set the time a􀈇er which you want the dimmer to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
0	0	timer disabled
1	65535	minutes

Auto Turn-On Timer for Dimmer

Use this parameter to set the time a􀈇er which you want the dimmer to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
0	0	timer disabled
1	65535	minutes

Auto Turn-Off Timer for Relay

Use this parameter to set the time a􀈇er which you want the relay to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
0	0	timer disabled
1	65535	minutes

Auto Turn-On Timer for Relay

Use this parameter to set the time a􀈇er which you want the relay to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
0	0	timer disabled
1	65535	minutes

Double Tap Function for Dimmer

Choose if you want the dimmer to turn on to full brightness or custom brightness level a􀈇er you double-tap the upper paddle.

From	To	Description
0	0	the light will turn on to full brightness with double tap (default).
1	1	the light will turn on to the maximum brightness level set in Parameter 15 with double tap.

Custom Brightness Level On for Dimmer

Set custom brightness level (in %) for the dimmer to come on to at single tap.

From	To	Description
0	0	last brightness level
1	99	% brightness

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
