Product Recognition
Certification Number	ZC10-15090010

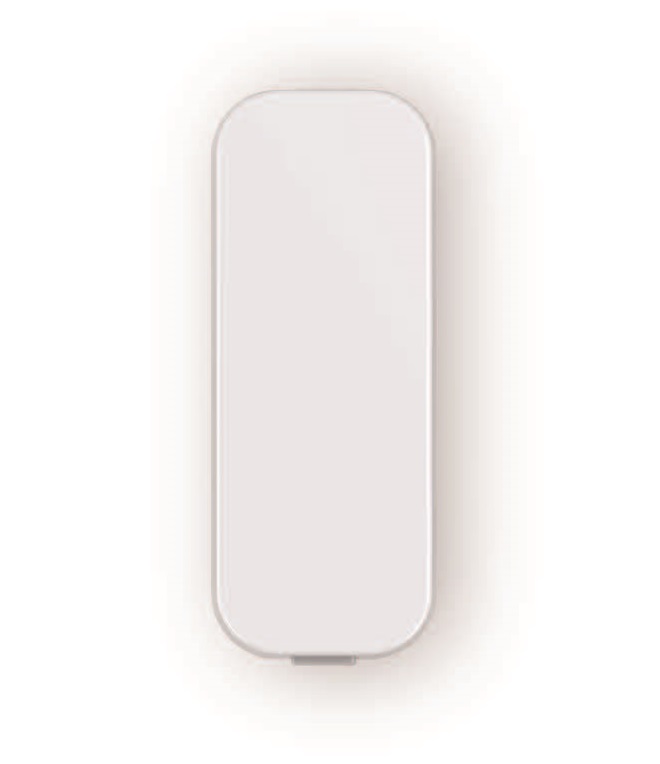

Name	Dry Contact Sensor Gen5
Short Description	Aeon Labs Dry Contact Sensor Gen5 is a dry conatct sensor that can detect a variety of dry contact signals.
Long Description	Aeon Labs Dry Contact Sensor Gen5 is a dry conatct sensor that can detect a variety of dry contact signals, you just need to connect the matched external sensor on it, such as the water level sensor, dry contact switch, dry contact relay and so on. In other words, it can be used if the external sensor is a dry contact. It’s a security Z-Wave device that supports security encryption. Also it supports the “Over the Air Firmware Updating” that allows you wirelessly update its firmware if needs. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from manufacturers and/or other applications.
Brand	Aeotec
Product Identifier	ZW097-A
OEM Version	HW: 61 FW: 1.05
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0086
Product Type ID	0x0102
Product ID	0x0061
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Dry Contact Sensor Gen5 manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has max 5 nodes to associate. The Basic Set CC or Sensor Binary report CC will be sent to the associated nodes in Group 1.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Which value of the Sensor Binary Report will be sent when the Sensor is triggered On or Off. This parameter is used to set the Sensor binary report value when the Sensor is triggered On or Off. 0 1 0 0 0 From To Description 0 0 When the Sensor is triggered On, Sensor Binary Report=0xFF. When the Sensor is triggered Off, Sensor Binary Report=0x00. 1 1 When the Sensor is triggered On, Sensor Binary Report=0x00. When the Sensor is triggered Off, Sensor Binary Report=0xFF. 2 Enable/disable wake-up 10 minutes when re-power on the Sensor. This parameter is used to enable/disable wake-up 10 minutes when re-power on the Sensor. 0 1 0 0 1 From To Description 0 0 Disable. 1 1 Enable. 3 Which value of the Basic Set will be sent when the Sensor is triggered On/Off. This parameter is used to set the Basic Set value when the Sensor is triggered On/Off. 0 1 0 0 0 From To Description 1 1 When the Sensor is triggered On, Basic Set=0x00. When the Sensor is triggered Off, Basic Set=0xFF. 0 0 When the Sensor is triggered On, Basic Set=0xFF. When the Sensor is triggered Off, Basic Set=0x00. 111 Set the interval time of battery report. This parameter is used to set the interval time of battery report. 0 4 0 0 0 From To Description 0 0 The periodic battery report is disabled. 1 2147483647 the range of interval time is 1 seconds to 2147483647 seconds. 122 Set a Notification type for Dry Contact Sensor. This parameter is used to set a Notification type for Dry Contact Sensor. 0 1 0 0 6 From To Description 1 1 The Smoke Alarm notification type is selected for the Sensor. 2 2 The CO Alarm notification type is selected for the Sensor. 3 3 The CO2 Alarm notification type is selected for the Sensor. 4 4 The Heat Alarm notification type is selected for the Sensor. 5 5 The Water Alarm notification type is selected for the Sensor. 6 6 The Access Control notification type is selected for the Sensor. 7 7 The Home Security notification type is selected for the Sensor. 8 8 The Power Management notification type is selected for the Sensor. 9 9 The System notification type is selected for the Sensor. 10 10 The Emergency Alarm notification type is selected for the Sensor. 11 11 The Clock notification type is selected for the Sensor. 255 Reset the Sensor. This parameter is used to reset the Sensor. 0 4 0 0 0 From To Description 0 0 Reset to factory default settings. 1431655765 1431655765 Reset to factory default settings and removed from the Z-Wave network.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find in the back of the product. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find in back of the product. 5 Factory Reset Press the Action Button once that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up Press the Action Button once, which will trigger sending out the Wake up notification command, press and hold the Action Button for 3 seconds, which will toggle on/off the Sensor be waked up for 10 minutes. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supports NWI	Yes
Supports Explorer Frames	Yes
