Product Recognition

Certification Number

ZC10-17035501

Name

Dual In-Wall Switch

Short Description

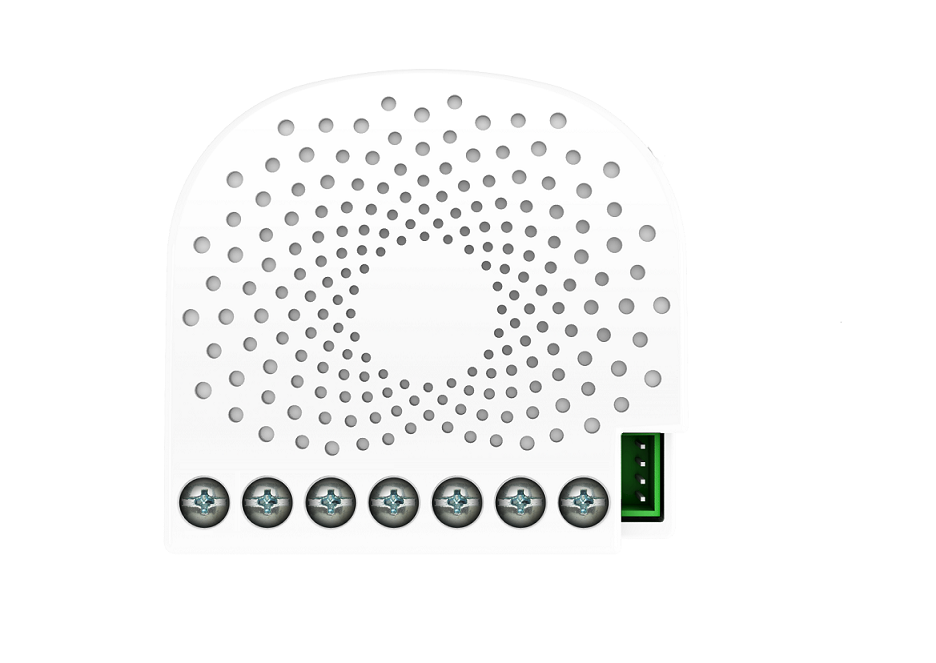

Oomi Dual In-Wall Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches also provides energy metering.

Long Description

Oomi Dual In-Wall Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Dual Nano Switch. The Dual In-Wall Switch is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.

Brand

Oomi

Product Identifier

FT132-C

OEM Version

HW: 132 FW: 1.01:01.00

Hardware Platform

ZM5101

Z-Wave Version

6.51.09

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x016A

Product Type ID

0x0003

Product ID

0x0084

User Icon

0x0700

Installer Icon

0x0700

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

122

Set the control destination for external switch

From	To	Description
1	1	control the output loads of itself.
2	2	control the other nodes
3	3	control the output loads of itself and other nodes.

To set which notification would be sent to the associated devices (Group 1)

To set which notification would be sent to the associated devices (Group 1) when the state of Dual Nano Switchr’s load is changed.

From	To	Description
0	0	Send Nothing
1	1	Send Hail CC
2	2	Send Basic CC report
3	3	Send Hail CC when using the manual switch to change the load state.

To set which notification would be sent to the associated nodes in association group 3

To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads.

From	To	Description
0	0	Send Nothing
1	1	Send Basic Set CC

Set appointment 1

Set the ON time of output load.

8327680

From	To	Description
256	316	The hour value of ON time
16777215	16777215	Disable the setting.
0	60	The minute value of ON time
65536	65543	The day value (Mon to Sun)
16777216	16777216	Enable the setting.

Set appointment 2

Set the OFF time of output load.

8327680

From	To	Description
256	316	The hour value of ON time
65536	65543	The day value (Mon to Sun)
16777215	16777215	Disable the setting.
0	60	The minute value of ON time
16777216	16777216	Enable the setting.

Enables/disables parameter 91 and 92 below:

Enables/disables the function of parameter 91 and 92.

From	To	Description
0	0	Disable
1	1	Enable

Set the ON/OFF time of the LED when it is in Night light mode.

301991936

From	To	Description
0	60	The minute time of OFF
256	316	The hour time of OFF
65536	65596	The minute time of ON
16777216	16777276	The hour time of ON

100

Set parameter 101-103 to default value.

From	To	Description
0	0	Reset the parameter 101-103

101

To set which reports need to be sent in Report group 1.

From	To	Description
4	4	Send Meter Report of voltage (V)
2	2	Send Meter Report of wattage (W)
2048	2048	Send Multi Channel Meter Report of energy (kWh) on Channel 1
512	512	Send Multi Channel Meter Report of wattage (W) on Channel 2
1048576	1048576	Send Multi Channel Meter Report of current (A) on Channel 2
524288	524288	Send Multi Channel Meter Report of current (A) on Channel 1
8	8	Send Meter Report of current (A)
131072	131072	Send Multi Channel Meter Report of voltage (V) on Channel 2
1	1	Send Meter Report of energy (kWh)
256	256	Send Multi Channel Meter Report of wattage (W) on Channel 1
4096	4096	Send Multi Channel Meter Report of energy (kWh) on Channel 2
65536	65536	Send Multi Channel Meter Report of voltage (V) on Channel 1

102

To set which reports need to be sent in Report group 2.

From	To	Description
1	1	Send Meter Report of energy (kWh)
2	2	Send Meter Report of wattage (W)
4	4	Send Meter Report of voltage (V)
8	8	Send Meter Report of current (A)
256	256	Send Multi Channel Meter Report of wattage (W) on Channel 1
512	512	Send Multi Channel Meter Report of wattage (W) on Channel 2
2048	2048	Send Multi Channel Meter Report of energy (kWh) on Channel 1
4096	4096	Send Multi Channel Meter Report of energy (kWh) on Channel 2
65536	65536	Send Multi Channel Meter Report of voltage (V) on Channel 1
131072	131072	Send Multi Channel Meter Report of voltage (V) on Channel 2
524288	524288	Send Multi Channel Meter Report of current (A) on Channel 1
1048576	1048576	Send Multi Channel Meter Report of current (A) on Channel 2

103

To set which reports need to be sent in Report group 3.

From	To	Description
1	1	Send Meter Report of voltage (V)
2	2	Send Meter Report of current (A)
4	4	Send Meter Report of wattage (W)
8	8	Send Meter Report of energy (kWh)
256	256	Send Multi Channel Meter Report of wattage (W) on Channel 1
512	512	Send Multi Channel Meter Report of wattage (W) on Channel 2
2048	2048	Send Multi Channel Meter Report of energy (kWh) on Channel 1
4096	4096	Send Multi Channel Meter Report of energy (kWh) on Channel 2
65536	65536	Send Multi Channel Meter Report of voltage (V) on Channel 1
131072	131072	Send Multi Channel Meter Report of voltage (V) on Channel 2
524288	524288	Send Multi Channel Meter Report of current (A) on Channel 1
1048576	1048576	Send Multi Channel Meter Report of current (A) on Channel 2

110

Set parameter 111-113 to default value.

From	To	Description
0	0	Reset the parameter 111-113

Set the threshold value of wattage.

Threshold change in wattage (in terms of percentage) to induce an automatic report.

From	To	Description
0	100	The thershold value range is 0 to 100

113

Set the interval of automatic report for Report group 2.

Set the interval of automatic report for Report group 3.

600

From	To	Description
1	2147483647	The range of interval time is 1 to 2147483647.

120

Configure the external switch mode for S1.

From	To	Description
0	0	Enter automatic identification mode
1	1	2-state switch mode
2	2	3 way switch mode
3	3	Momentary push button mode

121

Configure the external switch mode for S2.

From	To	Description
1	1	2-state switch mode
2	2	3 way switch mode
0	0	Enter automatic identification mode
3	3	Momentary push button mode

112

Set the interval of automatic report for Report group 2.

600

From	To	Description
1	2147483647	The range of interval time is 1 to 2147483647.

255

Reset the Dual In-Wall Switch

Reset the Dual In-Wall Switch to factory default.

From	To	Description
0	0	Reset all configuration parameters to factory default setting
1431655765	1431655765	Reset to factory default setting and removed from the z-wave network

Overheat protection.

Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃.

From	To	Description
0	0	Disable
1	1	Enable

Current Overload Protection.

Output Load will be turned off automatically after 30 seconds and if the current overrun 10.5A.

From	To	Description
0	0	Disable
1	1	Enable

To set which notification would be sent to the associated nodes in association group 4

To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads.

From	To	Description
0	0	Send Nothing
1	1	Send Basic Set CC

Configure the state of LED when it is in 3 modes

Configure the state of LED when it is in 3 modes (Energy mode, Momentary indicate mode, Night light mode)

From	To	Description
2	2	Night light mode. The LED will remain ON state.
0	0	Energy mode. The LED will follow the status (on/off).
1	1	Momentary indicate mode. When the state of Switch’s load changed, the LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action.

Set the threshold value of wattage.

Threshold change in wattage (in terms of wattage) to induce an automatic report.

From	To	Description
0	60000	The thershold value range is 0 to 60000

111

Set the interval of automatic report for Report group 1.

From	To	Description
1	2147483647	The range of interval time is 1 to 2147483647.

252

Lock/unlock configuration parameters

Lock/unlock configuration parameters.

From	To	Description
0	0	Unlock
1	1	Lock

Texts

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes
