Product Recognition | |
|---|
Certification Number | ZC14-25010491 |
|---|

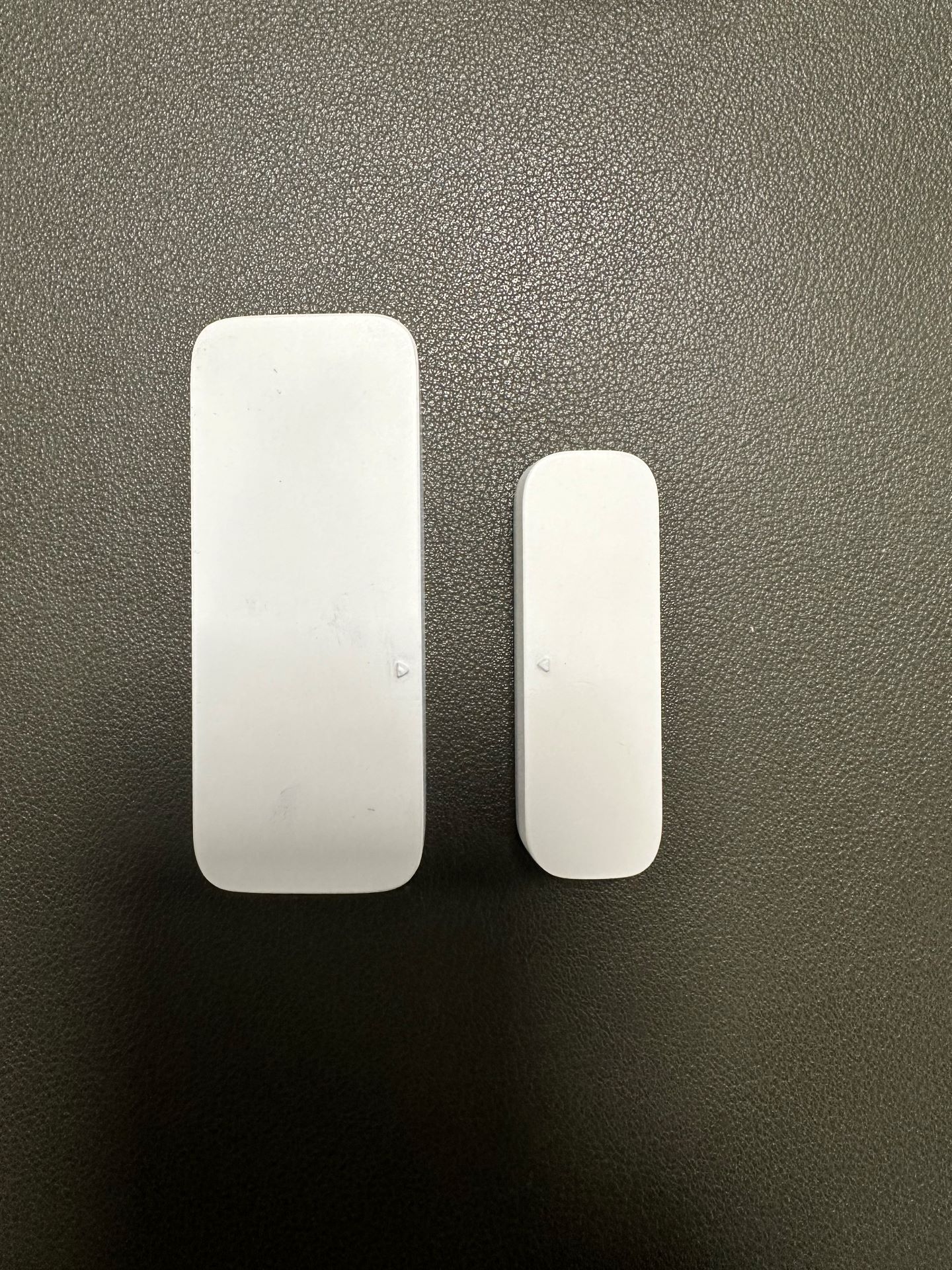

Name | DWC sensor G3 |
|---|
Short Description | The Z-Wave door window sensor is designed for use with scenes in home automation and security systems. |
|---|
Long Description | The Z-Wave door window sensor is designed for use with scenes in home automation and security systems, and it lets you know when door or windows is opened and can trigger different actions in response to that open action (or close action). |
|---|
Brand | Leedarson IoT |
|---|
Product Identifier | ZW0301 |
|---|
Product Line | Security kit |
|---|
OEM Version | HW: 01 FW: 03.03:02.05 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.22.2 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Notification Sensor DT |
|---|
Role Type | ROLE_TYPE_END_NODE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0300 |
|---|
Product Type ID | 0x0301 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 2 | 5 | 0 | Basic Set | 0x7107 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Read-only | Size | Min Value | Max Value | Default Value |
|---|
1 | Sensor Status | Current status of Sensor | 1 | Yes | 1 | 0 | 0 | 0x00 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Page 7 | 1 | Classic Inclusion | Page 7:
iii. Remove the plastic sheet for isolating battery from battery cabinet.

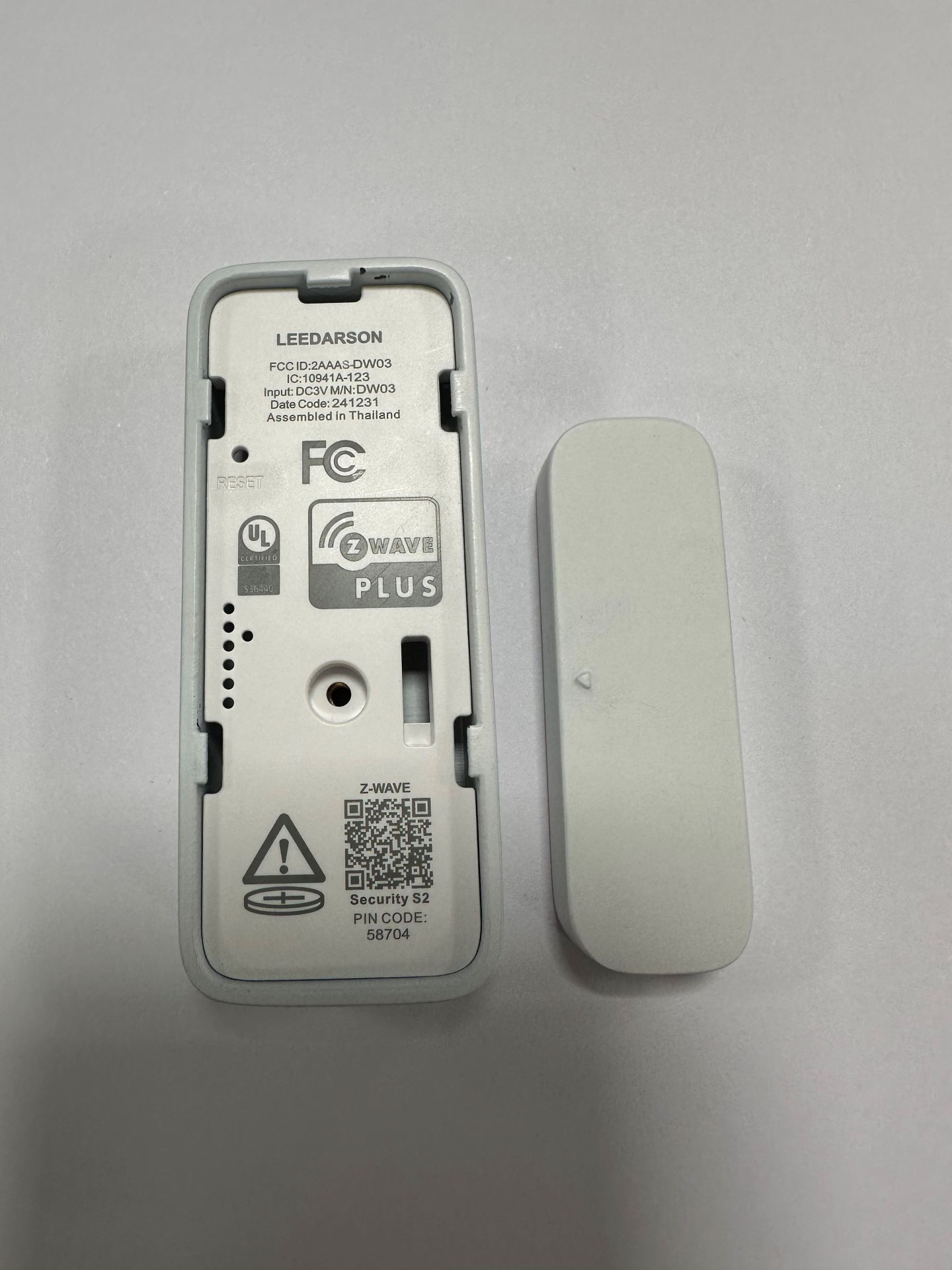

iv. Use a pin to reset the pinhole switch for 5 seconds to reset the sensor. The sensor will be in pairing status. This will cause a red LED will quick blink, Release the button, if Green LED solid for 3s, the reset is successful, and the device will return to the factory setting.
v. Short press Reset button, sensor starts pairing, Green LED quick blink until the pairing begins.
Add/inclusion: Green quick blink until time out.
Add/inclusion success: Green LED on 3s
Add/inclusion fail: Red LED on 3s and then turn off. User can short press the button again to start pairing again
vi. Stick the slim magnet and device onto the door/window, no further than 20 mm from the sensor, fix the device on the door/window by 3M tape. | 2 | Classic Exclusion | Page 8:
Keep pressing the reset key about 5 seconds, then the red LED indicator will start blinking quickly. Once release the key, and then release button Green LED on 3 seconds, the sensor running to factory reset mode to delete user data and restart to factory reset status. | 4 | Wake-Up Procedure | Page 6:
Sensor will wakes up periodically, interval time: 20 - 86400 seconds, default is 300 seconds. | 5 | Factory Reset Procedure | Page 4:
Hold 1-5 seconds: no action, LED off;
Hold more than 5 seconds: press and hold Reset button more than 5 seconds the Red LED quick blink ,and then release button Green LED on 3 seconds, the sensor running to factory reset mode to delete user data and restart to factory reset status; | 6 | Other Special Features | Page 3: LED/Button behavior |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Door state: Window/door is open | Access Control | Door state: Window/door is closed | Home Security | (Refer to parameters): State idle | Home Security | Cover status: Tampering, product cover removed |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Radio Range Z-Wave LR (m) | 400 |
|---|
