| Certification Number | ZC10-18096232 |
|---|

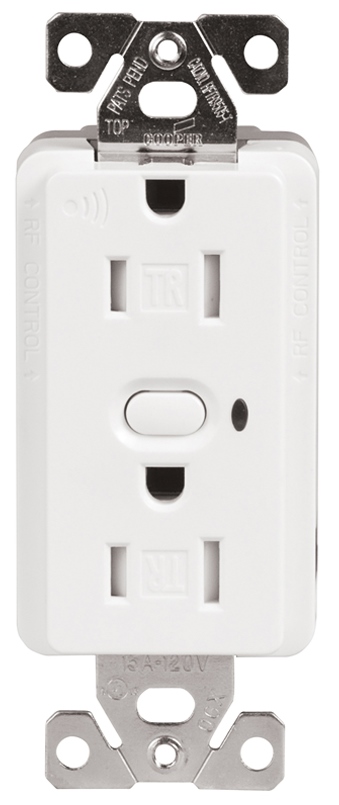

| Name | Eatons Z-Wave Plus Wireless Receptacle |
|---|
| Short Description | Eaton’s Z-Wave Plus Wireless Receptacle replaces regular receptacles to provide local and remote wireless ON/OFF control of a single outlet. |
|---|
| Long Description | Eaton’s Z-Wave Plus Wireless Receptacle replaces regular receptacles to provide local and remote wireless ON/OFF control of a single outlet. Each receptacle can be manually and remotely controlled by commands sent from your compatible Z-Wave certified controller.
Features & Benefits:
• Rated for up to ½ HP motor loads
• Provides Z-Wave control of one outlet leaving the other one for normal use
• Safety shutter system prevents insertion of foreign objects into receptacle
• Can be associated with up to 5 other devices
• Blue LED at center illuminates to indicate ON/OFF status
• Patented indicator system alerts if receptacle is not set up in the network
• Single pole and 3-Way control: Use with standard 3-Way switch or Z-Wave Plus Accessory RF9617
• Neutral is required for installation
• Supports Z-Wave Plus technology including S2 Security certification for advanced encryption & cybersecurity
• Voice and app based control when used with compatible Z-Wave controller |
|---|
| Brand | Eaton |
|---|
| Product Identifier | RFTR9605-T |
|---|
| OEM Version | HW: 0 FW: 2.00 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.71.03 |
|---|
| Library Type | SLAVE_ENHANCED_232_NOFLIRS_NOMR |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x001A |
|---|
| Product Type ID | 0x5244 |
|---|
| Product ID | 0x0505 |
|---|
| User Icon | 0x0700 |
|---|
| Installer Icon | 0x0700 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | | COMMAND_CLASS_NODE_NAMING | Node Naming | 0x77 | 1 | | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_ALARM | Alarm | 0x71 | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 | | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
| S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Electric Load Type | | Value |
|---|
| Incandescent | | Fluorescent | | MLV (Magnetic) | | ELV (Electronic) | | LED | | Dimmable LED | | Inductive (e.g. Motor) | | Dimmable Fluorescent | | Dimmable MLV (Magnetic) | | Dimmable ELV (Magnetic) |
| | Firmware Updatable | | Value |
|---|
| Updatable by Consumer by RF |
| | Switch Load Capacity Current | | | Neutral Wire Required | | | Switch Type | | Value |
|---|
| Push Button with Indicator |
| | Z-Wave Scene Type | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline | | 2 | 5 | 0 | ON/OFF |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | Delayed OFF Time | Press and Hold sequence for Delayed OFF. Turns off the receptacle after a set time interval. The default is 10 seconds with available values from 0 to 127 secs | 0 | 1 | 0 | 127 | 10 | | From | To | Description |
|---|
| 0 | 127 | Delayed OFF Time |
| | 2 | Panic ON Time | Time interval for receptacle to be ON when Panic Mode is enabled | 0 | 1 | 0 | 127 | 1 | | From | To | Description |
|---|
| 0 | 127 | Interval after which device will turn ON during panic mode |
| | 3 | Panic OFF Time | Time interval for receptacle to be ON when Panic Mode is enabled | 0 | 1 | 0 | 127 | 1 | | From | To | Description |
|---|
| 0 | 127 | Interval after which device will turn OFF during panic mode |
| | 5 | Power Up State | 1 = OFF 2 = ON 3 = Last State | 0 | 1 | 1 | 3 | 1 | | From | To | Description |
|---|
| 1 | 1 | Turn OFF when power is restored | | 2 | 2 | Turn ON when power is restored | | 3 | 3 | Return to last state when power is restored |
| | 6 | Panic Mode Enabled | 0=OFF 1=ON | 0 | 1 | 0 | 1 | 0 | | From | To | Description |
|---|
| 0 | 0 | Disable Panic Mode | | 1 | 1 | Enable Panic Mode |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 2 | Exclusion | 1. To exclude this device from a Z-Wave network, select the setting on your Z-Wave controller for exclusion
(Uninstall, Remove Device, Remove Node, Exclude Device, etc.).
2. Once your controller is in exclusion mode, press the device ON/OFF button one time to exclude it from the network. The LED will start blinking. | | 1 | Inclusion | 1. To include this device in a Z-Wave network, select the command on your Z Wave controller for inclusion (Install, Add Device,
Add Node, Include Device, etc.). Then press the device ON/OFF button one time to include it in the network.
2. Based on the controller, the controller may ask you to scan the QR code or manually enter 5 digit code under the QR code
to install the device as a secured device. You may find this QR code on the device or included in device packaging.
3. After the Device is added to the network, the blue indicator LED will stop blinking. This indicates the device is installed in the Z-Wave
network. | | 5 | Factory Reset | Please use this procedure only when the network primary controller is missing or otherwise inoperable
The device could be reset locally. This will cause the device to be excluded from its network and restore to factory default.
Before leaving the network the switch will send a notification to the controller indicating its departure from the Z-Wave network.
1. Turn the device ON.
2. Press and hold ON/OFF button for 20 second till the LED flashes for the third time.
3. Release the ON/OFF button.
4. LED will start flashing rapidly. Once the LED starts blinking slowly, that indicates the device is not part of the network. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
