| Product Recognition | |
|---|
| Certification Number | ZC10-16020001 |
|---|

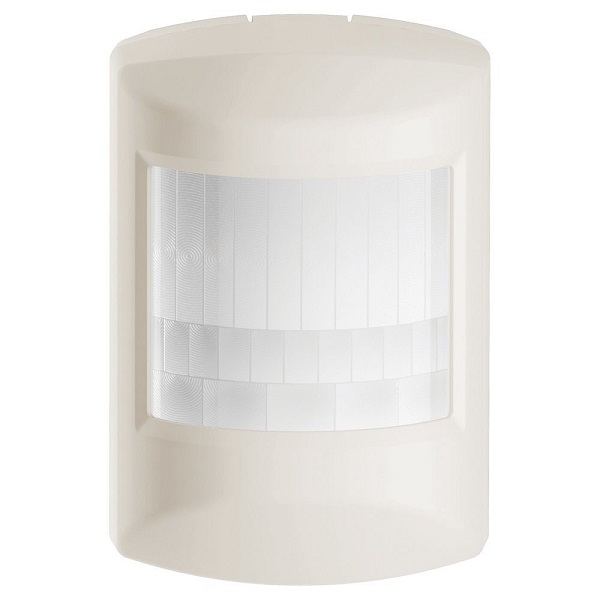

| Name | Ecolink Motion Detector |
|---|
| Short Description | The Ecolink Z-Wave Plus Pet Immune Motion Detector enabled device transmits upon detection of movement. The sensor sensitivity can be adjusted from small pet to medium sized pets. Additional settings enable to the Motion Detector to act as an occupancy sensor. |
|---|
| Long Description | • For indoor use only
• Operating frequency: 908.42 MHz
• Operating range: Up to 100 feet (30.5 meters) line-of-sight
• Operating temperature: 0˚C to 49˚C, 32˚F to 120˚F (ambient temperature)
• Detection radius: 39 feet (see detection region diagram)
• Detection angle: 45 degrees in either direction from the sensor’s center
• Battery type: 3V Lithium CR123A
• Battery life: approximately 3 years
• Passive Infrared (PIR) based technology |
|---|
| Brand | Ecolink Intelligent Technology |
|---|
| Product Identifier | PIRZWAVE2.5-ECO |
|---|
| OEM Version | 2 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x014A |
|---|
| Product Type ID | 0x0004 |
|---|
| Product ID | 0x0001 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | United States of America |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline | | 2 | 5 | 0 | Used for the purpose of communicating directly to other Z-Wave products |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | Once the controller is in inclusion mode, simply remove the battery isolation tab, OR insert the battery, OR press the small button on the back of the Motion Detector. | | 2 | Exclusion | Once the controller is in exclusion mode, simply remove the battery isolation tab, OR insert the battery, OR press the small button on the back of the Motion Detector. | | 5 | Factory Reset | To restore this sensor to factory default settings, follow the instructions for product exclusion which will reset the sensor upon completion of the process. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | | 4 | Device Wake-Up | If the sensor is asleep, simply remove the cover to wake up the sensor for configuration. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
