Product Recognition | |
|---|
Certification Number | ZC10-18116313 |
|---|

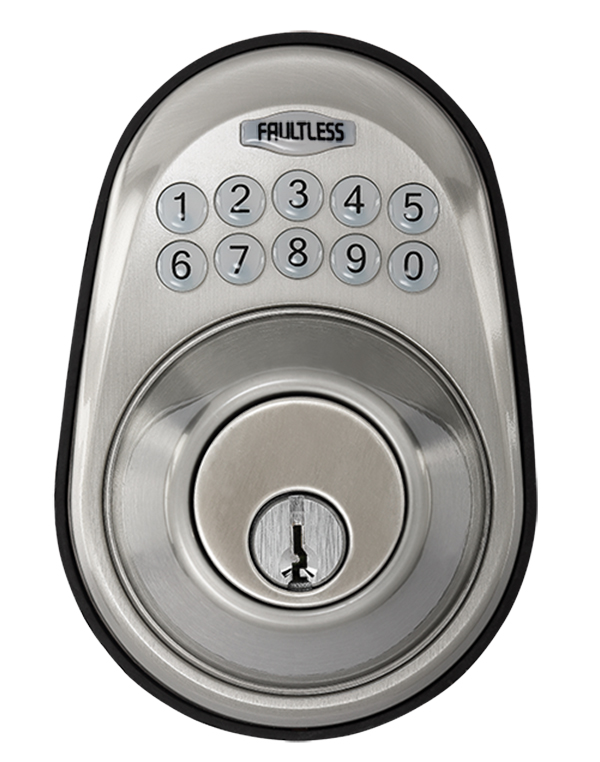

Name | Electronic Z-Wave Deadbolt |
|---|
Short Description | an electronic deadbolt with Z-Wave |
|---|
Long Description | Great Convenience
。Connect your Z-Wave smart home system and operate from anywhere
。Holds up to 10 user codes
。Holds up to 4 single-entry codes
。Vacation mode (deactivates all user codes temporarily)
。Auto-lock with adjustable delay (10 - 99 seconds)
。Back-up mechanical keyway
Uncompromised Security
。ANSI Grade 3 quality – deadbolt operates over 100,000 times
。ANSI A156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures
。4-digit random guiding code prevents code-probing
。Touch screen is temporarily disabled after 4 consecutive incorrect entries |
|---|
Brand | Faultless |
|---|
Product Identifier | A32-WG014-S2 |
|---|
OEM Version | HW: 255 FW: 3.01:01.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0262 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0004 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_DOOR_LOCK | Door Lock | 0x62 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | Value |
|---|
Access Control | Power Management |
| Battery Quantity | | Door Lock Type | | Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | volume on/off | Value 0x00 =off 0x01 =on | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0x00 =off 0x01 =on |
| 5 | auto lock time 10-99 | Value 0X0A~0X63= 10~99 Seconds | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
10 | 99 | 10~99 Seconds |
| 2 | vacation mode on/off | Value 0x00 =off 0x01 =on | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | 0x00 =off 0x01 =on |
| 4 | auto-lock on/off | Value 0x00 =off 0x01 =on | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | 0x00 =off 0x01 =on |
| 1 | Guiding code on/off | Value 0x00 =off 0x01 =on | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0x00 =off 0x01 =on |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1.Press [SET] for 1 second.
2.Programming Code(6 digits)
3.Press the buttons lock-button 9 0 lock-button
4.Exclude successfully (beep x 1) | 1 | Inclusion | 1.Press [SET] for 1 second.
2.Programming Code(6 digits)
3.Press the buttons lock-button 9 0 lock-button
4.Include successfully (beep x 1) | 5 | Factory Reset | 1. Remove one battery
2. Press and hold SET button while inserting the battery back.
Hold the set button until long beep has finished.
3. Restoring the lock to factory settings will remove its connection to your network and clear all devices from its association group.
The reset procedure should only be used when the primary controller is missing or inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
