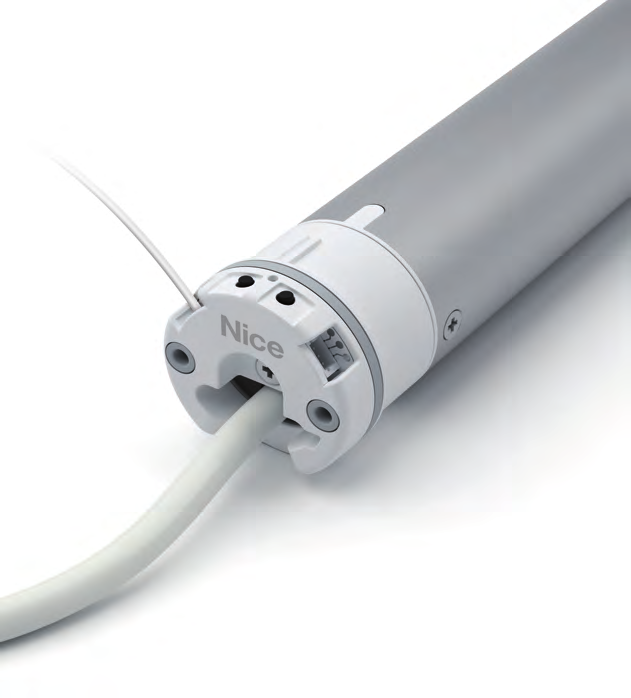

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_SCENE_ACTUATOR_CONF

Scene Actuator Conf

0x2C

1

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Switch Multilevel V4

0x26

4

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_BASIC_V2

Basic V2

0x20

2

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_SCENE_ACTIVATION

Scene Activation

0x2B

1

COMMAND_CLASS_CONFIGURATION_V2

Configuration V2

0x70

2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Switch Multilevel V4

0x26

4

COMMAND_CLASS_BASIC_V2

Basic V2

0x20

2

COMMAND_CLASS_SCENE_ACTIVATION

Scene Activation

0x2B

1

COMMAND_CLASS_CONFIGURATION_V2

Configuration V2

0x70

2

Manual_Primary_Lang

Era_Inn_Edge_S_AC_ZW_BD_Fibaro_Product Manual_21-04-2020.pdf

Manual_English

Era_Inn_Edge_S_AC_ZW_BD_Fibaro_Product Manual_21-04-2020.pdf

Adv_Manual

Era_Inn_Edge_S_AC_ZW_BD Advanced Information Product Manual.pdf

Z-Wave Scene Type

Firmware Updatable

Window Covering Control Features

1

5

0

Lifeline

0x0001

This is the Lifeline Group. Device Reset Locally Notification: Issued when Factory Reset is performed. Notification Report[Type=0x04;Event=0x02]: Issued when curtain motor is overheat. Notification Report[Type=0x04;Event=0x00]: Issued when curtain motor temperature returns to normal. Notification Report[Type=0x08;Event=0x06]: Issued when curtain motor is over-current. Notification Report[Type=0x08;Event=0x00]: Issued when curtain motor current returns to normal. Notification Report[Type=0x09;Event=0x03;Event Parameter=0x01]: Issued when over torque error detected. Notification Report[Type=0x09;Event=0x03;Event Parameter=0x02]: Issued when obstacle error detected. Notification Report[Type=0x09;Event=0x03;Event Parameter=0x03]: Issued when under voltage error detected. Notification Report[Type=0x09;Event=0x03;Event Parameter=0x04]: Issued when unresolvable error detected. Notification Report[Type=0x09;Event=0x03;Event Parameter=0x05]: Issued when UART communication error detected. Notification Report[Type=0x09;Event=0x00;Event Parameter=Value*]: Issued when system hardware failure event returns to normal. Value* is equal to the corresponding failure code. Multilevel Switch Report: Issued when curtain position changed. Configuration Report: Issued if configuration parameters changed on an event from installer tool or if change of configuration parameter caused a change in the value of another one.

2

5

0

Retransmit

0x0000

Retransmit a Basic Set, Multilevel Switch Set, Multilevel Switch Start Level Change, Multilevel Switch Stop Level Change or Scene Activate Set to the nodes associated.

3

5

0

Configuration

0x0000

If node receives Configuration Bulk Set or Configuration Set (parameter MUST be in the range from 39 to 43), it will send Configuration Bulk Set with Handshake=0 or Configuration Set to nodes associated.

43

Parameter 6

This parameter allows to set sensitivity level of obstacle detection.

1

4

0

4

0

45

Parameter 7

This parameter allows to check minimum, maximum and default time of move(read-only). Note: If value equals to 0x00000000, it means the High or Low Limit has not been set.

1

4

0

2147483647

0

70

Parameter 8

Set a number of moves to start identification. Note: When wiggle ends, an unsolicited report to Lifeline destination with t he value 0 will be sent. If module receives control command in CC Multilevel Switch/Basic automatically stops the wiggle.

1

2

0

255

0

165

Parameter 9

This parameter allows to check Motor Hardware Reversion and Sub Revision(read-only).

1

4

0

2147483647

0

166

Parameter 10

This parameter allows to check Motor Factory Data: Gearbox Ratio and Motor Nominal Speed(read-only).

1

4

0

2147483647

0

167

Parameter 11

This parameter allows to check Motor Factory Data: Motor Minimum Speed, Motor Maximum Speed and Wiggle Speed(read-only).

1

4

0

2147483647

0

168

Parameter 12

Get Motor Factory Data: Obstacle Detection Max Level, Battery Motor and Soft Start/Stop Max(read-only).

1

4

0

2147483647

0

255

Parameter 13

Reset Configuration Parameter 39,41,42,43 to factory setting OR Factory Reset the product.

1

4

0

1431655765

0

2

Classic Exclusion

1. Make sure the product is powered. 2. Set your main controller into its 'remove product' mode. Refer to its manual if you are unsure of how to perform. 3. Quickly, triple click any one of the buttons. 4. Wait for the removing process to end. 5. Confirm the removing result. Successful removing will be confirmed by the Z-Wave controller’s message or LED status. If removing is successful, Green LED will become flash slowly. If its Red LED becomes solid for 3s and then off, it indicates removing is unsuccessful. Repeat the above steps or contact us for further support if needed.

8

Where to find S2 DSK on product

QR/PIN code can be found on the product.

1

Classic Inclusion

1. Power the product. 2. Set your main controller into its 'add product' mode. Refer to its manual if you are unsure of how to perform. 3. Quickly, triple click any one of the buttons. Green LED will flash quickly which indicates entering inclusion mode, and Node Info will be issued for adding. 4. If your controller supports S2 security, and you want to add the product into S2 Authenticated network, please scan the QR code or enter the PIN code (the underlined 5-digits of the DSK) when prompted. [IMPORTANT] QR/PIN code can be found on the product. A full DSK string can be found on the packaging. 5. Wait for the adding process to end. 6. Confirm the adding result. Successful adding will be confirmed by the Z-Wave controller’s message or LED status. If adding is successful,Green LED will become solid for 3s and then off. If its Red LED become solid for 3s and then Green LED flash slowly, it indicates adding is unsuccessful. The product will auto-reset and then activate SmartStart. Repeat the above steps or contact us for further support if needed. Note: The classic manually inclusion will exit if triple click any one of buttons during the adding process. Its Red LED will become solid for 3s and then Green LED flashes slowly. The product will auto-reset and activate SmartStart

5

Factory Reset Procedure

Reset procedure allows to restore the product back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. 1. Make sure the product is powered. 2. Press and hold any one of the buttons for at least 20s, and then Factory Reset is performed. The product will issue a Device Reset Locally Command via its Lifeline to notify the Lifeline destination that the product has been reset to its factory default state. And it will perform the reset operation regardless of whether or not the delivery of the Device Reset Locally Notification is successful. 3. Pay attention to the color change of the indicator light. After few seconds the product will be reset and restarted, which is signaled with the slowly flash Green LED indicator color.

Heat Alarm

Heat sensor status: Overheat detected

Power Management

Over-current status: Over-current detected

System

HW status: System hardware failure (manufacturer proprietary failure code provided)
