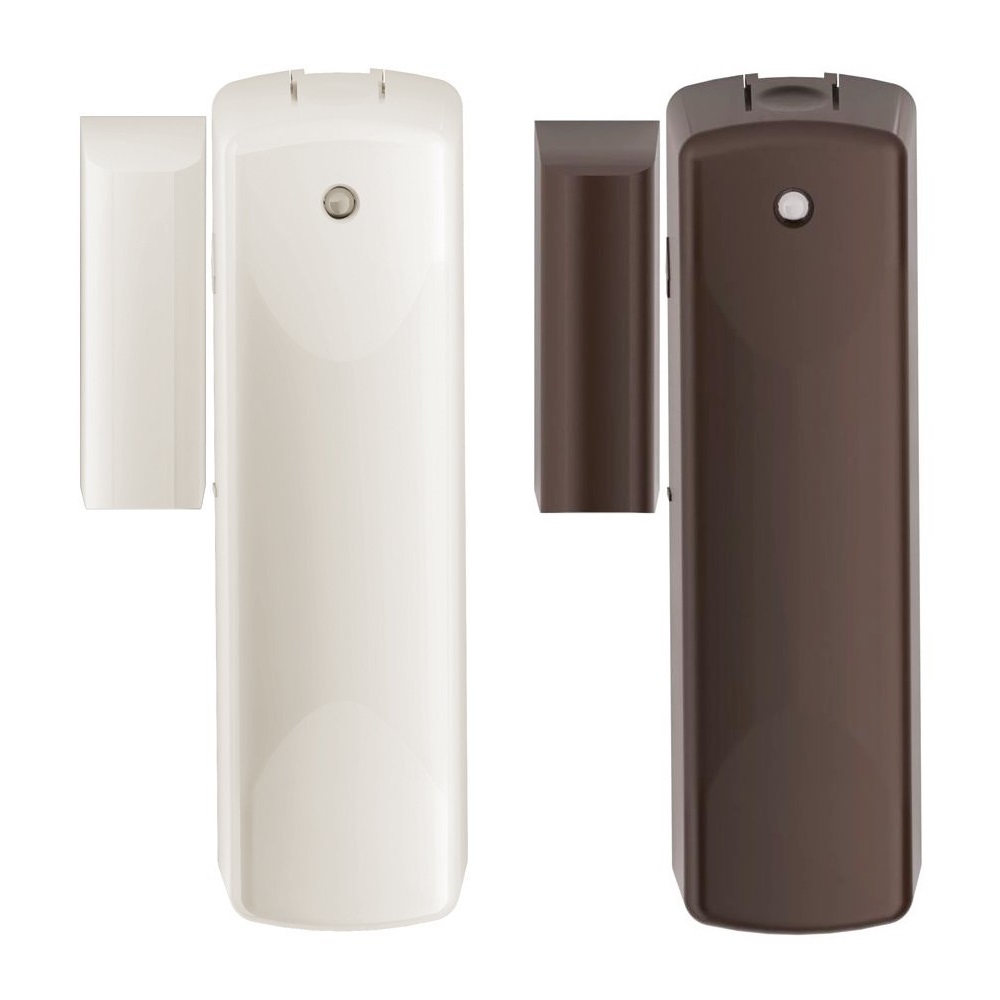

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SENSOR_BINARY_V2

Sensor Binary V2

0x30

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_NOTIFICATION_V5

Notification V5

0x71

5

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product or Owner's Manual

Sensors

Supported Notification Types

Battery Quantity

Battery Type

1

5

0

This sensor has two Association groups of 5 nodes each. Group one is a lifeline group who will receive unsolicited messages relating to door/window open/close notifications, case tampering notifications, low-battery notifications, and sensor binary reports.

2

5

0

Group 2 is intended for devices that are to be controlled i.e. turned on or off (on only by default) with a Basic Set. On inclusion the controller should put its node ID in group 1 but not group 2.

1

Sending Basic Sets to Association group 2

Parameter 1 configures the sensor to send or not send Basic Set commands of 0x00 to nodes in Association group 2 turning the devices off when the sensor is in a restored state i.e. the door is closed. By default the sensor does NOT send Basic Set commands of 0x00.

0

1

0

0

0

2

Sending sensor binary report

Parameter 2 configures the sensor to either to send or not to send Sensor Binary Report commands to Association Group 1 when the sensor is faulted and restored. If the controller is fully compatible with the Notification Command Class thereby making the Sensor Binary Reports redundant, the controller can disable the Sensor Binary Report Commands completely.

0

1

0

0

0

6

Additional Special Features

Includes external contacts for wiring.

5

Factory Reset

To restore this sensor to factory default settings, follow the instructions in this manual to exclude this sensor from the Z-Wave network. Upon completion of removal from the network the sensor will restore itself to factory default settings automatically. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.

2

Exclusion

Exclusion mode on the senor is initiated following the same exact procedure as inclusion.

4

Device Wake-Up

The sensor will wake up every so often and when the case is closed to send a Wake-Up Notification to allow the life line master node controller that the sensor is now available for any queued messages that the controller may have for the sensor. The time between Wake-Up Notifications can be configured with the Wake-Up Notification command class to be between 1 hour and 1 week with interval steps of 200 seconds.

1

Inclusion

The sensor must be added to a Z-Wave network prior to use. To include the sensor in a network both the sensor and the network controller must be in inclusion mode at the same time. Refer to the instructions provided by the manufacturer of your specific controller for details on initiating the controller’s inclusion mode. STEP ONE Start by placing the controller into inclusion mode. STEP TWO Activate inclusion mode for the sensor by removing the plastic pull-tab from the back of the sensor. When the inclusion process is complete, the LED on the sensor will be solid blue, then go out. STEP THREE Test the sensor. Place the magnet next to the sensor to represent a closed position (see Installation section to see where to position the magnet). If the LED flashes ONE TIME, it is successfully communicating on your Zwave network. If the LED on the sensor flashes slow and steady for 5 seconds, you need to repeat the inclusion process.

Home Security

(Refer to parameters): State idle

General purpose
