Product Recognition
Certification Number	ZC10-16105291

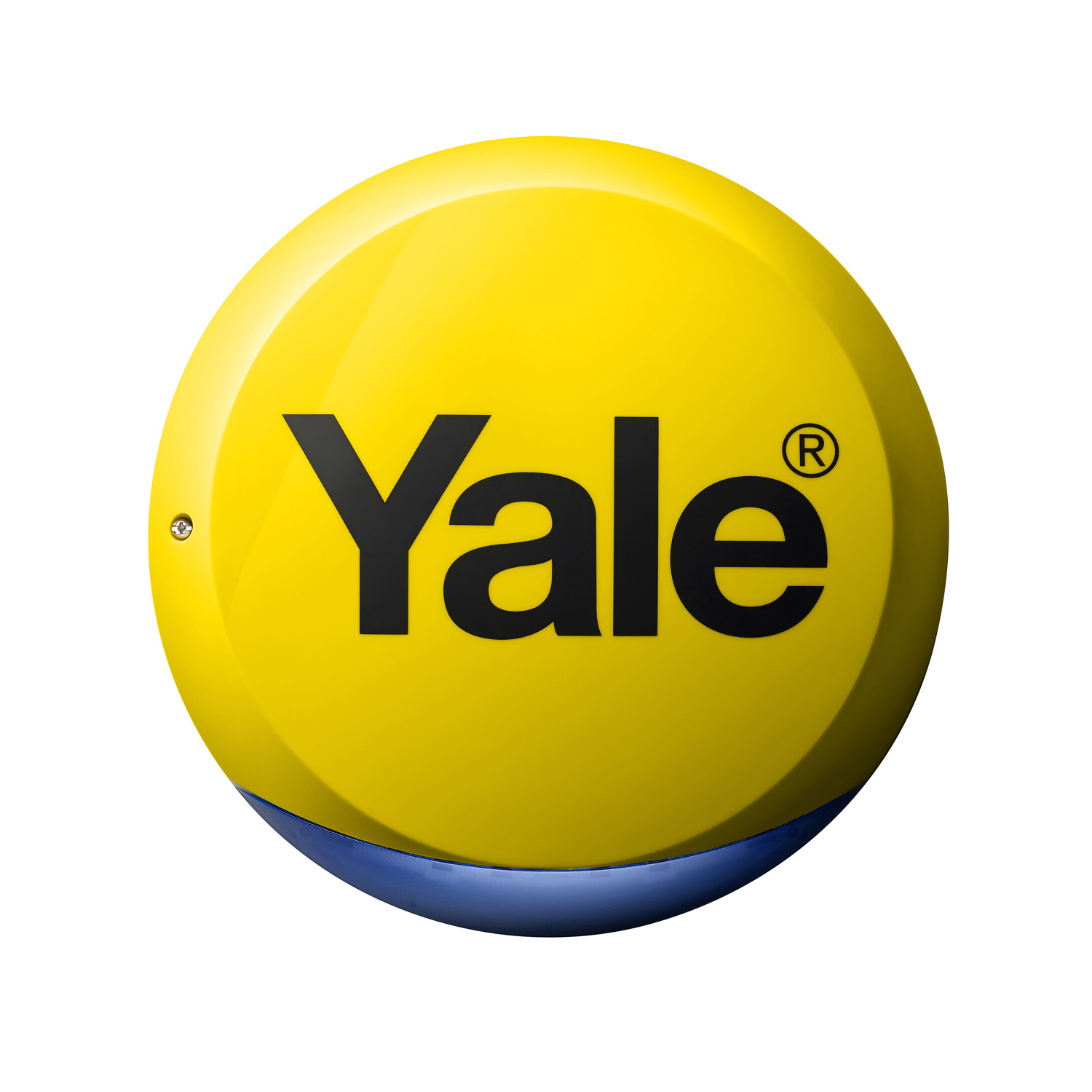

Name	External siren
Short Description	The Yale External siren sounds a 104dB alarm and flashing LED strobe if the alarm is triggered.
Long Description	SR-BX-ZW is a Z-Wave External Siren that can connect to compatible Z-Wave enabled networks. It is capable of sounding an alarm upon receiving an alarm signal from the controller in the Z-Wave network when an alarm is activated. When triggered, the Siren will sound and the LED strobe will flash to attract attention.
Brand	Yale
Product Identifier	SR-BX-ZW
OEM Version	HW: 255 FW: 1.04
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	Siren
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0129
Product Type ID	0x6F01
Product ID	0x0001
User Icon	0x0F00
Installer Icon	0x0F00
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Security Add-Ons
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual YSL_External_Siren_SR-BX-ZW_1C.pdf
Features	Feature Values Battery Quantity Value 4 Battery Type Value D size Firmware Updatable Value Updatable by Professional/Technician IP (Ingress Protection) Rated Outdoor Use
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Tamper Alarm Report 1 1 0 Z-Wave Plus Lifeline 3 5 0 Power Adaptor(AC) Failure Report
Texts	ID Description Value 2 Exclusion REMOVING THE SIREN The Siren must be removed from any existing Z-Wave network before being added into a new Z-Wave network. There are two methods available to remove a device. Removing Mode • Put the existing Z-Wave controller into Removing Mode (please refer to the Z-Wave controller manual). • Within 1.5 seconds, press the learn button 3 times and the Siren will be removed from the existing Z-Wave network. • The Siren is now ready to be added to a new Z-Wave controller. 5 Factory Reset Factory Reset (Only use this when the existing Z-Wave controller is missing or inoperable). • Turn off battery power switch and disconnect 9V power adaptor (if present). • Press and hold the learn button. • While holding the learn button, power on the Siren (power switch ON and reconnect the 9V power adaptor). Keep holding for 10 seconds to complete the factory reset. • Please note that the existing Z-Wave controller will still retain the Siren’s Z-Wave setting. Please refer to the Z-Wave controller manual on remove procedures. Only use this when the existing Z-Wave controller is missing or inoperable. • The Siren is now ready to be added to a new Z-Wave controller. 1 Inclusion ADDING THE SIREN This product can be added and operate in any compatible Z-Wave network. All non-battery operated nodes within the network will act as repeaters, regardless of vendor, to increase reliability of the network. Adding steps: • Turn on the battery power switch to activate the pre-inserted batteries. • The Siren will emit a 2-tone beep. • Put the Z-Wave controller into adding or Learning mode (please refer to the Z-Wave controller manual). • Within 1.5 seconds, press the Siren learn button 3 times. • Refer to the operation manual of the Z-Wave controller to complete the learn-in process. • If the Siren has already been added (learnt) into another Z-Wave controller, or if the Siren is unable to be learnt into the current Z-Wave controller, please remove it first (see Removing the siren below) before attempting to add it into the current Z-Wave controller.
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
