| Product Recognition | |
|---|
| Certification Number | ZC10-15020001 |
|---|

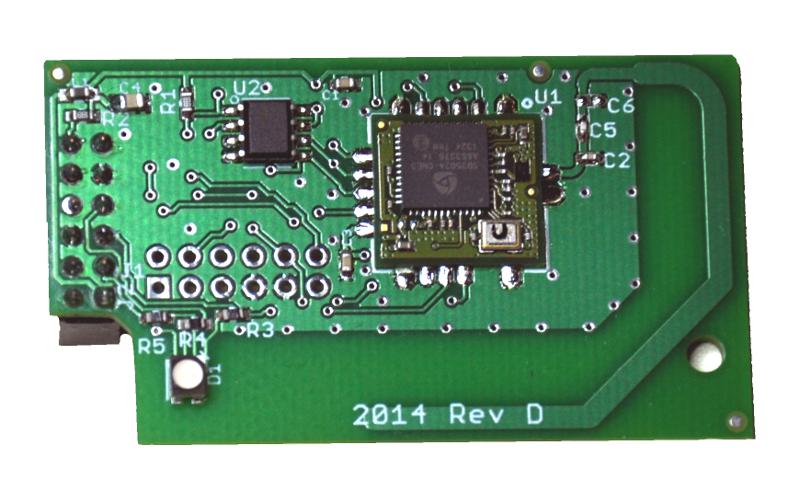

| Name | EZZee |
|---|
| Short Description | Fifth generation Z-Wave Plus Interface Board for the Raspberry Pi or embedded computer. |
|---|
| Long Description | The EZZee Z-Wave Interface Board provides a simple to use and easy to integrate Z-Wave interface for any embedded computer. Specifically designed for the Raspberry Pi, EZZee uses a UART interface available on most embedded CPUs. The Sigma Designs SerialAPI provides a standard software interface to communicate with any Z-Wave device on the Z-Wave network. |
|---|
| Brand | Express Controls LLC |
|---|
| Product Identifier | EZZeeUS |
|---|
| OEM Version | HW: 13 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | CONTROLLER_STATIC |
|---|
| Device Type | Central Controller |
|---|
| Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
| Manufacturer ID | 0x001E |
|---|
| Product Type ID | 0x0005 |
|---|
| Product ID | 0x0002 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Controllers, Computer Controller Interfaces |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 23 | Controller Inclusion | Use the SerialAPI | | 24 | Controller Exclusion | Use the SerialAPI | | 6 | Additional Special Features | RGB LED controlled by pins of the Raspberry Pi connector | | 3 | Learn Mode (adding another controller) | Use the SerialAPI | | 5 | Factory Reset | Use the SerialAPI |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
