Product Recognition
Certification Number	ZC12-20060074

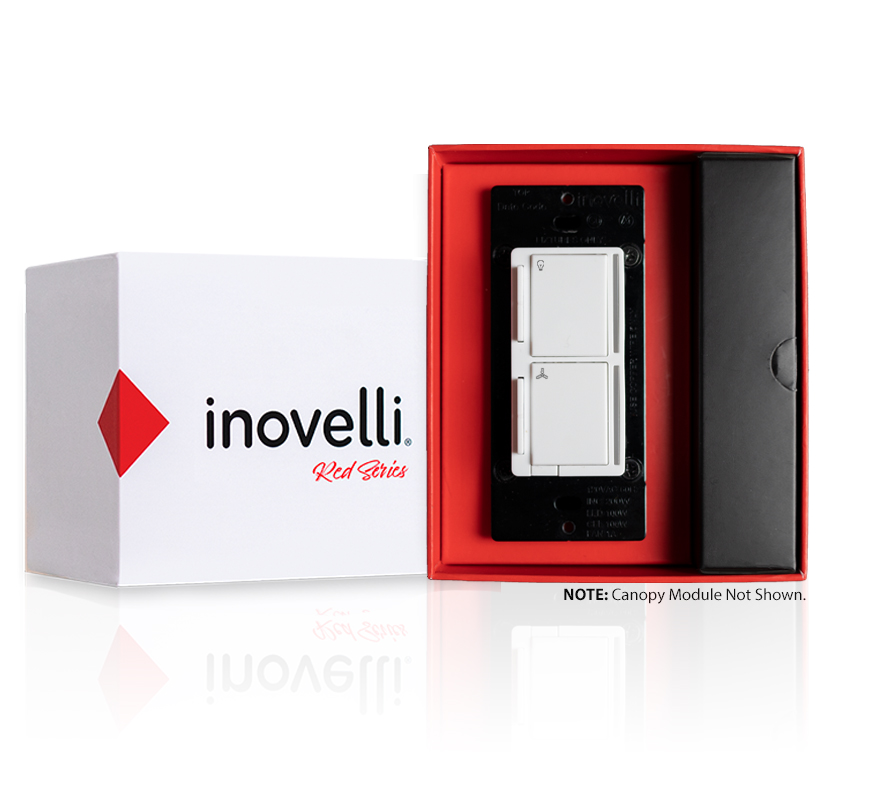

Name	Fan & Light Switch
Short Description	The Inovelli Fan/Light Switch controls both your fan motor and lights all from one switch. Includes the most advanced technology to date from Z-Wave (700 Series) and state-of-the-art firmware expected from Inovelli.

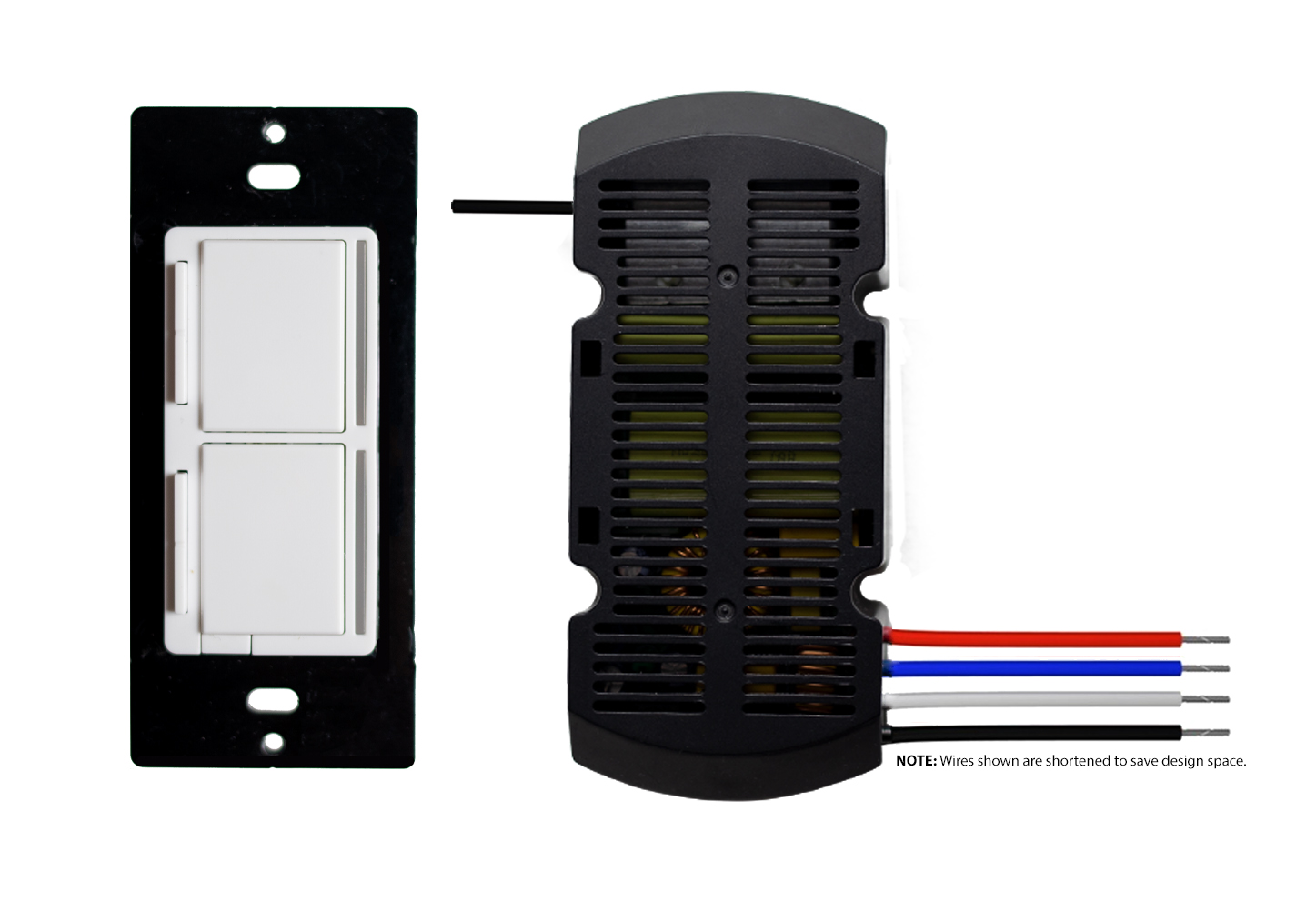

Long Description	The Inovelli Red Series Fan/Light Switch is a 700 Series Z-Wave in-wall fan + light switch that controls both your fan motor and its attached LED, CFL, & Incandescent bulbs which can be highly customized to your liking at the switch itself with our unique config buttons and advanced firmware. In addition, the Red Series comes with advanced features such as scene support, power monitoring, notifications, local protection, etc. This is the first of its kind that allows homes that only have one wire coming from the fan to the light switch and uses both a light switch and canopy module. Inspired and worked on by our wonderful community.
Brand	Inovelli
Product Identifier	LZW36
Product Line	In-Wall Switches
OEM Version	HW: 1 FW: 1.27
Hardware Platform	ZGM130
Z-Wave Version	7.13.4
Library Type	SLAVE_ENHANCED_232
Device Type	Multilevel Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x031E
Product Type ID	0x000E
Product ID	0x0001
User Icon	0x1C00
Installer Icon	0x1C00
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Energy Meters, All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices, Lighting Accessories, Motor Control, Fan Control
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_PROTECTION_V2 Protection V2 0x75 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta-Data V5 0x7A 5 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information V3 0x59 3 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product Manual in English Inovelli Fan Light Switch Manual LZW36.pdf
Features	Feature Values Z-Wave Scene Type Value Central Scene Electric Load Type Value Dimmable LED Inductive (e.g. Motor) Firmware Updatable Value Updatable by Manufacturer Neutral Wire Required Color Value White Switch Type Value Decorator Paddle Push
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile Description 7 5 2 Switch Multilevel Start/Stop - Fan 0x2004 Sends start / stop level change to associated devices. (1. Hold Up button sends SW_MULTILEVEL_START_LEVEL_CHANGE (Up) 2: Hold Down button sends SW_MULTILEVEL_START_LEVEL_CHANGE (Down) 3. Release Either button sends SW_MULTILEVEL_STOP_LEVEL_CHANGE 1 5 0 Lifeline 0x0001 Lifeline group. Members of this group will receive unsolicited messages related to the status of the switch. 2 5 1 On/Off Control - Light 0x2001 Sends On & Off commands to associated devices. (1. Single press UP button sends BasicSet (0xFF) and 2. Single press Down sends BasicSet (0x00) 3 5 1 Switch Multilevel Set - Light 0x2001 Sends set level commands to associated devices when switch is pressed. (1. Hold & Release Up or Down button sends SwitchMultiLevelSet which keeps associated devices in sync with this device. 2. Single press Up button sends SwitchMultiLevelSet(0xFF) and 4. Single press Down button sends SwitchMultiLevelSet(0x00) 4 5 1 Switch Multilevel Start/Stop - Light 0x2002 Sends start / stop level change to associated devices. (1. Hold Up button sends SW_MULTILEVEL_START_LEVEL_CHANGE (Up) 2: Hold Down button sends SW_MULTILEVEL_START_LEVEL_CHANGE (Down) 3. Release Either button sends SW_MULTILEVEL_STOP_LEVEL_CHANGE 5 5 2 On/Off Control - Fan 0x2003 Sends On & Off commands to associated devices. (1. Single press UP button sends BasicSet (0xFF) and 2. Single press Down sends BasicSet (0x00) 6 5 5 Switch Multilevel Set - Fan 0x2003 Sends set level commands to associated devices when switch is pressed. (1. Hold & Release Up or Down button sends SwitchMultiLevelSet which keeps associated devices in sync with this device. 2. Single press Up button sends SwitchMultiLevelSet(0xFF) and 4. Single press Down button sends SwitchMultiLevelSet(0x00)
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Dimming Speed - Light This changes the speed in which the attached light dims up or down. A setting of 0 should turn the light immediately on or off (almost like an on/off switch). Increasing the value should slow down the transition speed. 2 1 0 100 3 From To Description 0 100 Speed at which light dims up or down (increments) 2 Dimming Speed (From Switch) - Light This changes the speed in which the attached light dims up or down when controlled from the physical switch. A setting of 0 should turn the light immediately on or off (almost like an on/off switch). Increasing the value should slow down the transition speed. A setting of 99 should keep this in sync with parameter 1. 2 1 0 99 99 From To Description 0 98 Speed at which light dims up and down (from switch) 99 99 Sync to Parameter 1 3 Ramp Rate This changes the speed in which the attached light turns on or off. For example, when a user sends the switch a basicSet(value: 0xFF) or basicSet(value: 0x00), this is the speed in which those actions take place. A setting of 0 should turn the light immediately on or off (almost like an on/off switch). Increasing the value should slow down the transition speed. A setting of 99 should keep this in sync with parameter 1. 2 1 0 99 99 From To Description 1 98 Speed at which the light turns on and off 99 99 Sync to Parameter 1 4 Ramp Rate (From Switch) This changes the speed in which the attached light turns on or off from the physical switch. For example, when a user presses the up or down button, this is the speed in which those actions take place. A setting of 0 should turn the light immediately on or off (almost like an on/off switch). Increasing the value should slow down the transition speed. A setting of 99 should keep this in sync with parameter 1. 2 1 0 99 99 From To Description 0 98 Speed at which the light turns on and off (from switch) 99 99 Sync to Parameter 1 5 Minimum Level – Light The minimum level that the dimmer allows the bulb to be dimmed to. Useful when the user has a bulb that does not turn on at a lower level. 2 1 1 45 1 From To Description 1 45 Minimum % level the bulb can be dimmed down to 6 Maximum Level – Light The maximum level that the dimmer allows the bulb to be dimmed to. Useful when the user has an LED bulb that reaches its maximum level before the dimmer value of 99. 2 1 55 99 99 From To Description 55 99 Maximum % level the bulb can be dimmed up to 7 Minimum Level – Fan The minimum level that the dimmer allows the fan to be dimmed to. Useful when the user has a fan that does not turn on at a lower level. 2 1 1 45 1 From To Description 1 45 Minimum % level the fan can be dimmed down to 8 Name: Maximum Level – Fan The maximum level that the dimmer allows the fan to be dimmed to. 2 1 55 99 99 From To Description 55 99 Maximum % level the fan can be dimmed up to 9 Invert Switch Inverts the switch (Tap Down = On, Tap Up = Off). 0 = Disabled, 1 = Enabled 2 1 0 1 0 From To Description 0 0 Disabled 1 1 Enabled 10 Auto Off Timer – Light Automatically turns the light off after this many seconds. When the switch is turned on a timer is started that is the duration of this setting. When the timer expires, the switch is turned off. 2 2 0 32767 0 From To Description 0 0 Disabled 1 32767 Seconds 11 Auto Off Timer – Fan Automatically turns the fan off after this many seconds. When the fan is turned on a timer is started that is the duration of this setting. When the timer expires, the fan is turned off. 2 2 0 32767 0 From To Description 0 0 Disabled 1 32767 Seconds 17 State After Power Restored – Fan The state the switch should return to once power is restored after power failure. 0 = off, 1-99 = level, 100=previous. 2 1 0 100 0 From To Description 0 0 Off 1 99 Turns on to a certain percentage (1-99%) 100 100 Returns to previous state the fan was in prior to power outage 23 Default LED Strip Intensity (When OFF) – Fan This is the intensity of the Fan LED strip when the switch is off. This is useful for users to see the light switch location when the lights are off. 2 1 0 9 1 From To Description 0 9 Intensity of the Fan LED strip (when fan is off) 24 LED Strip Effect – Light This will allow you to add some sweet effects to your LED Bar (i.e.: pulse, chase, solid, etc). Byte 1 = Color, Byte 2 = Brightness Level, Byte 3 = Effect, Byte 4 = Duration. *Please see website for further instructions on how to set this up 2 4 0 4294967295 0 From To Description 0 4294967295 Please see website instructions to set this up: https://nathanfiscus.github.io/inovelli-notification-calc/ 25 LED Strip Effect – Fan This will allow you to add some sweet effects to your LED Bar (i.e.: pulse, chase, solid, etc). Byte 1 = Color, Byte 2 = Brightness Level, Byte 3 = Effect, Byte 4 = Duration. *Please see website for further instructions on how to set this up 2 4 0 4294967295 0 From To Description 0 4294967295 Please see website instructions to set this up: https://nathanfiscus.github.io/inovelli-notification-calc/
Texts	ID Description Value 17 Dynamic Capabilities Please see Page 9 of our Manual. It will literally be like writing a thesis statement. 6 Other Special Features Configuration/Favorites Buttons: This switch allows for ultimate customization via the Configuration Buttons (rather than via a Z-Wave HUB) such as changing the dimming speed, fan speed, minimum/maximum dim level, invert switch, default dim level (local & Z-Wave), the power on state, LED Indicator Color, LED Indicator Intensity, and LED Indicator Intensity (When Off). In addition, the config button doubles as a favorites button allowing you to create your favorite scene (Z-Wave Central Scene) and press the config/favorite button to activate it. LED Bar Notifications: The LED Bar will alert you when an action has taken place (ie: Door is unlocked after 10pm, your switch will light up Red or your alarm panel is armed, it can flash green, etc). Central Scene Control: Allows up to 11 different scenes to be added to your switch (10x on the Paddles, 1x on the Config/Favorites Button). A use-case would be: Double Tap down on the switch to activate a bedtime scene that turns off all smart lights, locks the doors, and sets the temperature to 68. Smart Bulb Compatible: The internal relay can be disabled allowing for full control of Smart Bulbs (Z-Wave bulbs preferred for maximum control). This fixes the issue of when someone flips a switch and turns off power to your smart bulb (causing it to go offline). Now, you can disable the internal relay and send a scene command to turn on/off your bulb. Or directly associate the switch to the bulb to dim up/down and send a scene command to change the colors. OTA (Over-the-Air) Enabled: As with all our devices, the dimmer allows you to receive our latest firmware updates (NOTE: Please make sure your HUB supports this). 8 Where to find S2 DSK on product The QR Code can be found on the front of the switch. 1 Classic Inclusion Put your hub/gateway into inclusion mode and hold down Button A (top of the config button -- normally used to dim up on the lights) and press Button B (light button) three (3) times. If you've successfully entered inclusion, the LED bars will pulse blue. Once included to the network, the LED bars will flash GREEN (they will flash RED if unsuccessful). 2 Classic Exclusion Put your hub/gateway into exclusion mode and hold down Button A (top of the config button -- normally used to dim up on the lights) and press Button B (light button) three (3) times. If you've successfully entered exclusion, the LED bars will pulse blue. Once excluded to the network, the LED bars will flash GREEN (they will flash RED if unsuccessful). 5 Factory Reset Procedure You may hold the Light Level Button (A) + Light On/Off Button (B) for 20 seconds or use a certified controller to remove the device from your network to factory default. Only use this procedure in the event that the network primary controller is missing or otherwise inoperable.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
