Product Recognition
Certification Number	ZC10-16105252

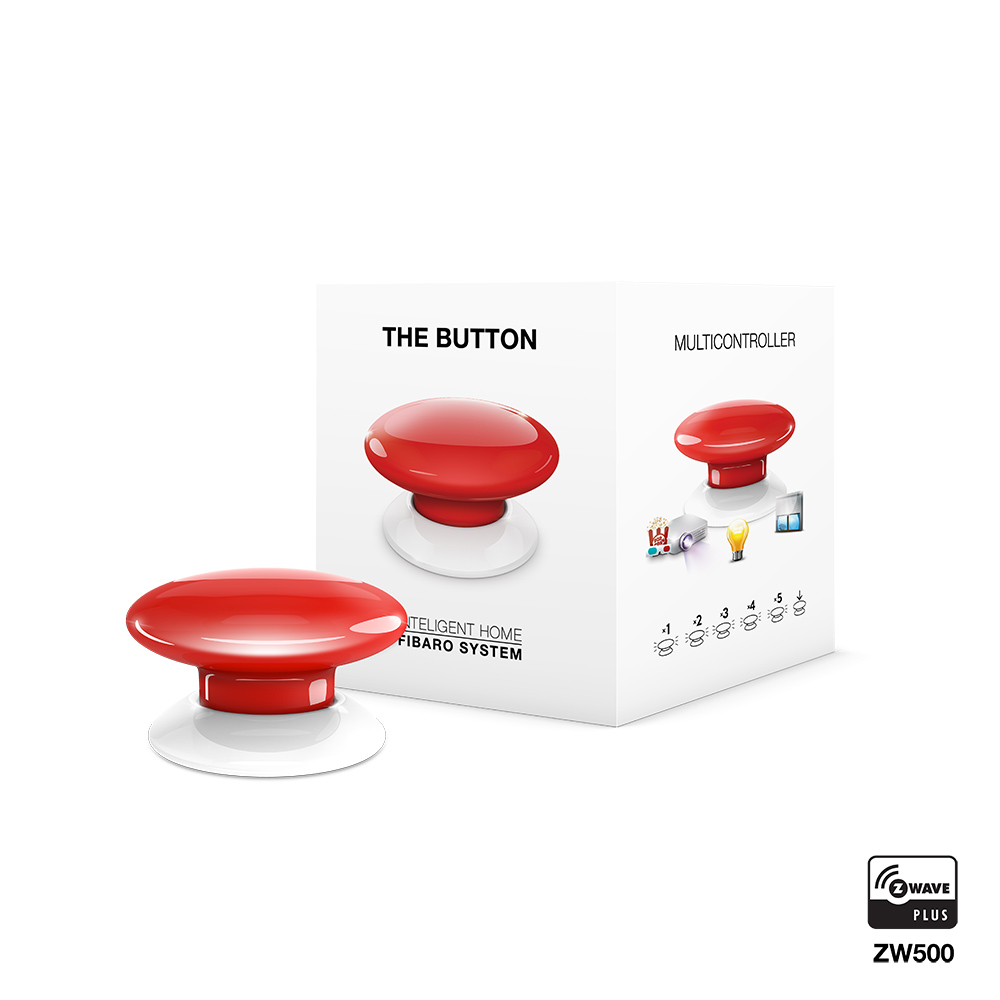

Name	FIBARO Button
Short Description	FIBARO Button is a compact, battery-powered, Z-Wave scene controller.
Long Description	FIBARO Button is a compact, battery-powered, Z-Wave Plus compatible device. It allows you to control devices through the Z-Wave network and run various scenes defined in FIBARO System. Different actions may be triggered with one to five clicks or by holding the button down. In Panic Button mode, each press of the button results in triggering the Fibaro Alarm. With its small design and wireless communication, the FIBARO Button can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or under the desk.
Brand	FIBARO
Product Identifier	FGPB-101
OEM Version	HW: 1 FW: 3.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x010F
Product Type ID	0x0F01
Product ID	0x1000
User Icon	0x1600
Installer Icon	0x1600
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors, Lighting Accessories
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGPB-101-EN-T-v1.0.pdf
Features	Feature Values Battery Quantity Value 1 Battery Type Value ER14250 (½AA) Firmware Updatable Value Updatable by Consumer by RF Z-Wave Scene Type Value Central Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 4 5 0 Alarm is assigned to clicking and/or holding the button (triggers are defined in parameter 30) and is used to send alarm frames to associated devices. 1 1 0 Lifeline reports the device status and allows for assigning single device only (main controller by default). 2 5 0 On/Off is assigned to clicking the button and is used to turn on/off associated devices. 3 5 0 Dimmer is assigned to holding the button and is used to change level of associated devices.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Associations in Z-Wave network security mode This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st „Lifeline” group. 1 - 2nd group sent as secure 2 - 3rd group sent as secure 4 - 4th group sent as secure NOTE Values of parameter 3 may be combined, e.g. 1+2=3 means that 2nd & 3rd group are sent as secure. 0 1 0 0 7 From To Description 1 1 2nd group sent as secure 2 2 3rd group sent as secure 4 4 4th group sent as secure 10 Key Pressed 1 time – command sent to 2nd association group This parameter defines commands sent to devices associated in 2nd association group after a single click. 0 - no action 1 - SWITCH ON 2 - SWITCH OFF 3 - SWITCH ON/OFF – alternately 0 1 0 0 3 From To Description 0 0 no action 1 1 SWITCH ON 2 2 SWITCH OFF 3 3 SWITCH ON/OFF – alternately 11 Key Pressed 1 time – value of SWITCH ON command sent to 2nd association group This parameter defines value of SWITCH ON command sent to devices in 2nd association group after a single click. 1-255- sent value NOTE Setting parameters 11, 13, 15, 21, 23 and 25 to appropriate value will result in: 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on 0 2 0 0 255 From To Description 1 99 forcing level of associated devices 255 255 setting associated devices to the last remembered state or turning them on 23 Key Pressed 2 times – value of SWITCH ON command sent to 3rd association group This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a double click. 1-255 - sent value 0 2 0 0 99 From To Description 1 99 forcing level of associated devices 255 255 setting associated devices to the last remembered state or turning them on 24 Key Pressed 3 times – command sent to 3rd association group This parameter defines commands sent to devices associated in 3rd association group after a triple click. 0 - no action 1- SWITCH ON 2- SWITCH OFF 3 - SWITCH ON/OFF – alternately 0 1 0 0 0 From To Description 0 0 no action 1 1 SWITCH ON 2 2 SWITCH OFF 3 3 SWITCH ON/OFF – alternately 25 Key Pressed 3 times – value of SWITCH ON command sent to 3rd association group This parameter defines value of SWITCH ON command sent to devices in 3rd association group after a triple click. 1-255 - sent value 0 2 0 0 255 From To Description 1 99 forcing level of associated devices 255 255 setting associated devices to the last remembered state or turning them on
Texts	ID Description Value 4 Device Wake-Up The Button needs to be woken up to receive information about the new configuration from the controller, like parameters and associations. 1) Click the Button 4 times to wake it up 1 Inclusion 1) Place the Button within the direct range of your Z-Wave controller. 2) Set the main controller in (security/non-security) add mode (see the controller’s manual). 3) Click the Button at least six times. 4) Wait for the adding process to end. 5) Successful adding will be confirmed by the Z-Wave controller’s message. 2 Exclusion 1) Place the Button within the direct range of your Z-Wave controller. 2) Set the main controller in remove mode (see the controller’s manual). 3) Click the Button at least six times. 4) Wait for the removing process to end. 5) Successful removing will be confirmed by the Z-Wave controller’s message. 5 Factory Reset Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1) Click the Button exactly five times. 2) Press and hold the Button for at least 5 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable
Supports NWI	Yes
Supports Explorer Frames	Yes
