Certification Number	ZC10-17055584

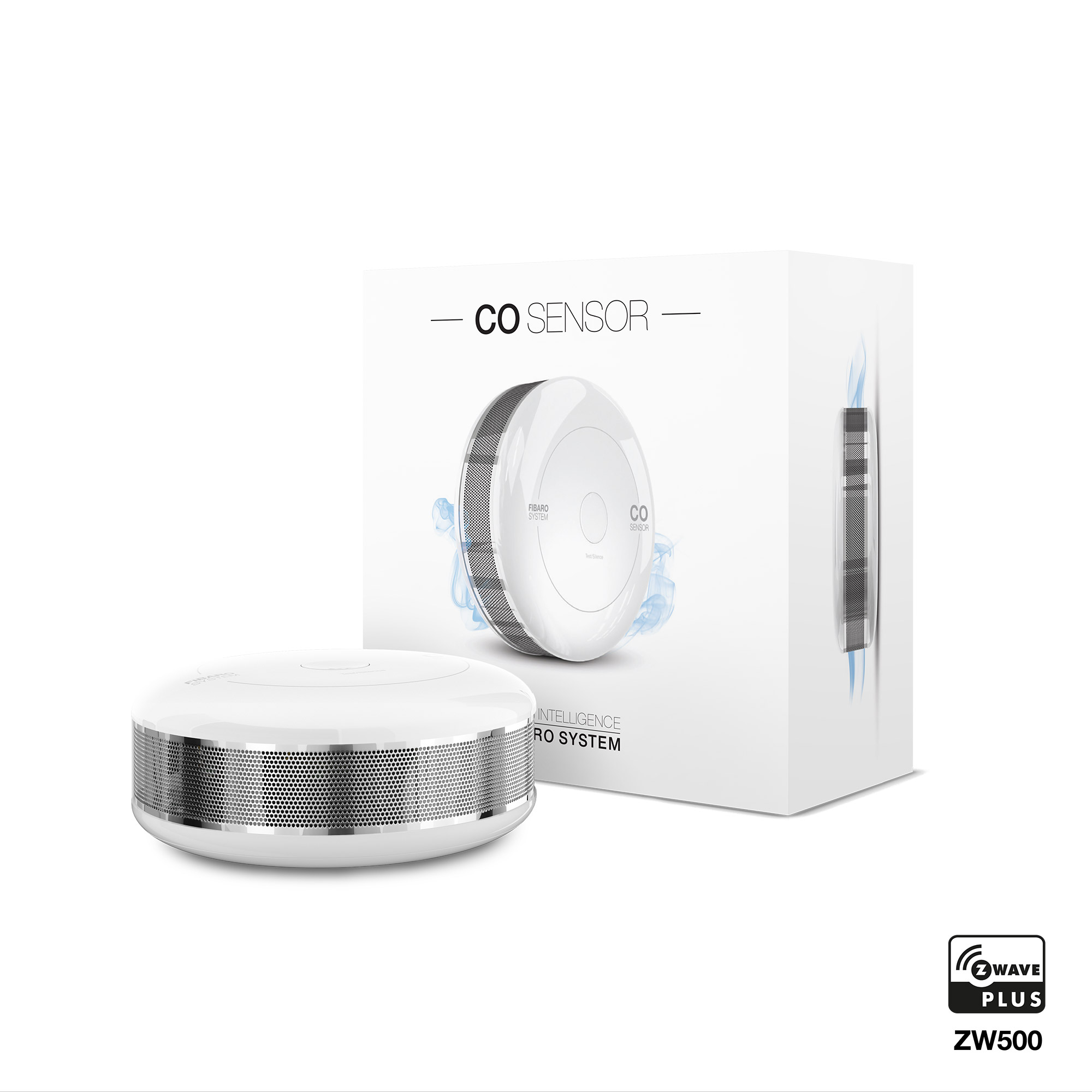

Name	FIBARO CO Sensor
Short Description	FIBARO CO Sensor is a compact, wall-mounted, battery-powered carbon monoxide detector.
Long Description	FIBARO CO Sensor is an ultra-light, compact, battery-powered carbon monoxide detector, designed to be placed on a wall. Its high sensitivity allows to detect the presence of the carbon monoxide (CO) gas at the early stage in order to prevent carbon monoxide poisoning. Alarm is signalled with a built-in siren, blinking LED indicator and by sending commands to Z-Wave network devices. Additionally, the device is equipped with a temperature sensor.
Brand	FIBARO
Product Identifier	FGCD-001
OEM Version	HW: 1 FW: 3.02:03.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x010F
Product Type ID	0x1201
Product ID	0x1000
User Icon	0x0C02
Installer Icon	0x0C02
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_SENSOR_MULTILEVEL_V10 Sensor Multilevel V10 0x31 10 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information V3 0x59 3 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGCD-001-EN-T-v0.4.pdf
Features	Feature Values Battery Quantity Value 1 Battery Type Value CR123A Color Value White Firmware Updatable Value Updatable by Consumer by RF Sensors Value Air Temperature Carbon Monoxide Supported Notification Types Value CO Alarm
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 “CO Alarm” is assigned to the device status - devices in this group will receive notification when CO Alarm status changes. Useful for devices that can trigger alarms. 4 5 0 “CO Level” is assigned to measured CO level - devices in this group will be switched on/off after exceeding the level of CO concentration specified in parameter 14. 5 5 0 “Tamper Alarm” is assigned to the tamper - sends tamper alarm and cancellation frames to the associated devices. 6 5 0 “CO Alarm BC” is assigned to the device status - devices in this group will be switched on/off when CO Alarm status changes. Provides backward compatibility with controllers not supporting Z-Wave+ protocol. 7 5 0 “Tamper Alarm BC” is assigned to the tamper - sends tamper alarm and alarm cancellation frames to the associated devices. Provides backward compatibility with controllers not supporting Z-Wave+ protocol. 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (main controller by default). 2 5 0 “CO Alarm” is assigned to the device status - devices in this group will be switched on/off when CO Alarm status changes.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED diode indications This parameter allows to set the actions which result in LED diode indications. This parameter does not apply to the most important actions, such as CO Alarm, Malfunction Alarm and Low Battery Alarm. 0 1 0 0 0 From To Description 0 0 all actions disabled 1 1 tampering (opened casing) 2 2 exceeding the temperature 4 4 lack of Z-Wave range 4 Acoustic signals This parameter allows to set the actions which result in acoustic signals. This parameter does not apply to the most important actions, such as CO Alarm, Malfunction Alarm and Low Battery Alarm. 0 1 0 0 0 From To Description 0 0 all actions disabled 1 1 tampering (opened casing) 2 2 exceeding the temperature 4 4 lack of Z-Wave range 7 Associations in Z-Wave network security mode Parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st “Lifeline” association group. Parameter 7 values may be combined, e.g. 1+2=3 means that 2nd & 3rd group are sent as secure. 0 1 0 0 63 From To Description 1 63 group sent as secure 10 Commands sent to 2nd association group (CO Alarm) This parameter defines commands sent to devices associated in 2nd association group (CO Alarm). Values of specified commands may be set in parameters 11 and 12. 0 1 0 0 3 From To Description 1 1 BASIC ON 2 2 BASIC OFF 3 3 BASIC ON & BASIC OFF 11 Value of BASIC ON command sent to 2nd association group This parameter defines the value of BASIC ON command sent to devices in 2nd association group after the CO Alarm activation. 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on 0 2 0 0 255 From To Description 0 99 forcing level of associated devices 255 255 setting associated devices to the last remembered state or turning them on 17 CO Level required for sending BASIC OFF command to 4th association group This parameter defines the maximum level of CO concentration below which falling will result in starting the timer set in parameter 18. 0 2 0 0 25 From To Description 10 400 CO concentration level in ppm 23 CO meter activation This parameter activates reporting the value of CO concentration level to the main Z-Wave controller. 0 1 0 0 1 From To Description 0 0 disabled 1 1 enabled 25 CO level reporting hysteresis This parameter defines a minimum change in CO concentration level which results in sending a new value to the main Z-Wave controller. 0 1 0 0 2 From To Description 2 6 10 ppm - 30 ppm, each 5 ppm 2 Z-Wave notifications This parameter allows to set the actions which result in sending notifications to the Z-Wave network controller. 0 1 0 0 0 From To Description 0 0 both actions disabled 1 1 tampering (opened casing) 2 2 exceeding the temperature 3 3 both actions enabled
Texts	ID Description Value 1 Inclusion 1) Place the device within direct range of the Z-Wave controller. 2) Set the main Z-Wave controller in (security/non-security) adding mode (see the controller’s manual). 3) Quickly, triple click the button located on the casing. 4) Wait for the device to be added into the system. 5) Successful adding will be confirmed by the Z-Wave controller’s message. 2 Exclusion 1) Place the device within direct range of the Z-Wave controller. 2) Set the main Z-Wave controller in remove mode (see the controller’s manual). 3) Quickly, triple click the button located on the casing. 4) Wait for the removing process to end. 5) Successful removing will be confirmed by the Z-Wave controller’s message. 5 Factory Reset 1) Press and hold the button. 2) Release the button when LED indicator glows white. 3) Click the button when LED indicator glows yellow. 4) After few seconds the device will be reset (confirmed by red LED indicator). 4 Device Wake-Up The CO Sensor needs to be woken up to receive information about the new configuration from the Z-Wave controller, like parameters and associations. To wake up the sensor manually click the button located on the casing.
Supported Notification Types	Notification Type Event / State CO Alarm (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Carbon monoxide (CO) level
Supports NWI	Yes
Supports Explorer Frames	Yes
