Product Recognition
Certification Number	ZC10-16045036

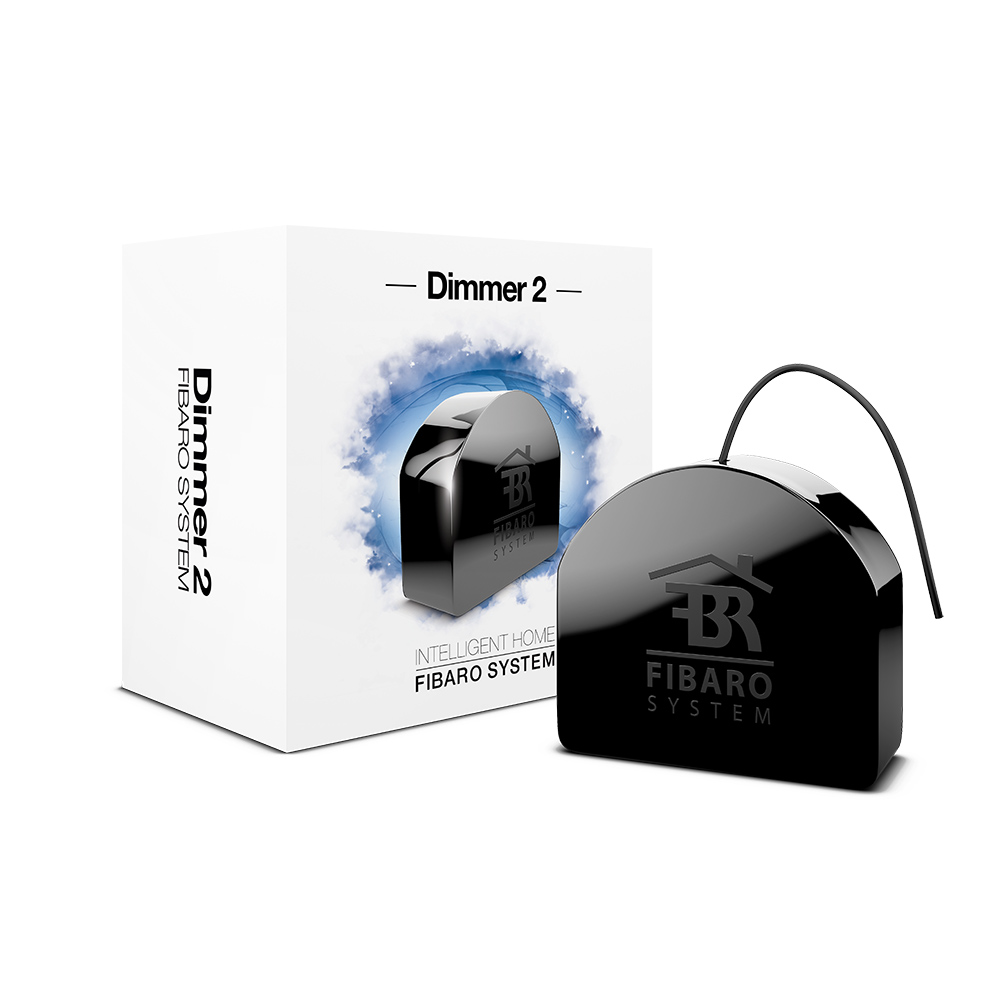

Name	FIBARO Dimmer 2
Short Description	Remotely controlled light dimming module is designed to work with various types of light sources in 2 or 3-wire connection so it can operate with or without neutral lead.
Long Description	Fibaro Dimmer can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. Dimmer 2 is equipped with a smart algorithm of light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources in 3-wire connection. Active power and energy consumption allows to monitor and reduce electricity bills. Dimmer 2 is compatible with any Z-Wave or Z-Wave Plus Controller. FIBARO Dimmer 2 Product Identifier: FGD-212 Brand Name: FIBARO Z-Wave Certification Number: ZC10-15090017 Z-Wave Certification Date: 9/16/2015 Z-Wave Protocol Implementation Conformance Statement: View Download Remotely controlled light dimming module is designed to work with various types of light sources in 2 or 3-wire connection so it can operate with or without neutral lead. Fibaro Dimmer can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. Dimmer 2 is equipped with a smart algorithm of light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources in 3-wire connection. Active power and energy consumption allows to monitor and reduce electricity bills. Dimmer 2 is compatible with any Z-Wave or Z-Wave Plus Controller. As a dimmer it operates under the following loads: • 230V operated conventional incandescent and halogen light sources • ELV electronic transformers (12V operated halogen lamps and dimmable LED bulbs) • MLV ferromagnetic transformers with 12V operated halogen lamps • dimmable LED bulbs • dimmable compact fluorescent CFL tube lamps • supported dimmable light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 Without dimming function it may work with: • compact fluorescent lamps • fluorescent tube lamps with electronic ballast • LED bulbs (power factor > 0.7) • supported light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 https://www.youtube.com/watch?v=K35uFXoa5c0
Brand	FIBARO
Product Identifier	FGD-212
OEM Version	HW: 2 FW: 3.05:03.05
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x010F
Product Type ID	0x0102
Product ID	0x1000
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, Dimming Lighting Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGD-212-EN-T-v1.1_recert.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline. Type of frame sent by the device when the association group is activated: SWITCH_MULTILEVEL_REPORT; DEVICE_RESET_LOCALLY_NOTIFICATION; SCENE_ACTIVATION_SET; METER_REPORT; SENSOR_MULTILEVEL_REPORT; NOTIFICATION REPORT. 2 8 0 Association Group „On/Off (S1)” is assigned to key no. 1. Type of frame sent by the device when the association group is activated: BASIC_SET. 3 8 0 Association Group „Dimmer (S1)” is assigned to key no. 1. Type of frame sent by the device when the association group is activated: SWITCH_MULTILEVEL_SET. 4 8 0 Association Group „On/Off (S2)” is assigned to key no. 2. Type of frame sent by the device when the association group is activated: BASIC_SET. 5 8 0 Association Group „Dimmer (S2)” is assigned to key no. 2. Type of frame sent by the device when the association group is activated:SWITCH_MULTILEVEL_SET.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 6 Time of a dimming step at automatic control (0s - 2,55s) 0 2 0 0 1 From To Description 0 255 (0s - 2,55s) 8 Manual control - time of a dimming step 0s - 2,55s 0 2 0 0 5 From To Description 0 255 0s - 2,55s 5 Automatic control - dimming step size dimming step percentage value 0 1 0 0 1 From To Description 1 99 dimming step percentage value 1 Minimum brightness level The parameter can be changed manually after the calibration. 1-98 - percentage level of brightness CAUTION The maximum brightness level (parameter 2) must be greater than the minimum brightness level (parameter 1). 0 1 0 0 1 From To 1 98 3 Incandescence level of dimmable compact fluorescent lamps Virtual value set as a percentage level between parameters MIN (1%) and MAX. (99%). The Dimmer 2 will set to this value after first switch on. It is required for warming up and switching dimmable compact fluorescent lamps and certain types of light sources. 1-99 - percentage level of brightness 0 1 0 0 1 From To Description 1 99 percentage level of brightness 4 Incandescence time of dimmable compact fluorescent lamps This parameter determines the time required for switching compact fluorescent lamps and certain types of light sources. Setting this parameter to 0 will disable the incandescence functionality. 0s - 25,5s 0 2 0 0 0 From To Description 0 255 0s - 25,5s 7 Manual control - dimming step size dimming step percentage value 0 1 0 0 1 From To Description 1 99 dimming step percentage value 9 Saving the state of the device after a power failure The Dimmer 2 will return to the last state before power failure. 1 - the Dimmer saves its state before power failure. 0 - the Dimmer 2 does not save the state before a power failure, it returns to off position 0 1 0 0 1 From To Description 0 0 the Dimmer 2 does not save the state before a power failure, it returns to off position 1 1 the Dimmer saves its state before power failure. 10 Timer functionality (auto - off) 0 - Function disabled 1-32767 - time to turn off measured in seconds (1s-9.1h) 0 2 0 0 0 From To Description 1 32767 time to turn off measured in seconds (1s-9.1h) 0 0 Function disabled 11 ALL ON/ALL OFF function 0 - ALL ON not active, ALL OFF not active 1 - ALL ON not active, ALL OFF active 2 - ALL ON active, ALL OFF not active 255 - ALL ON active, ALL OFF active 0 2 0 0 255 From To Description 1 1 ALL ON not active, ALL OFF active 2 2 ALL ON active, ALL OFF not active 255 255 ALL ON active, ALL OFF active 0 0 ALL ON not active, ALL OFF not active 23 Double click option 0 - double click disabled 1 - double click enabled 0 1 0 0 1 From To Description 0 0 double click disabled; 1 1 double click enabled. 41 Response to Water Flooding Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 2 From To Description 3 3 Load blinking 0 0 No reaction 1 1 Turn on the load 2 2 Turn off the load 42 Response to Smoke, CO or CO2 Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 3 From To Description 0 0 No reaction 1 1 Turn on the load; 2 2 Turn off the load 3 3 Load blinking 43 Response to Temperature Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Turn on the load 2 2 Turn off the load 3 3 Load blinking 31 Load control mode recognized during auto-calibration 0 - leading edge 1 - trailing edge 0 1 0 0 0 From To Description 0 0 leading edge; 1 1 trailing edge. 44 Time of alarm state 1-32767 (1-32767 seconds) 0 2 0 0 600 From To Description 1 32767 1s - 32767s 45 OVERLOAD alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send and alarm frame 46 LOAD ERROR alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 1 1 Send and alarm frame 0 0 No reaction 47 OVERCURRENT alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 1 1 Send and alarm frame 0 0 No reaction 48 SURGE alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 1 1 Send and alarm frame 0 0 No reaction 49 OVERHEAT and VOLTAGE DROP alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send and alarm frame 50 Active power reports The parameter defines the power level change that will result in a new power report being sent. The value is a percentage of the previous report. 0 - power reports disabled 1-100 (1-100%) - power report threshold 0 1 0 0 10 From To Description 1 100 (1-100%) - power report threshold 0 0 power reports disabled 2 Maximum brightness level The parameter can be changed manually after the calibration 2-99 - percentage level of brightness 0 1 0 0 99 From To 2 99 0 0 40 Response to General Purpose Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 3 From To Description 3 3 Load blinking 0 0 No reaction 1 1 Turn on the load 2 2 Turn off the load 52 Periodic active power and energy reports Parameter 52 defines a time period between consecutive reports. Timer is reset and counted from zero after each report. 0 - periodic reports disabled 1-32767 (1-32767 seconds) 0 2 0 0 3600 From To Description 0 0 periodic reports disabled 1 32767 (1-32767 seconds) 53 Energy reports Energy level change which will result in sending a new energy report. 0 - energy reports disabled 1-255 (0.01-2.55 kWh) - report triggering threshold 0 2 0 0 10 From To Description 1 255 (0,01 - 2,55 kWh) - report triggering threshold 0 0 0xFF value is sent, which will set associated devices to their last saved state. 1 1 Current Dimmer state is sent, which will synchronize brightness level of associated devices (other Dimmers for example). 0 0 energy reports disabled 54 Self-measurement The Dimmer 2 may include active power and energy consumed by itself in reports sent to the main controller. 0 - Self-measurement inactive 1 - Self-measurement active 0 1 0 0 0 From To Description 0 0 Self-measurement inactive 1 1 Self-measurement active 58 Method of calculating the active power This parameter defines how to calculate active power. It is useful in a case of 2-wire connection with light sources other than resistive. 0 - measurement based on the standard algorithm 1 - approximation based on the calibration data 2 - approximation based on the control angle NOTE Parameter 58 is set to 0 after forced auto-calibration. 0 1 0 0 0 From To Description 1 1 approximation based on the calibration data 2 2 approximation based on the control angle 0 0 measurement based on the standard algorithm 59 Approximated power at the maximum brightness level This parameter determines the approximate value of the power that will be reported by the device at its maximum brightness level. 0-500 (0-500W) - power consumed by the load at the maximum brightness level. NOTE Parameter 59 works only when parameter 58 has a value other than 0. 0 2 0 0 0 From To Description 0 500 (0-500W) - power consumed by the load at the maximum brightness level.
Texts	ID Description Value 1 Inclusion 1) Switch off the mains voltage. 2) Open the wall switch box. 3) Connect the Dimmer in accordance with one of the diagrams attached in the manual. 4) Switch on the mains voltage. 5) Wait for the calibration process to end. Light may blink. The device will be switched off once the process is completed. 6) Set the main Z-Wave controller into learning mode. 7) Quickly, three times press the B-button or key connected to the S1 terminal. 8) Wait for the device to be included into system. Successful inclusion will be confirmed by the controller. 9) Arrange the antenna and close the wall switch box. 2 Exclusion 1) Set the main Z-Wave controller into learning mode. 2) Quickly, three times press the B-button or key connected to the S1 terminal. 3) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller. 6 Additional Special Features Active power and metering functionality Soft start function Memory of the last lighting level settings Z-Wave range tester LED diode 5 Factory Reset 1) Disconnect the power supply, remove the Dimmer from the wall switch box, than connect the power supply. 2) Locate the B-button on the housing. 3) Click and hold the B-button to enter the menu mode. 4) Release and click the B-button to choose ""Device reset"" option in the menu that is signaled with the yellow LED indicator colour. 5) After few seconds the device will be restarted, which is signaled with the red LED indicator colour and entering the calibration mode. Note! Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. 4 Device Wake-Up The Fibaro Dimmer 2 is powered with mains voltage so it is always awake.
Supports NWI	Yes
Supports Explorer Frames	Yes
