Certification Number	ZC10-16045039

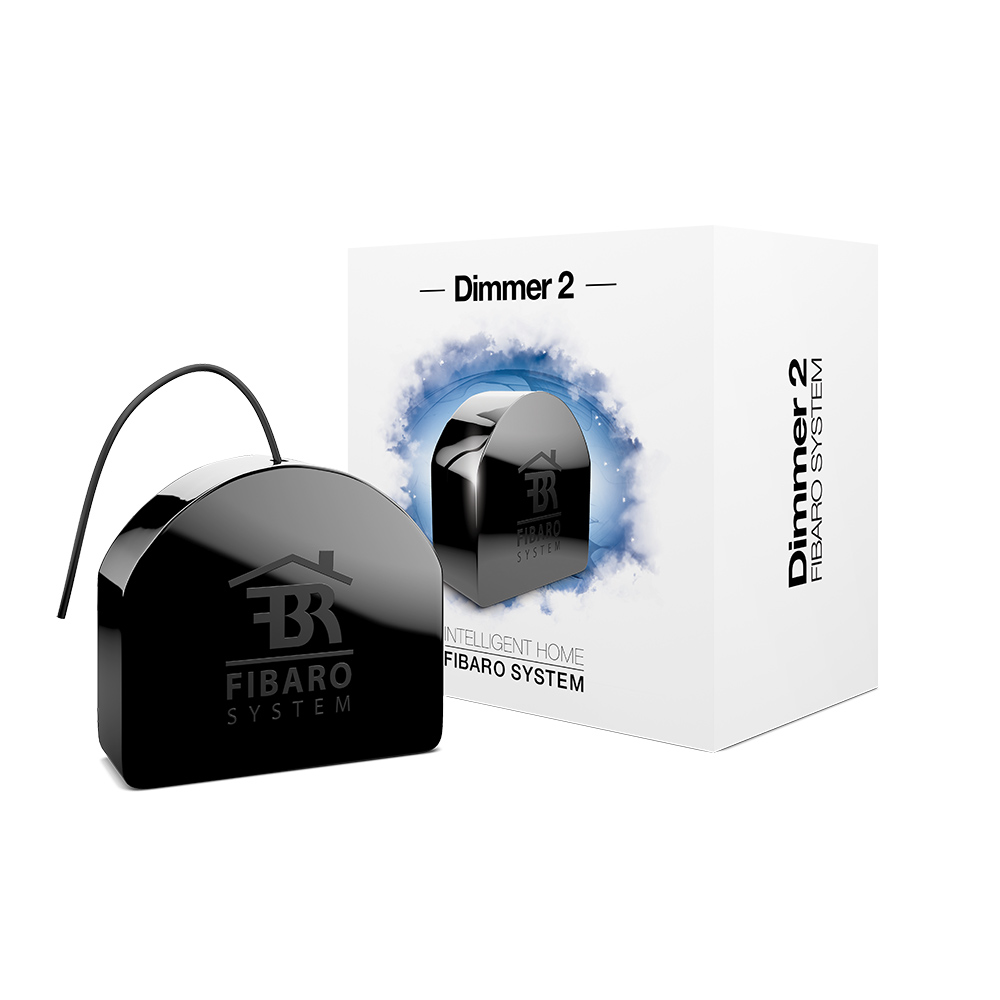

Name	FIBARO Dimmer 2
Short Description	FIBARO Dimmer 2 is a device designed to control various types of light sources in 2 or 3-wire connection.
Long Description	The device can switch or dim connected light source remotely using Z-Wave wireless protocol or through the wall switch connected directly to it. Dimmer 2 is equipped with a smart algorithm of light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources in 3-wire connection. Active power and energy consumption allows to monitor and reduce electricity bills. Dimmer 2 is compatible with any Z-Wave or Z-Wave Plus Controller. As a dimmer it operates under the following loads: • 230V operated conventional incandescent and halogen light sources • ELV electronic transformers (12V operated halogen lamps and dimmable LED bulbs) • MLV ferromagnetic transformers with 12V operated halogen lamps • dimmable LED bulbs • dimmable compact fluorescent CFL tube lamps • supported dimmable light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 Without dimming function it may work with: • compact fluorescent lamps • fluorescent tube lamps with electronic ballast • LED bulbs (power factor > 0.7) • supported light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002
Brand	FIBARO
Product Identifier	FGD-212
OEM Version	HW: 2 FW: 3.05:03.05
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x010F
Product Type ID	0x0102
Product ID	0x2000
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Energy Meters, All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGD-212-US-T-v1.1.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 „Lifeline” reports state of the device. Main Z-Wave+ network controller should be added to this group. The „Lifeline” group can handle only one device. It is not recommended to modify this group 2 8 0 „On/Off (S1)” is assigned to switch no. 1. Sends BASIC command class frame according to the state of the device. 3 8 0 „Dimmer (S1)” is assigned to switch no. 1. Sends MULTILEVEL SWITCH command class frame. Allows sending dim/brighten command to associated devices. 4 8 0 „On/Off (S2)” is assigned to switch no. 2. Sends BASIC command class frame according to the state of the device. 5 8 0 „Dimmer (S2)” is assigned to switch no. 2. Sends MULTILEVEL SWITCH command class frame. Allows sending dim/brighten command to associated devices.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 5 Automatic control - dimming step size This parameter defines the percentage value of dimming step during the automatic control. 1-99 - dimming step percentage value NOTE Automatic control is performed through: - single push-button click - double push-button click - Z-Wave control frames 0 1 0 0 1 From To Description 1 99 dimming step percentage value 6 Automatic control - time of a dimming step This parameter defines the time of single dimming step set in parameter 5 during the automatic control. 0-255 (0-2.55s, in 10ms steps) 0 2 0 0 1 From To Description 0 255 (0-2.55s, in 10ms steps) 53 Energy reports Energy level change which will result in sending a new energy report. 0 - energy reports disabled 1-255 (0.01-2.55 kWh) - report triggering threshold 0 2 0 0 10 From To Description 0 0 energy reports disabled 1 255 (0.01-2.55 kWh) report triggering threshold 54 Self-measurement The Dimmer 2 may include active power and energy consumed by itself in reports sent to the main controller. 0 - Self-measurement inactive 1 - Self-measurement active 0 1 0 0 0 From To Description 0 0 Self-measurement inactive 1 1 Self-measurement active 4 Incandescence time of dimmable compact fluorescent lamps This parameter determines the time required for switching compact fluorescent lamps and certain types of light sources. Setting this parameter to 0 will disable the incandescence functionality. 0-255 (0-25.5s) 0 2 0 0 0 From To Description 0 255 (0-25.5s) 1 Minimum brightness level The parameter can be changed manually after the calibration. 1-98 - percentage level of brightness CAUTION The maximum brightness level (parameter 2) must be greater than the minimum brightness level (parameter 1). 0 1 0 0 1 From To Description 1 98 percentage level of brightness 2 Maximum brightness level The parameter can be changed manually after the calibration. 2-99 - percentage level of brightness 0 1 0 0 99 From To Description 2 99 percentage level of brightness 9 State of the device after a power failure The Dimmer 2 will return to the last state before power failure. 0 - the Dimmer 2 does not save the state before a power failure, it returns to „off” position 1 - the Dimmer 2 restores its state before power failure 0 1 0 0 1 From To Description 1 1 the Dimmer 2 restores its state before power failure 0 0 the Dimmer 2 does not save the state before a power failure, it returns to „off” position 10 Timer functionality (auto - off) This parameter allows to automatically switch off the device after specified time from switching on the light source. It may be useful when the Dimmer 2 is installed in the stairway. 0 - Function disabled 1-32767 - time to turn off measured in seconds (1s-9.1h) 0 2 0 0 0 From To Description 0 0 Function disabled 1 32767 time to turn off measured in seconds (1s-9.1h) 11 ALL ON/ALL OFF function Parameter allows for activation/deactivation of Z-Wave commands enabling/disabling all devices located in direct range of the main controller. 0 - ALL ON not active, ALL OFF not active 1 - ALL ON not active, ALL OFF active 2 - ALL ON active, ALL OFF not active 255 - ALL ON active, ALL OFF active 0 2 0 0 255 From To Description 0 0 ALL ON not active, ALL OFF not active 1 1 ALL ON not active, ALL OFF active 2 2 ALL ON active, ALL OFF not active 255 255 ALL ON active, ALL OFF active 3 Incandescence level of dimmable compact fluorescent lamps Virtual value set as a percentage level between parameters MIN (1%) and MAX. (99%). The Dimmer 2 will set to this value after first switch on. It is required for warming up and switching dimmable compact fluorescent lamps and certain types of light sources. 1-99 - percentage level of brightness 0 1 0 0 1 From To Description 1 99 percentage level of brightness 7 Manual control - dimming step size This parameter defines the percentage value of dimming step during the manual control. 1-99 - dimming step percentage value NOTE Manual control is performed through holding the push-button. 0 1 0 0 1 From To Description 1 99 dimming step percentage value 8 Manual control - time of a dimming step This parameter defines the time of single dimming step set in parameter 7 during the manual control. 0-255 (0-2.55s, in 10ms steps) 0 2 0 0 5 From To Description 0 255 (0-2.55s, in 10ms steps) 46 LOAD ERROR alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send an alarm frame 42 Response to Smoke, CO or CO2 Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 3 From To Description 0 0 No reaction 1 1 Turn on the load 2 2 Turn off the load 3 3 Load blinking 44 Time of alarm state 1-32767 (1-32767 seconds) NOTE Alarm state may be cancelled earlier, as a result of pressing the switch or sending the Z-Wave command frame. 0 2 0 0 600 From To Description 1 32767 (1-32767 seconds) 43 Response to Temperature Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Turn on the load 2 2 Turn off the load 3 3 Load blinking 47 OVERCURRENT alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send an alarm frame 49 OVERHEAT (critical temperature) and VOLTAGE DROP (low voltage) alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send an alarm frame 52 Periodic active power and energy reports Parameter 52 defines a time period between consecutive reports. Timer is reset and counted from zero after each report. 0 - periodic reports disabled 1-32767 (1-32767 seconds) 0 2 0 0 3600 From To Description 0 0 periodic reports disabled 1 32767 (1-32767 seconds) 41 Response to Water Flooding Alarm 0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinking 0 1 0 0 2 From To Description 0 0 No reaction 1 1 Turn on the load 2 2 Turn off the load 3 3 Load blinking 45 OVERLOAD alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send an alarm frame 31 Load control mode recognized during auto-calibration 0 - leading edge 1 - trailing edge 0 1 0 0 0 From To Description 0 0 leading edge 1 1 trailing edge 23 Double click option - set the brightness level to MAX 0 - double click disabled 1 - double click enabled 0 1 0 0 1 From To Description 0 0 double click disabled 1 1 double click enabled 50 Active power reports The parameter defines the power level change that will result in a new power report being sent. The value is a percentage of the previous report. 0 - power reports disabled 1-100 (1-100%) - power report threshold 0 1 0 0 10 From To Description 0 0 power reports disabled 1 100 (1-100%) power report threshold 48 SURGE alarm report 0 - No reaction 1 - Send an alarm frame 0 1 0 0 1 From To Description 0 0 No reaction 1 1 No reaction 58 Method of calculating the active power This parameter defines how to calculate active power. It is useful in a case of 2-wire connection with light sources other than resistive. 0 - measurement based on the standard algorithm 1 - approximation based on the calibration data 2 - approximation based on the control angle NOTE Parameter 58 is set to 0 after forced auto- calibration. 0 1 0 0 0 From To Description 0 0 measurement based on the standard algorithm 1 1 approximation based on the calibration data 2 2 approximation based on the control angle 59 Approximated power at the maximum brightness level This parameter determines the approximate value of the power that will be reported by the device at its maximum brightness level. 0-500 (0-500W) - power consumed by the load at the maximum brightness level. NOTE Parameter 59 works only when parameter 58 has a value other than 0. 0 2 0 0 0 From To Description 0 500 (0-500W) power consumed by the load at the maximum brightness level
Texts	ID Description Value 1 Inclusion 1. Place the Dimmer 2 within the direct range of your Z-Wave controller 2. Identify switch no. 1 (turns the light on) or the B-button (located on the device’s housing) 3. Set the main controller in (security/non-security) add mode (see the controller’s manual) 4. Quickly, three times press switch no. 1 or the B-button 5. Wait for the adding process to end 6. Successful adding will be confirmed by the Z-Wave controller’s message 5 Factory Reset 1) Disconnect the power supply, remove the Dimmer from the wall switch box, than connect the power supply. 2) Locate the B-button on the housing. 3) Click and hold the B-button to enter the menu mode. 4) Release and click the B-button to choose ""Device reset"" option in the menu that is signaled with the yellow LED indicator colour. 5) After few seconds the device will be restarted, which is signaled with the red LED indicator colour and entering the calibration mode. Note! Resseting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. 2 Exclusion 1. Place the Dimmer 2 within the direct range of your Z-Wave controller 2. Identify switch no. 1 (turns the light on) or the B-button (located on the device’s housing) 3. Set the main controller in remove mode (see the controller’s manual) 4. Quickly, three times press switch no. 1 or the B-button 5. Wait for the removing process to end 6. Successful removing will be confirmed by the Z-Wave controller’s message 7. Dimmer 2 will start the calibration process (see „Calibration” on page 15) 4 Device Wake-Up The Fibaro Dimmer 2 is powered with mains voltage so it is always awake. 6 Additional Special Features Active power and energy metering functionality Soft start function Memory of the last lighting level setting Z-Wave range tester LED diode
Supports NWI	Yes
Supports Explorer Frames	Yes
