Product Recognition
Certification Number	ZC10-15090014

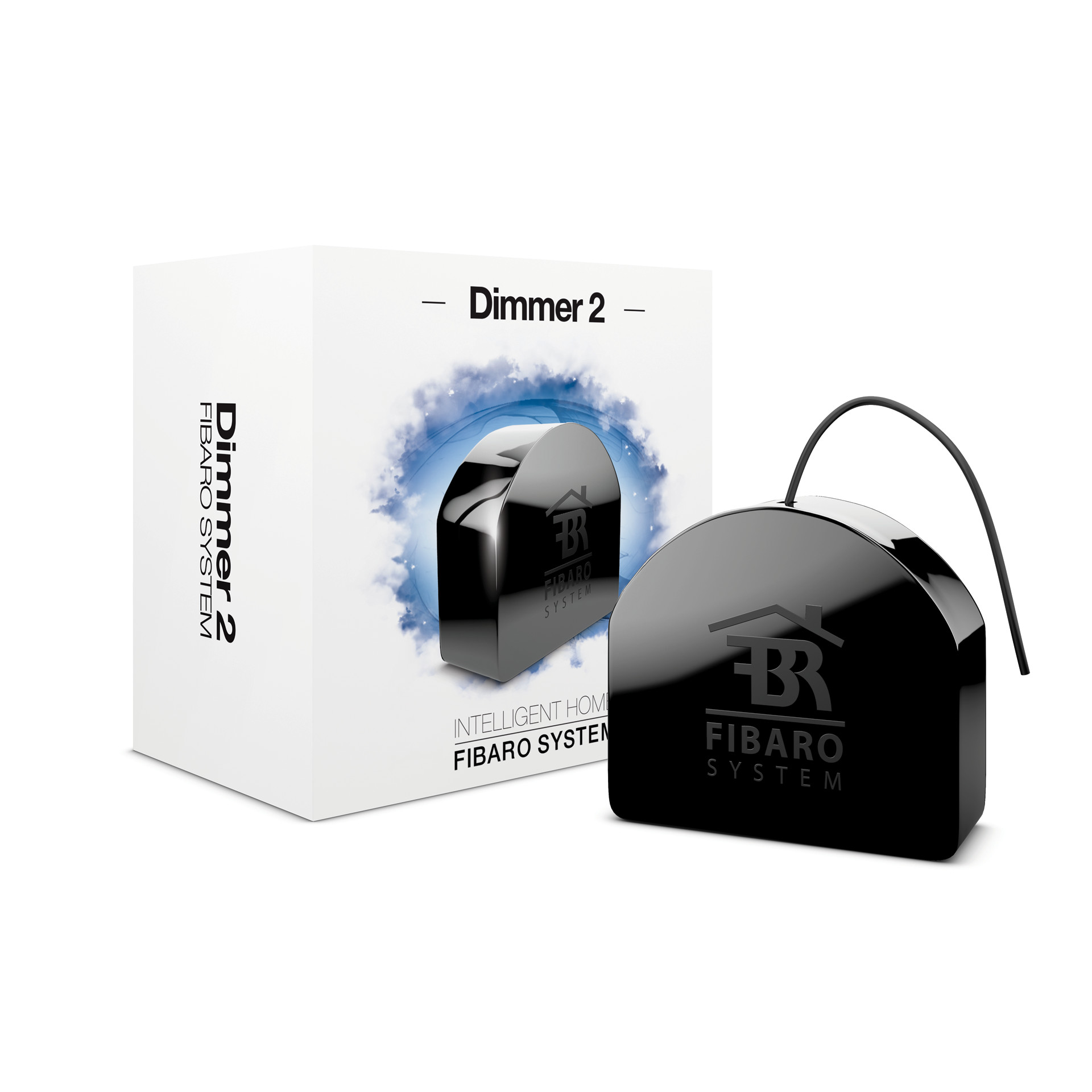

Name	FIBARO Dimmer 2
Short Description	FIBARO Dimmer 2 is a device designed to control various types of light sources in 2 or 3-wire connection. It can switch or dim connected light source remotely using Z-Wave wireless protocol or through the wall switch connected directly to it.
Long Description	Remotely controlled light dimming module is designed to work with various types of light sources in 2 or 3-wire connection so it can operate with or without neutral lead. Fibaro Dimmer can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. Dimmer 2 is equipped with a smart algorithm of light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources in 3-wire connection. Active power and energy consumption allows to monitor and reduce electricity bills. Dimmer 2 is compatible with any Z-Wave or Z-Wave+ Controller. As a dimmer it operates under the following loads: • 230V operated conventional incandescent and halogen light sources • ELV electronic transformers (12V operated halogen lamps and dimmable LED bulbs) • MLV ferromagnetic transformers with 12V operated halogen lamps • dimmable LED bulbs • dimmable compact fluorescent CFL tube lamps • supported dimmable light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 Without dimming function it may work with: • compact fluorescent lamps • fluorescent tube lamps with electronic ballast • LED bulbs (power factor > 0.7) • supported light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 https://www.youtube.com/watch?v=K35uFXoa5c0
Brand	FIBARO
Product Identifier	FGD-212
OEM Version	2
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x010F
Product Type ID	0x0102
Product ID	0x1000
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, Dimming Lighting Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGD-212-EN-T-v1.0 03.09.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 Association Group „Dimmer (S1)” is assigned to key no. 1. Type of frame sent by the device when the association group is activated: SWITCH_MULTILEVEL_SET. 2 5 0 Association Group „On/Off (S1)” is assigned to key no. 1. Type of frame sent by the device when the association group is activated: BASIC_SET. 1 1 0 Z-Wave Plus Lifeline. Type of frame sent by the device when the association group is activated: SWITCH_MULTILEVEL_REPORT; DEVICE_RESET_LOCALLY_NOTIFICATION; SCENE_ACTIVATION_SET; METER_REPORT; SENSOR_MULTILEVEL_REPORT; NOTIFICATION REPORT. 4 5 0 Association Group „On/Off (S2)” is assigned to key no. 2. Type of frame sent by the device when the association group is activated: BASIC_SET. 5 5 0 Association Group „Dimmer (S2)” is assigned to key no. 2. Type of frame sent by the device when the association group is activated:SWITCH_MULTILEVEL_SET.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 10 Timer functionality (auto - off) This parameter allows to automatically switch off the device after specified time from switching on the light source. It may be useful when the Dimmer 2 is installed in the stairway. 0 2 0 0 0 From To Description 0 0 Function disabled; 1 32767 time to turn off measured in seconds (1s - 9,1h) 54 Self-measurement The Dimmer may include active power and energy used by itself in reports sent to the main controller. 0 1 0 0 0 From To Description 0 0 Self-measurement inactive 1 1 Self-measurement active 9 Saving the state of the device after a power failure The Dimmer will return to the last position before power failure. 0 1 0 0 1 From To Description 0 0 the Dimmer does not save the state after a power failure, it returns to "off" position; 1 1 the Dimmer saves its state before power failure. 11 ALL ON/ALL OFF function Parameter allows for activation/deactivation of Z-Wave commands enabling/disabling all devices located in direct range of the main controller. 0 2 0 0 255 From To Description 0 0 ALL ON not active, ALL OFF not active; 1 1 ALL ON not active, ALL OFF active; 2 2 ALL ON active, ALL OFF not active; 255 255 ALL ON active, ALL OFF active. 5 Automatic control - dimming step size This parameter defines the percentage value of dimming step during the automatic control. 0 1 0 0 1 From To Description 1 99 dimming step percentage value 49 OVERHEAT and VOLTAGE DROP alarm report Critical temperature and low voltage alarm report. 0 1 0 0 1 From To Description 1 1 Send and alarm frame 0 0 No reaction 46 LOAD ERROR alarm report No load, load failure, burnt out bulb. 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send and alarm frame 7 Manual control - dimming step size This parameter defines the percentage value of dimming step during the manual control. 0 1 0 0 1 From To Description 1 99 dimming step percentage value 1 Minimum brightness level Parameter is set automatically during the calibration process. The parameter can be changed manually after the calibration. 0 1 0 0 1 From To Description 1 98 percentage level of brightness 4 Incandescence time of dimmable compact fluorescent lamps This parameter determines the time required for switching compact fluorescent lamps and certain types of light sources. Setting this parameter to 0 will disable the incandescence functionality. 0 2 0 0 0 From To Description 0 255 0s - 25,5s 2 Maximum brightness level Parameter is set automatically during the calibration process. The parameter can be changed manually after the calibration. For more details please check the manual. CAUTION: The maximum level (parameter 2) may not be lower than the minimum level (parameter 1). 0 1 0 0 99 From To Description 2 99 percentage level of brightness 3 Incandescence level of dimmable compact fluorescent lamps Virtual value set as a percentage level between parameters MIN (1%) and MAX (99%). The Dimmer will set to this value after first switch on. It is required for warming up and switching dimmable compact fluorescent lamps and certain types of light sources. 0 1 0 0 1 From To Description 1 99 percentage level of brightness 40 Response to General Purpose Alarm Available settings: 0 - No reaction; 1 - Turn on the load; 2 - Turn off the load; 3 - Load blinking. 0 1 0 0 3 From To Description 1 1 Turn on the load 2 2 Turn off the load 3 3 Load blinking 0 0 No reaction 41 Response to Water Flooding Alarm Available settings: 0 - No reaction; 1 - Turn on the load; 2 - Turn off the load; 3 - Load blinking. 0 1 0 0 2 From To Description 0 0 No reaction 1 1 Turn on the load 3 3 Load blinking 2 2 Turn off the load 42 Response to Smoke, CO or CO2 Alarm Available settings: 0 - No reaction; 1 - Turn on the load; 2 - Turn off the load; 3 - Load blinking. 0 1 0 0 3 From To Description 0 0 No reaction 1 1 Turn on the load; 2 2 Turn off the load 3 3 Load blinking 43 Response to Temperature Alarm Available settings: 0 - No reaction; 1 - Turn on the load; 2 - Turn off the load; 3 - Load blinking. 0 1 0 0 1 From To Description 0 0 No reaction 2 2 Turn off the load 1 1 Turn on the load 3 3 Load blinking 44 Time of alarm state Note! Alarm state may be cancelled earlier, as a result of pushing the wall-switch keys or sending the Z-Wave command frame. 0 2 0 0 600 From To Description 1 32767 1s - 32767s 50 Active power reports The parameter defines the power level change that will result in a new power report being sent. The value is a percentage of the previous report. 0 1 0 0 10 From To Description 0 0 power reports disabled 1 100 (1-100%) - power report threshold 52 Periodic active power and energy reports Parameter 52 defines a time period between consecutive reports. Timer is reset and counted from zero after each report. Available settings: 0 - periodic reports disabled; 1-32767 (1-32767 seconds). 0 2 0 0 3600 From To Description 1 32767 (1-32767 seconds) 0 0 periodic reports disabled 23 Double click option Double click will set the brightness level to MAX. 0 1 0 0 1 From To Description 0 0 double click disabled; 1 1 double click enabled. 8 Manual control - time of a dimming step This parameter defines the time of single dimming step set in parameter 7 during the manual control. 0 2 0 0 5 From To Description 0 255 0s - 2,55s 31 Load control mode recognized during auto-calibration Read only parameter. 0 1 0 0 0 From To Description 1 1 trailing edge. 0 0 leading edge; 45 OVERLOAD alarm report Load power consumption too high. 0 1 0 0 1 From To Description 0 0 No reaction 1 1 Send and alarm frame 48 SURGE alarm report Dimmer output overvoltage. 0 1 0 0 1 From To Description 1 1 Send and alarm frame 0 0 No reaction 53 Energy reports Energy level change which will result in sending a new energy report. 0 2 0 0 10 From To Description 0 0 energy reports disabled 1 255 (0,01 - 2,55 kWh) - report triggering threshold 58 Method of calculating the active power This parameter defines how to calculate active power. It is useful in a case of 2-wire connection with light sources other than resistive. Available settings: 0 - measurement based on the standard algorithm; 1 - approximation based on the calibration data; 2 - approximation based on the control angle. Parameter 58 is set to 0 after forced auto-calibration. 0 1 0 0 0 From To Description 0 0 measurement based on the standard algorithm 1 1 approximation based on the calibration data 2 2 approximation based on the control angle 59 Approximated power at the maximum brightness level This parameter determines the approximate value of the power that will be reported by the device at its maximum brightness level. Available settings: 0-500 (0-500W) - power consumed by the load at the maximum brightness level. Parameter 59 works only when parameter 58 has a value other than 0. 0 2 0 0 0 From To Description 0 500 (0-500W) - power consumed by the load at the maximum brightness level. 47 OVERCURRENT alarm report Short circuit, burnt out bulb causing overcurrent. 0 1 0 0 1 From To Description 1 1 Send and alarm frame 0 0 No reaction 6 Time of a dimming step at automatic control This parameter defines the time of single dimming step set in parameter 5 during the automatic control. 0 2 0 0 0 From To Description 0 255 (0s - 2,55s)
Texts	ID Description Value 2 Exclusion 1) Set the main Z-Wave controller into learning mode. 2) Quickly, three times press the B-button or key connected to the S1 terminal. 3) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller. 1 Inclusion 1) Switch off the mains voltage. 2) Open the wall switch box. 3) Connect the Dimmer in accordance with one of the diagrams attached in the manual. 4) Switch on the mains voltage. 5) Wait for the calibration process to end. Light may blink. The device will be switched off once the process is completed. 6) Set the main Z-Wave controller into learning mode. 7) Quickly, three times press the B-button or key connected to the S1 terminal. 8) Wait for the device to be included into the system. Successful inclusion will be confirmed by the controller. 9) Arrange the antenna and close the wall switch box. 4 Device Wake-Up The Fibaro Dimmer 2 is powered with mains voltage so it is always awake. 6 Additional Special Features Active power and energy metering functionality Soft start function Memory of the last lighting level settings Z-Wave range tester LED diode 5 Factory Reset 1) Disconnect the power supply, remove the Dimmer from the wall switch box, than connect the power supply. 2) Locate the B-button on the housing. 3) Click and hold the B-button to enter the menu mode. 4) Release and click the B-button to choose ""Device reset"" option in the menu that is signaled with the yellow LED indicator colour. 5) After few seconds the device will be restarted, which is signaled with the red LED indicator colour and entering the calibration mode. Note! Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
