Certification Number	ZC10-17035459

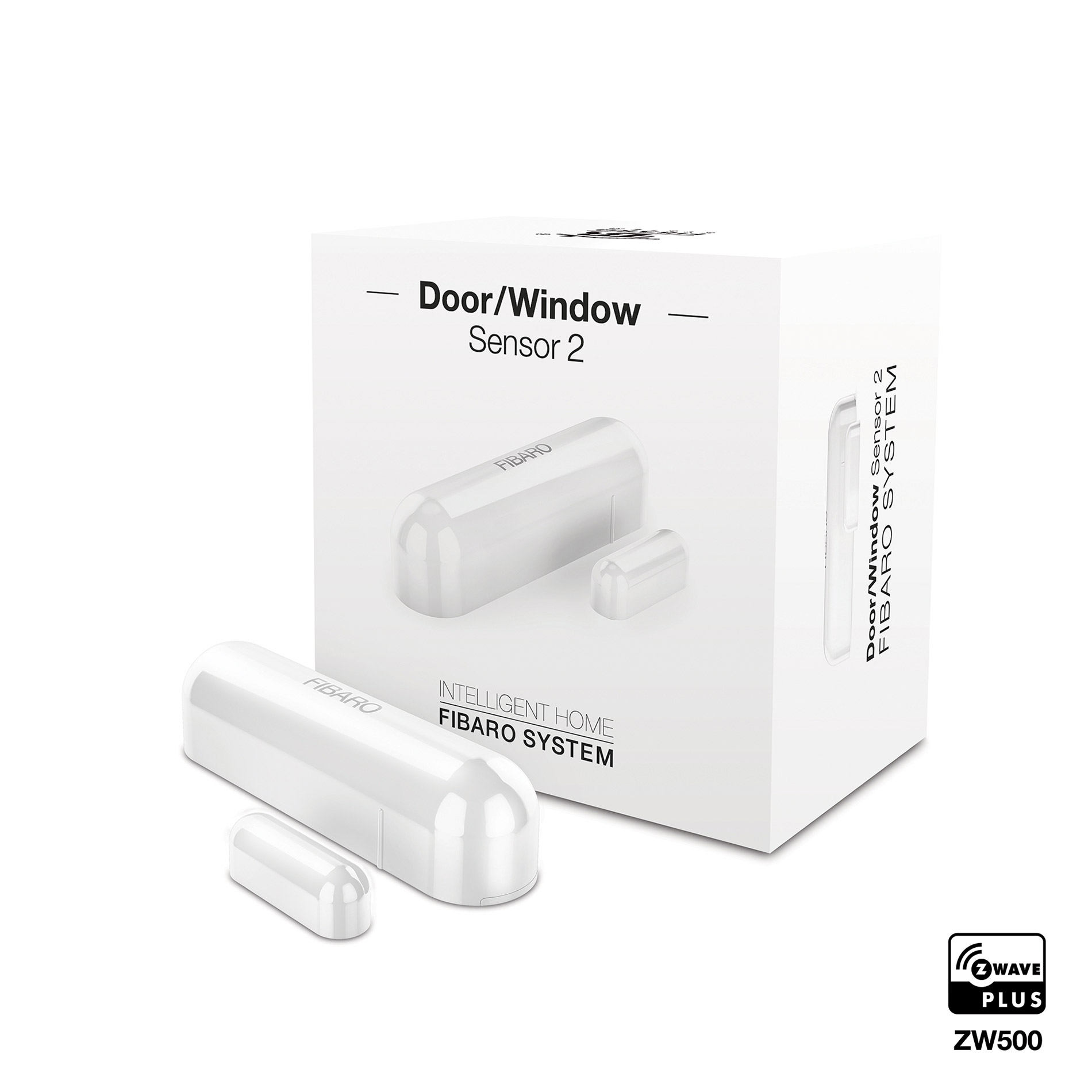

Name	FIBARO Door/Window Sensor 2
Short Description	FIBARO Door/Window Sensor 2 is a wireless, battery powered, Z-Wave Plus compatible magnetic contact sensor.
Long Description	FIBARO Door/Window Sensor 2 is a wireless, battery powered, Z-Wave Plus compatible magnetic contact sensor. Changing the device’s status will automatically send signal to the Z-Wave controller and associated devices. In addition the FIBARO Door/Window Sensor 2 is equipped with a built-in temperature sensor. Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet.
Brand	FIBARO
Product Identifier	FGDW-002
OEM Version	HW: 2 FW: 3.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x010F
Product Type ID	0x0702
Product ID	0x1000
User Icon	0x0C06
Installer Icon	0x0C06
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGDW-002-EN-T-v0.3.2.pdf
Features	Feature Values Supported Notification Types Value Heat Alarm Access Control Home Security Power Management Battery Quantity Value 1 Battery Type Value ER14250 (½AA) Firmware Updatable Value Updatable by Consumer by RF Sensors Value Air Temperature
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (main controller by default). 2 5 0 2nd Association Group – “On/Off” is assigned to the device status - Hall effect sensor (sends Basic Set command frames). 3 5 0 3rd Association Group – “Tamper” is assigned to the TMP switch (sends alarm command frames).
Configuration Parameters	Parameter Number Name Description Format Flag Advanced Size Min Value Max Value Default Value Parameter Values 3 Associations in Z-Wave network Security Mode This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network Security Mode. It does not apply to 1st group Lifeline. 0 - none of the groups sent as secure 1 - 2nd group On-Off sent as secure 2 - 3rd group Tamper sent as secure 3 - 2nd and 3rd group sent as secure 0 Yes 1 0 3 3 From To Description 0 0 none of the groups sent as secure 1 1 2nd group On-Off sent as secure 2 2 3rd group Tamper sent as secure 3 3 2nd and 3rd group sent as secure 11 2nd association group triggers Parameter defines events which result in sending on-off commands to devices added to the 2nd association group. These commands are sent alternately to switch the devices on and off. 0 - switch after opening and closing 1 - switch after opening (parameter 12) 2 - switch after closing (parameter 13) 0 Yes 1 0 2 0 From To Description 1 1 switch after opening (parameter 12) 2 2 switch after closing (parameter 13) 0 0 switch after opening and closing 1 Door window state This parameter allows to set in what state is door window when the magnet is close to the sensor. 0 - closed when magnet near 1 - opened when magnet near 0 Yes 1 0 1 0 From To Description 0 0 closed when magnet near 1 1 opened when magnet near 2 Visual LED indications This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life. 1 - indication of opening-closing status change 2 - indication of wake up (1 x click or periodical) 4 - indication of device tampering NOTE Parameter 2 values may be combined, e.g. 1+2=3 means that in -dications for opening/ closing and waking up are enabled. 0 Yes 1 0 4 0 From To Description 1 1 indication of opening-closing status change 2 2 indication of wake up (1 x click or periodical) 4 4 indication of device tampering 51 Temperature reports threshold This parameter defines the change of temperature in comparison with last reported, resulting in temperature report being sent to the main controller. 0 - temperature reports based on threshold disabled 1-300 - temperature threshold (0.1-30C, 0.1C step) NOTE Parameter 51 is active only if parameter 50 is not set to 0. Temperature measurement is performed before sending any report (regardless of parameter no. 50). Excessive reporting can affect battery lifetime. Reporting on the basis of temperature change (parameter no. 51) is recommended. 0 Yes 2 0 300 10 From To Description 0 0 temperature reports based on threshold disabled 1 300 temperature threshold (0.1-30C, 0.1C step) 52 Interval of temperature reports This parameter determines how often the temperature reports will be sent to the main controller (regardless of parameters 50 and 51). 0 - periodic temperature reports disabled 300-32400 - time in seconds 0 Yes 2 0 32400 0 From To Description 0 0 periodic temperature reports disabled 300 32400 time in seconds 53 Temperature offset The value to be added to the actual temperature, measured by the sensor (temperature compensation). - 1000–1000 (-100–100C, 0.1C step) 0 Yes 2 -1000 1000 0 From To Description -1000 1000 (-100–100C, 0.1C step) 54 Temperature alarm reports Temperature alarms reported to the Z-Wave controller. Thresholds are set in parameters 55 and 56. 0 - temperature alarms disabled 1 - high temperature alarm 2 - low temperature alarm 3 - high and low temperature alarms enabled. 0 Yes 1 0 3 0 From To Description 0 0 temperature alarms disabled 1 1 high temperature alarm 2 2 low temperature alarm 3 3 high and low temperature alarms enabled 55 High temperature alarm threshold If temperature is higher than set value, overheat notification will be sent and high temperature scene will be triggered (if activated). 1-600 (0.1-60C, 0.1C step) 0 Yes 2 1 600 350 From To Description 1 600 (0.1-60C, 0.1C step) 56 Low temperature alarm threshold If temperature is lower than the set value, underheat notification will be sent and low temperature scene will be triggered (if activated). 0-599 (0-59.9C, 0.1C step) 0 Yes 2 0 599 100 From To Description 0 599 (0-59.9C, 0.1C step) 31 Tamper - reporting alarm cancellation Reporting cancellation of tamper alarm to the controller and 3rd association group. 0 - do not send tamper cancellation report 1 - send tamper cancellation report 0 Yes 1 0 1 1 From To Description 1 1 send tamper cancellation report 0 0 do not send tamper cancellation report 50 Interval of temperature measurements This parameter defines how often the temperature will be measured. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten. 0 - temperature measurements disabled 5-32400 - time in seconds 0 Yes 2 0 32400 300 From To Description 0 0 temperature measurements disabled 5 32400 time in seconds
Texts	ID Description Value 2 Exclusion 1) Place the Door/Window Sensor 2 within the direct range of your Z-Wave controller. 2) Set the main controller into remove mode (see the controller’s manual). 3) Quickly, three times press one of the TMP buttons (while the other button is pressed). 4) Wait for the removing process to end. 5) Successful removing will be confirmed by the Z-Wave controller’s message. 4 Device Wake-Up The Door/Window Sensor 2 needs to be woken up to receive informa¬tion about the new configuration from the controller, like parameters and associations. 1) To wake up the sensor manually, click one of the TMP buttons (while the other button is pressed). 1 Inclusion 1) Place the Door/Window Sensor 2 within the direct range of your Z-Wave controller. 2) Set the main controller in (security/non-security) add mode (see the controller’s manual). 3) Click the Button at least six times. 4) Quickly, three times press one of the TMP buttons (while the other button is pressed). 5) Wait for the adding process to end. 6) Successful adding will be confirmed by the Z-Wave controller’s message. 5 Factory Reset Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1) Open the cover. 2) Remove the battery. 3) Install the battery while holding both TMP buttons. 4) Release the TMP button within 5 seconds. 5) Visual indicator will blink 3 times to confirm launching of reset procedure. 6) Wait around 30s for the resetting process to end, do not remove the battery. 7) Visual LED indicator will blink 6 times to confirm the reset. *Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.
Supported Notification Types	Notification Type Event / State Heat Alarm (Refer to parameters): State idle Access Control (Refer to parameters): State idle Home Security (Refer to parameters): State idle Power Management (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature
Supports NWI	Yes
Supports Explorer Frames	Yes
