Certification Number	ZC10-15110001

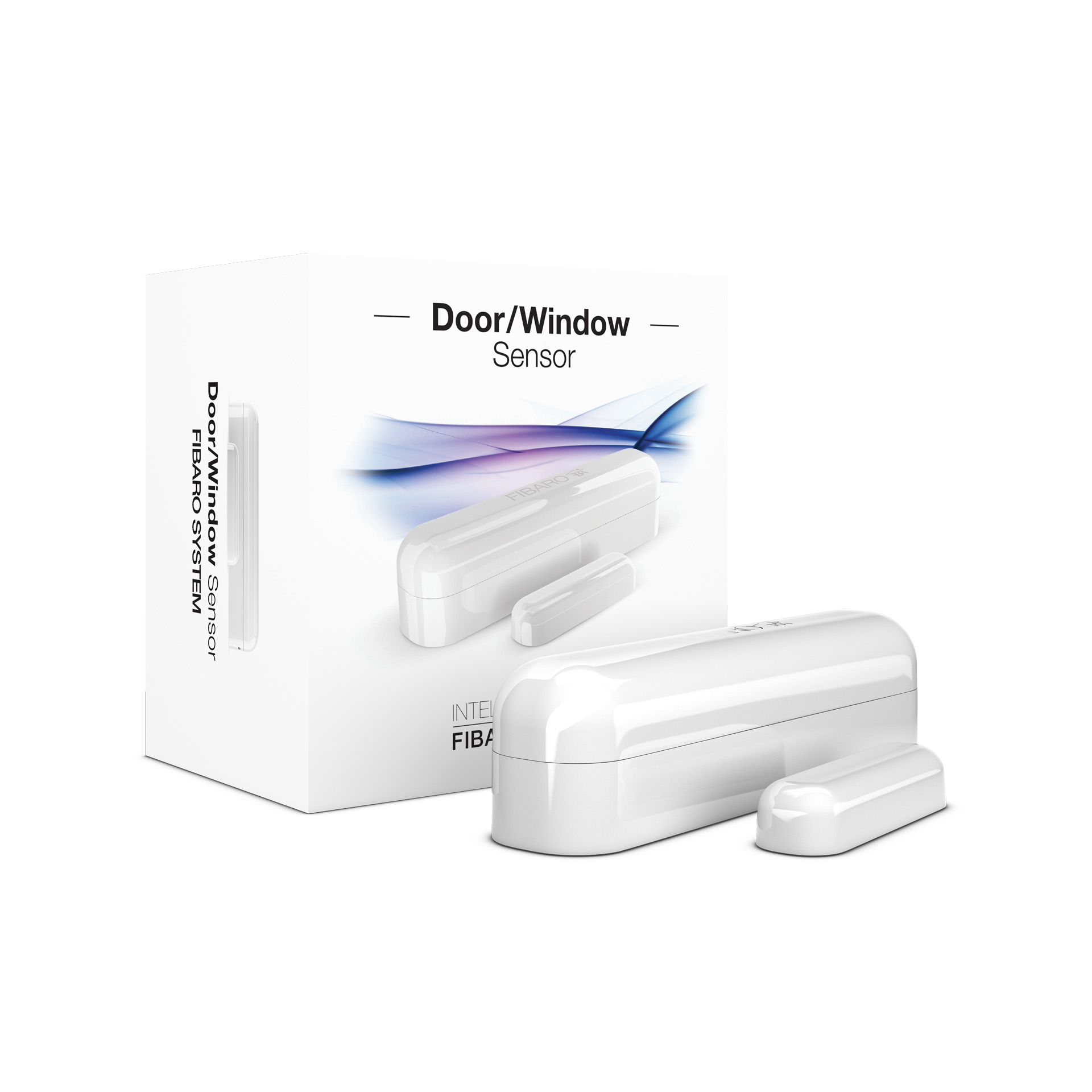

Name	FIBARO Door/Window Sensor
Short Description	FIBARO Door/Window is a wireless, battery powered, Z-Wave compatible reed sensor.
Long Description	FIBARO Door/Window Sensor is a wireless, battery powered reed sensor compatible with the Z-Wave Plus standard. Changing the device’s status will automatically send signal to the Z-Wave controller and associated devices. Sensor can be used to trigger scenes and everywhere there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet. In addition the FIBARO Door/Window Sensor supports one DS18B20 temperature sensor and has one potential free input. The FIBARO Door / Window Sensor is available in seven colors: white, silver, black, ivory, cappuccino, truffle and dark chocolate. https://www.youtube.com/watch?v=K35uFXoa5c0
Brand	FIBARO
Product Identifier	FGK-10X
OEM Version	02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x010F
Product Type ID	0x0702
Product ID	0x1002
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGK-10x-EN-T-v1.0 13.10.15.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline. Type of frame sent by the device when the association group is activated: DEVICE_RESET_LOCALLY_NOTIFICATION; NOTIFICATION_REPORT; BATTERY_REPORT; SENSOR_MULTILEVEL_REPORT. 2 5 0 Control is assigned to the magnetic sensor and IN input. Opening or closing will result in sending BASIC_SET control command to associated devices. 3 5 0 Alarm reports alarms. Alarm frame (SENSOR_ALARM_REPORT) will be sent to associated devices once such an event has been detected. Works ONLY if external sensor connected – unused if Door/Window Sensor selected in parameter 20. 5 5 0 Tamper ZW3 is assigned to the tamper alarm. Alarm frame will be send to associated devices once tampering has been detected. Group provides backward compatibility with controllers not supporting Z-Wave+. Only such controllers should be added to this group. Type of frame sent by the device when the association group is activated: SENSOR_ALARM_REPORT. 4 5 0 Sensor ZW3 is assigned to the magnetic sensor and IN input. Opening or closing will result in sending BASIC_SET control command to associated devices. Group provides backward compatibility with controllers not supporting Z-Wave+. Only such controllers should be added to this group. Type of frame sent by the device when the association group is activated: SENSOR_BINARY_REPORT.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 54 TEMPERATURE ALARM REPORTS Temperature alarms reported to the main Z-Wave controller. Thresholds may be set in parameters no. 55 and 56. 0 1 0 0 0 From To Description 1 1 high temperature alarm 0 0 temperature alarms disabled 3 3 high and low temperature alarms enabled 2 2 low temperature alarm 31 REPORTING TAMPER ALARM CANCELLATION Reporting the cancellation of tamper alarm to 5th association group. 0 1 0 0 1 From To Description 1 1 Send tamper cancellation report 0 0 Do not send tamper cancellation report 52 TEMPERATURE REPORTS INTERVAL This parameter determines how often the temperature reports will be sent to the main controller. NOTE: Temperature measurement is performed before sending any report (regardless of parameter no. 50). Excessive reporting can affect battery lifetime. Reporting on the basis of temperature change (parameter no. 51) is recommended. 0 2 0 0 0 From To Description 0 0 periodic temperature reports disabled 5 32400 time in seconds, 5 seconds - 9 hours 55 HIGH TEMPERATURE ALARM THRESHOLD If temperature is higher than the set value, high temperature notification will be sent and high temperature scene will be triggered (if activated). 0 2 0 0 540 From To Description 0 1000 0 - 100 degrees Celsius, in 0,1 degrees steps 2 DOOR/WINDOW/ALARM STATUS Parameter defines state of the sensor when the magnet is close. If you connect the alarm sensor, it determines the output type. Parameter inactive in Switch Mode (parameter 1 set to 1). 0 1 0 0 0 From To Description 1 1 Door/window opened 0 0 Door/window closed 4 RANGE TEST AFTER DOUBLE CLICK Allows to enable activation of Z-Wave range test with double click of a TMP button. 0 1 0 0 0 From To Description 1 1 Enabled 0 0 Disabled 11 COMMANDS SENT TO 2ND ASSOCIATION GROUP Command frames sent to devices added to the 2nd association group. 0 1 0 0 2 From To Description 0 0 ON 1 1 OFF 2 2 ON and OFF 50 INTERVAL OF TEMPERATURE MEASURING This parameter defines how often the temperature will be measured. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten. 0 2 0 0 300 From To Description 0 0 temperature measurements disabled 5 32400 time in seconds, 5 seconds - 9 hours 53 TEMPERATURE OFFSET The value to be added to the actual temperature, measured by the sensor (temperature compensation). 0 2 0 0 0 From To Description -1000 1000 -100 – 100 degrees Celsius, in 0,1 degrees steps 51 TEMPERATURE REPORT THRESHOLD This parameter defines the change of temperature in comparison with last reported, resulting in temperature report being sent to the main controller. NOTE: Parameter 51 is active only if parameter 50 is not set to 0. 0 2 0 0 10 From To Description 1 300 temperature threshold (0.1-30 degrees Celsius, 0.1 degrees step) 0 0 temperature reports based on threshold disabled 71 ALARM BROADCAST Settings for broadcasting ON/OFF commands, sensor alarm and tamper alarm. Value other than 0 means alarms are sent in Broadcast Mode, to all devices only within the range of the device. They are not repeated by the mesh network. NOTE: Values of parameter 71 may be combined, e.g. 1+2=3 means ON/OFF commands and sensor alarm are sent in Broadcast Mode. 0 1 0 0 0 From To Description 0 0 broadcasts inactive 2 2 sensor alarm broadcast active 4 4 sensor alarm broadcast active 1 1 ON/OFF commands broadcast active 3 LED INDICATIONS Paramater defines events indicated by the LED. Reducing number of them results in longer battery lifetime. Default setting: 6 (indication of wake up and device tampering). Parameter values may be combined, e.g. 1+2+4=7, means that all indications are enabled. 0 1 0 0 6 From To Description 0 0 no indications 1 1 indication of opening/closing status change (input IN) 2 2 indication of wake up (1 x click or using time interval) 4 4 indication of device tampering 1 OPERATION MODE Parameter defines device operation mode. CAUTION: Do not install the magnet if the device is not used as a Door/Window Sensor, as it might lead to the malfunction of the device. 0 1 0 0 0 From To Description 1 1 External switch 0 0 Door/Window Sensor or external alarm sensor (type - see par. 20) 10 2ND ASSOCIATION GROUP TRIGGERS Parameter defines events which result in sending on/off commands to devices added to the 2nd association group. These commands are sent alternately to switch the devices on and off. Commands represent the values of BASIC SET command frames. Parameter is inactive in external button mode (parameter 1 set to 1). 0 1 0 0 0 From To Description 2 2 switch after closing 1 1 switch after opening 0 0 switch after opening and closing
Texts	ID Description Value 1 Inclusion 1) Open the cover. 2) Remove the battery blocker. 3) Close the cover. 4) Locate the sensor nearby the main Z-Wave controller. 5) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 6) Quickly, triple click the TMP button located on the bottom of the casing. 7) Wait for the device to be added to the system. Successful adding will be confirmed by the controller. 9) Install the device using the attached self-adhesive pads. 5 Factory Reset Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. 1) Take off the Sensor's cover and remove battery. 2) Install the battery while holding both TMP buttons (after mounting the device, one button is constantly pressed by the cover). 3) Release the TMP button within 5 seconds. 4) LED will blink 3 times to confirm launching of reset procedure. 5) Reset procedure may last up to 30 seconds. Do not remove the battery until reset is complete. 6) Reset will be confirmed by the six blinks of the LED. 2 Exclusion 1) Place the device within direct range of the Z-Wave controller. 2) Make sure that Sensor's cover is closed. 3) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 4) Quickly, triple click the TMP button. 5) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller. 4 Device Wake-Up FIBARO Door/Window Sensor will wake up at a defined time interval and will ALWAYS try to communicate with the main controller. Setting wake up interval to 0 disables sending Wake Up Notification frame automatically. There is a possibility to wake up the device manually by a single TMP button click.
Supports NWI	Yes
Supports Explorer Frames	Yes
