Product Recognition
Certification Number	ZC10-16025002

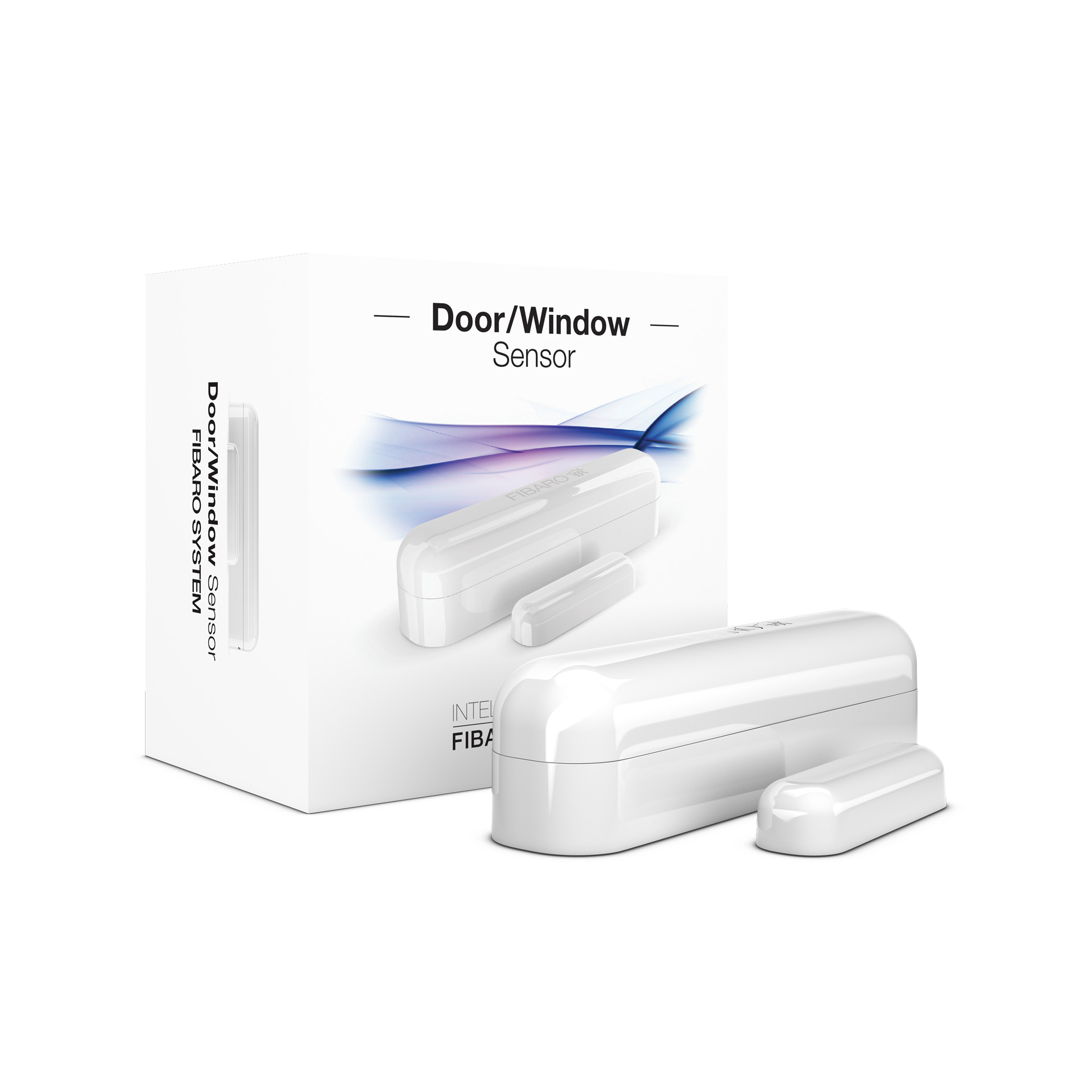

Name	FIBARO Door/Window Sensor
Short Description	FIBARO Door/Window is a wireless, battery powered, Z-Wave compatible reed sensor.
Long Description	FIBARO Door/Window Sensor is a wireless, battery powered reed sensor compatible with the Z-Wave Plus standard. Changing the device’s status will automatically send signal to the Z-Wave controller and associated devices. Sensor can be used to trigger scenes and everywhere there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet. In addition the FIBARO Door/Window Sensor supports one DS18B20 temperature sensor and has one potential free input. The FIBARO Door / Window Sensor is available in seven colors: white, silver, black, pearl powder, cappuccino, truffle surprise and dark chocolate. https://www.youtube.com/watch?v=K35uFXoa5c0
Brand	FIBARO
Product Identifier	FGK-10X
OEM Version	HW: 1 FW: 3.02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x010F
Product Type ID	0x0701
Product ID	0x2001
User Icon	0x0C06 (changes with parameter 20)
Installer Icon	0x0C06 (changes with parameter 20)
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGK-10x-US-T-v1.0.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (main controller by default). 2 5 0 “Control” is assigned to the device status (reed sensor and IN input) - sending BASIC SET control frames to the associated devices. 3 5 0 “Alarm” is assigned to the device status - sending alarm frames to the associated devices. Its value may be modified via advanced parameters. 4 5 0 “Sensor ZW3” is assigned to the device status (reed sensor and IN input) - sending BASIC SET control frames to the associated devices. This group provides backward compatibility with controllers not supporting Z-Wave+. 5 5 0 “Tamper ZW3” is assigned to the TMP switch - sending alarm frames to the associated devices in case a TMP button is released. This group provides backward compatibility with controllers not supporting Z-Wave+.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 4 Range test after double click Allows to enable activation of Z-Wave range test with double click of a TMP button. 0 1 0 0 0 From To Description 1 1 enabled 0 0 disabled 31 Reporting tamper alarm cancellation Reporting cancellation of tamper alarm to the controller and 5th association group. 0 1 0 0 1 From To Description 0 0 do not send tamper cancellation report 1 1 send tamper cancellation report 11 Commands sent to 2nd association group Command frames sent to devices added to the 2nd association group. 0 1 0 0 2 From To Description 1 1 OFF 2 2 ON & OFF 0 0 ON 2 Door/Window or alarm status Parameter defines state of the sensor when the magnet is close. If the alarm sensor is connected, it determines the output type. Parameter inactive in external button mode (parameter 1 set to 1). 0 1 0 0 0 From To Description 1 1 door/window opened 0 0 door/window closed 10 2nd association group triggers Parameter defines events which result in sending on/off commands to devices added to the 2nd association group. These commands are sent alternately to switch the devices on and off. Commands represent the values of BASIC SET command frames. Parameter is inactive in external button mode (parameter 1 set to 1). 0 1 0 0 0 From To Description 2 2 switch after closing 0 0 switch after opening and closing 1 1 switch after opening 1 Operation mode Parameter defines device operation mode. CAUTION Do not install the magnet if the device is not used as a Door/Window Sensor, as it might lead to the malfunction of the device. 0 1 0 0 0 From To Description 0 0 Door/Window Sensor or external alarm sensor 1 1 external button 50 Interval of temperature measurements This parameter defines how often the temperature will be measured. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten. 0 2 0 0 300 From To Description 0 0 temperature measurements disabled 5 32400 time in seconds 51 Temperature reports threshold This parameter defines the change of temperature in comparison with last reported, resulting in temperature report being sent to the main controller. 0 2 0 0 10 From To Description 0 0 temperature reports based on threshold disabled 1 300 temperature threshold 53 Temperature offset The value to be added to the actual temperature, measured by the sensor (temperature compensation). 0 4 0 0 0 From To Description -1000 1000 -100 – 100 degrees Celsius, in 0,1 degrees steps 55 High temperature alarm threshold If temperature is higher than set value, overheat notification will be sent and high temperature scene will be triggered (if activated). 0 2 0 0 540 From To Description 0 1000 0 - 100 degrees Celsius, in 0,1 degrees steps 71 Alarm broadcast Settings for broadcasting ON/OFF commands, sensor alarm and tamper alarm. Value other than 0 means alarms are sent in Broadcast Mode, to all devices only within the range of the device. They are not repeated by the mesh network. NOTE Values of parameter 71 may be combined, e.g. 1+2=3 means ON/OFF commands and sensor alarm are sent in Broadcast Mode. 0 1 0 0 0 From To Description 4 4 tamper alarm broadcast active 0 0 broadcasts inactive 1 1 ON/OFF commands broadcast active 2 2 sensor alarm broadcast active 52 Interval of temperature reports Interval of temperature reports. NOTE Temperature measurement is performed before sending any report (regardless of parameter no. 50). Excessive reporting can affect battery lifetime. Reporting on the basis of temperature change (parameter no. 51) is recommended. 0 2 0 0 0 From To Description 0 0 periodic temperature reports disabled 5 32400 time in seconds 54 Temperature alarm reports Temperature alarms reported to the Z-Wave controller. Thresholds are set in parameters 55 and 56. 0 1 0 0 0 From To Description 1 1 high temperature alarm 2 2 low temperature alarm 3 3 high and low temperature alarms enabled 0 0 temperature alarms disabled 56 Low temperature alarm threshold If temperature is lower than the set value, underheat notification will be sent and low temperature scene will be triggered (if activated). 0 2 0 0 40 From To Description -300 700 -30 - 70 degrees Celsius, in 0,1 degrees steps 3 Visual LED indications This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life. NOTE Values of parameter 3 may be combined, e.g. 1+2=3 means opening/closing and wake up will be indicated by the visual indicator. 0 1 0 0 6 From To Description 1 1 indication of opening/closing status change (input IN) 2 2 indication of wake up (1 x click or periodical) 4 4 indication of device tampering 0 0 no indications
Texts	ID Description Value 2 Exclusion 1) Place the device within direct reange of the Z-Wave controller. 2) Make sure that Sensor's cover is closed. 3) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 4) Quickly, triple click the TMP button. 5) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller. 1 Inclusion 1) Open the cover. 2) Remove the battery blocker. 3) Close the cover. 4) Locate the sensor nearby the main Z-Wave controller. 5) Set the main Z-Wave controller into adding mode (see main controller’s operating manual). 6) Quickly, triple click the TMP button located on the bottom of the casing. 7) Wait for the device to be added to the system. 8) Successful adding will be confirmed by the controller. 9) Install the device using the attached self-adhesive pads. 4 Device Wake-Up FIBARO Door/Window Sensor will wake up at a defined time interval and will ALWAYS try to communicate with the main controller. Setting wake up interval to 0 disables sending Wake Up Notification frame automatically. There is a possibility to wake up the device manually by a single TMP button click. 5 Factory Reset Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. 1) Take off the Sensor's cover and remove battery. 2) Install the battery while holding both TMP buttons (after mounting the device, one button is constantly pressed by the cover). 3) Release the TMP button within 5 seconds. 4) LED will blink 3 times to confirm launching of reset procedure. 5) Reset procedure may last up to 30 seconds. Do not remove the battery until reset is complete. 6) Reset will be confirmed by the six blinks of the LED.
Supports NWI	Yes
Supports Explorer Frames	Yes
