Product Recognition
Certification Number	ZC10-15080018

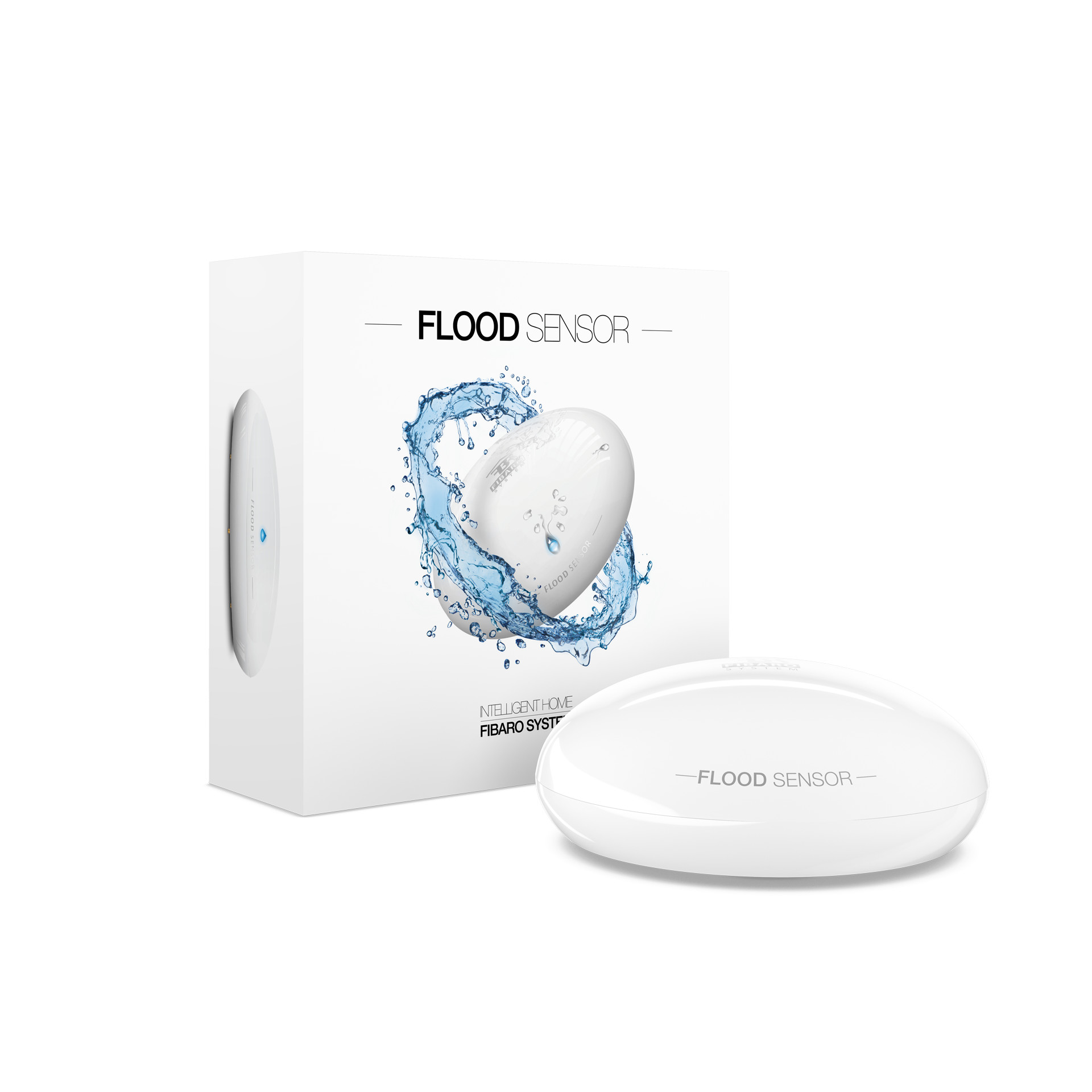

Name	FIBARO Flood Sensor
Short Description	FIBARO Flood Sensor is a universal, battery or VDC powered, Z-Wave compatible, flood and temperature sensor, designed to be placed on a floor or on a wall.
Long Description	FIBARO Flood Sensor is a universal, Z-Wave compatible, flood and temperature sensor. Device can be battery (ca. 2 years battery life) or VDC powered (12 or 24 VDC). FIBARO Flood Sensor is designed to be placed on the floor or on a wall with a flood sensor probes extended by connected wire. Flood alarm is sent to Z-Wave network devices or additionally to any alarm system controller, through opening a NC contact. The device has built-in temperature sensor, monitoring temperature of e.g. floor, LED indicator, acoustic alarm, and is equipped with a tilt sensor, reporting tilt or movement e.g. when someone has taken the Sensor from its original location. LED diode signals flood, operating mode or the Z-Wave network communication range. FIBARO Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of substantial inundation of water. Flood Sensor is compatible with any Z-Wave or Z-Wave+ Controller. https://www.youtube.com/watch?v=8JRxUoHbEN8
Brand	FIBARO
Product Identifier	FGFS-101
OEM Version	02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x010F
Product Type ID	0x0B01
Product ID	0x1002
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGFS-101-EN-T-v1.0-5.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (the main controller by default - the device reports its status to the main controller). Type of frame sent by the device when the association group is activated: DEVICE_RESET_LOCALLY_NOTIFICATION; NOTIFICATION_REPORT; BATTERY_REPORT; SENSOR_MULTILEVEL_REPORT. 2 5 0 “Flood Control” is assigned to the device status - sending the BASIC SET control frame to the associated devices 4 5 0 “Tamper Alarm” is assigned to a TMP button and tilt sensor - sending the NOTIFICATION REPORT control frame to the associated devices in case a TMP button is released or a tilt sensor triggered (depending on parameter 74 settings). 3 5 0 “Flood Alarm” is assigned to the device status - sending the NOTIFICATION REPORT control frame to the associated devices.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Alarm cancellation delay Determines time period, in seconds, by which a Flood Sensor will retain the flood state after the flooding itself, has ceased. Sensor will keep on reporting flooding to the main controller. This parameter settings do not affect acoustic and visual alarms, which turn off immediately after flooding ceases. 0 2 0 0 0 From To Description 0 3600 in seconds, each 1s 75 Visual and audible alarms duration The user can silence the Flood Sensor. Because the Sensor’s alarm may last for a long time, it is possible to turn off visual and audible alarm signalling to save battery. The parameter determines time after which alarm will become quiet - still active but the device will go into battery saving mode. Visual or acoustic alarm will be reactivated after time specified in the parameter 76. When alarm status ceases, alarm will be turned off immediately. The value of 0 means visual and acoustic alarms are active indefinitely. In battery power mode the Sensor will never go to sleep which may shorten battery life significantly. Note! Parameter 75 is ignored when parameter 2 is set to 0. Available settings: 0 - alarms active indefinitely 1-65535 - time in seconds 0 4 0 0 0 From To Description 0 0 alarms active indefinitely 1 65535 time in seconds 7 Forced dimming level / roller blind opening level, when sending turn on / open command to 2nd association group devices In case of alarm frames, alarm priority is determined. Available settings: 0 2 0 0 255 From To Description 1 99 forced level 255 255 turn a device on 50 Low temperature alarm threshold The parameter stores a temperature value, below which visual indicator blinks with a colour determined by a Parameter 61 settings. By default the visual indicator blinks blue. 0 2 0 0 1500 From To Description -10000 10000 each 0.01 9 Alarm cancelling or turning a device off (Basic) command frame deactivation Allows for deactivating device turn off and alarm cancellation functions for the devices assigned to 2nd and 3rd association group). Setting the parameter’s value to 0 results in stopping BASIC SET = 0 and ALARM WATER = 0 control frames from being sent. After sending flood alarm report the device will keep on reporting flooding after the it has ceased. Such a state can be cancelled by choosing alarm cancellation from the MENU, marked with green indicator colour. 0 1 0 0 1 From To Description 1 1 alarm (flooding) cancellation active 0 0 alarm (flooding) cancellation inactive 10 Temperature measurement interval Time interval, in seconds, between consecutive measurements of temperature done by built-in temperature sensor and battery level. If a temperature differs from previously reported by a value determined in parameter 12, new temperature value is reported. If a battery level changes, the device reports a battery status change. The parameter is relevant when using a Flood Sensor in a battery power mode - longer time interval means less frequent communication resulting in extended battery life. After consecutive FAILED and SUCCESSFUL communication attempts, the Sensor will go to standby mode. 0 4 0 0 300 From To Description 1 65535 in seconds 51 High temperature alarm threshold The parameter stores a temperature value, above which visual indicator blinks with a colour determined by the Parameter 62 settings. By default the visual indicator blinks red. Note! The main controller does not interpret negative numbers as decimals. That’s why read value may be different than entered. Negative numbers are coded in U2 standard. Please refer to Decimal/Hexadecimal (U2)/Value in controller table in manual 0 2 0 0 3500 From To Description -10000 10000 each 0.01 61 Low temperature alarm indicator colour Parameter stores RGB colour value. 0 4 0 0 255 From To 0 16777215 62 High temperature alarm indicator colour Parameter stores RGB colour value. A main controller interprets colours as a sum of it component colours value. Each colours value is a number from 0 to 255. Note! A main controller interprets colours as a sum of it component coulours value. Each colours is a number from 0 to 255. Please refer to colour/Decimal value table in manual. 0 4 0 0 16711680 From To 0 16777215 63 Managing a visual indicator under standard operation Parameter determines visual indicator’s operation. Set to 0 turns the indicator off, saving a battery life. 0 1 0 0 2 From To Description 2 2 Visual indicator indicates the temperature continuously, only in constant power mode 1 1 Visual indicator indicates the temperature (blink) every Temperature Measurement Interval (Parameter 10, constant current and battery) or Wake Up Interval (battery mode) 0 0 Visual indicator does not indicate the temperature 73 Temperature measurement compensation Parameter stores a temperature value to be added to or deducted from the current temperature measured by internal temperature sensor in order to compensate the difference between air temperature and temperature at the floor level. 0 2 0 0 0 From To -10000 10000 74 Alarm frame sent to 1st and 4th Association Group activation (MOVEMENT_TAMPER / BUTTON_TAMPER) The device is able to turn on alarms resulting from sensor’s vibrations e.g. when the sensor is moved, or the TMP button released. 0 1 0 0 2 From To Description 0 0 tamper alarms inactive 2 2 button tamper alarm active 3 3 button and movement tampers alarm active 1 1 button tamper alarm active 77 Flood sensor functionality turned off Allows for turning of the internal flood sensor. Tamper and built in temperature sensor will remain active. 0 1 0 0 0 From To Description 0 0 Default flood sensor operation (flood detection, reactions) 1 1 Built in flood sensor TURNED OFF (does not change its state in the main controller, does not send Alarms and Basic Set frames with flood state changes. Always visible in the main controller as turned off) 78 Associations in Z-Wave network security mode This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st “Lifeline “group. 0 1 0 0 7 From To Description 1 2 2nd group Flood Control sent as secure 0 0 none of the groups sent as secure 4 4 group Tamper sent as secure 2 3 group Flood Alarm sent as secure 76 Alarm frame / Basic Set frame retransmission time when retaining flood alarm Parameter determines a time period after which an alarm frame will be retransmitted. The value of 0 cancels an alarm frame retransmission. Note! In case a time period set in parameter 76 is shorter then the one specified in parameter 75, the device will not quiet the alarm, it will remain active. 0 4 0 0 0 From To Description 1 65535 time in seconds 0 0 retransmission inactive 2 Acoustic and visual signals On/Off in case of flooding The parameter allows for deactivation visual and acoustic alarm. Parameter allows for increasing a battery life. Settings changes will not affect the Sensors communication with the main controller - commands to association groups, alarms and reports will still be sent. 0 1 0 0 3 From To Description 1 1 acoustic alarm inactive, visual alarm active 2 2 acoustic alarm active, visual alarm inactive 3 3 acoustic and visual alarms active 0 0 acoustic and visual alarms inactive
Texts	ID Description Value 1 Inclusion 1) Open the cover by turning it counter-clockwise. 2) Remove battery blocker. 3) Locate the sensor nearby the main Z-Wave controller. 4) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 5) Quickly, triple click the TMP button located inside the casing. 6) Wait for the device to be included into the system. Successful inclusion will be confirmed by the controller. 7) Close the cover by turning it clockwise. 8) Place the sensor onto a surface prone to flooding. Three electrodes underneath the device should evenly touch the surface. 4 Device Wake-Up FIBARO Flood Sensor will wake up at a defined time interval and will ALWAYS try to communicate with the main controller. There is a possibility to wake up the device manually by clicking the TMP button. 2 Exclusion 1) Open the cover by turning it counter-clockwise. 2) Make sure the sensor is connected to a battery or a DC power supply. 3) Locate the sensor nearby the main Z-Wave controller. 4) Set the main Z-Wave controller into learning mode (see main controller’s operating manual). 5) Quickly, triple click the TMP button located inside the casing. 6) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller. 5 Factory Reset 1) Open the cover by turning it counter-clockwise. 2) Make sure the sensor is connected to a battery or a DC power supply. 3) Press and hold the TMP button for 15-20 seconds until LED glows yellow to confirm entering into 4th menu option. 4) Release and click the TMP button to start reset procedure. 5) The LED glowing red and then turning off will confirm successful reset. Reset completion will be also confirmed by an acoustic signal. Note! Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
