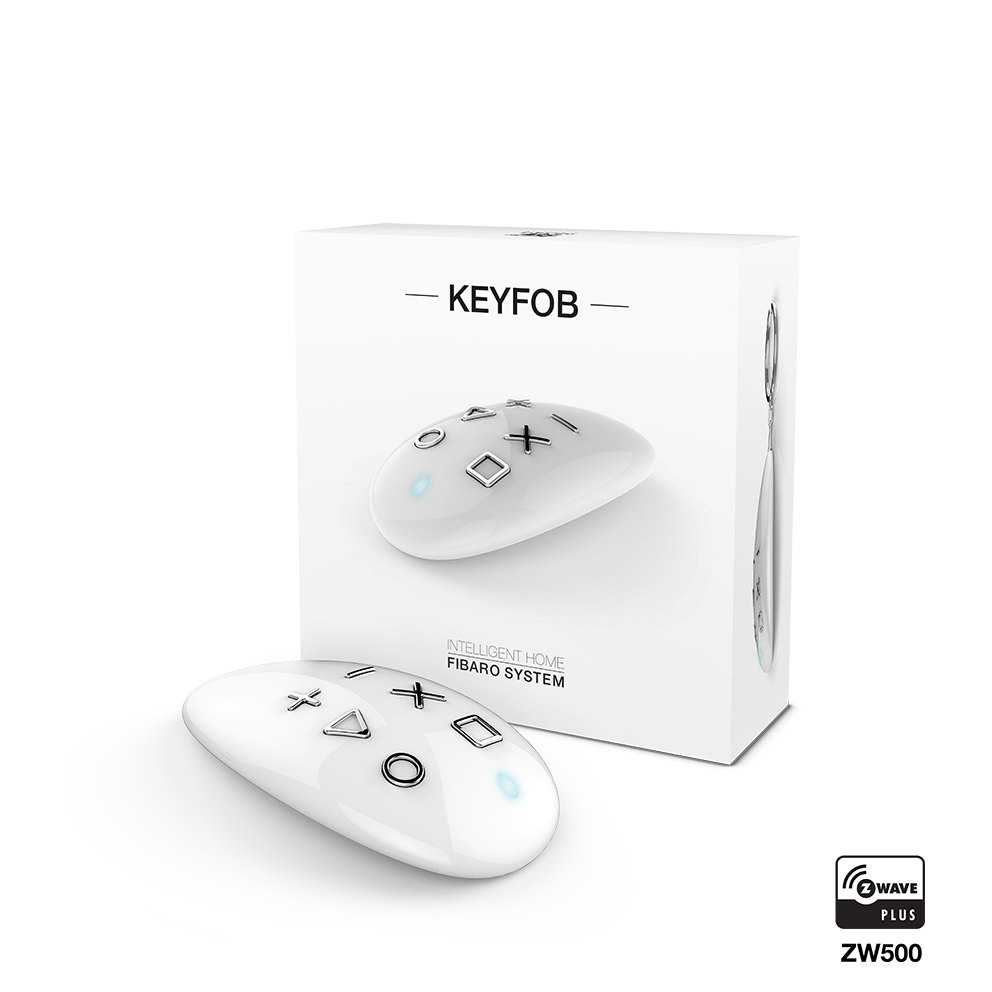

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_PROTECTION_V2

Protection V2

0x75

2

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_CRC_16_ENCAP

CRC16 Encapsulation

0x56

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3

Firmware Update Meta-Data V3

0x7A

3

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V3

Switch Multilevel V3

0x26

3

Manual_Primary_Lang

Product or Owner's Manual

Battery Quantity

Battery Type

Color

Firmware Updatable

Z-Wave Scene Type

2

5

0

“Square - On/Off” is assigned to clicking the □ button and is used to turn on/off associated devices.

3

5

0

“Square - Multilevel” is assigned to clicking and holding the □ button and is used to turn on/off and change level of associated devices.

4

5

0

“Circle - On/Off” is assigned to clicking the ○ button and is used to turn on/off associated devices.

5

5

0

“Circle - Multilevel” is assigned to clicking and holding the ○ button and is used to turn on/off and change level of associated devices.

6

5

0

“Cross - On/Off” is assigned to clicking the x button and is used to turn on/off associated devices.

1

1

0

“Lifeline” reports the device status and allows for assigning single device only (main controller by default).

7

5

0

“Cross - Multilevel” is assigned to clicking and holding the x button and is used to turn on/off and change level of associated devices.

8

5

0

“Triangle - On/Off” is assigned to clicking the Δ button and is used to turn on/off associated devices.

9

5

0

“Triangle - Multilevel” is assigned to clicking and holding the Δ button and is used to turn on/off and change level of associated devices.

10

5

0

“Minus - On/Off” is assigned to clicking the - button and is used to turn on/off associated devices.

11

5

0

“Minus - Multilevel” is assigned to clicking and holding the - button and is used to turn on/off and change level of associated devices.

3

First scene sequence

This parameter allows to set up sequence that activates scene with ID 7. See "Sequences" on page 10 of the manual for more information. 0 - 1st sequence disabled 9-28086 - value of sequence

0

2

0

0

0

4

Second scene sequence

This parameter allows to set up sequence that activates scene with ID 8. See "Sequences" on page 10 of the manual for more information. 0 - 1st sequence disabled 9-28086 - value of sequence

0

2

0

0

0

5

Third scene sequence

This parameter allows to set up sequence that activates scene with ID 9. See "Sequences" on page 10 of the manual for more information. 0 - 3rd sequence disabled 9-28086 - value of sequence

0

2

0

0

0

6

Fourth scene sequence

This parameter allows to set up sequence that activates scene with ID 10. See "Sequences" on page 10 of the manual for more information. 0 - 4th sequence disabled 9-28086 - value of sequence

0

2

0

0

0

7

Fifth scene sequence

This parameter allows to set up sequence that activates scene with ID 11. See "Sequences" on page 10 of the manual for more information. 0- 5th sequence disabled 9-28086 - value of sequence

0

2

0

0

0

8

Sixth scene sequence

This parameter allows to set up sequence that activates scene with ID 12. See "Sequences" on page 10 of the manual for more information 0- 6th sequence disabled 9-28086 - value of sequence

0

2

0

0

0

10

Single button associations - operating mode

This parameter allows to choose operating mode for single button associations. 0- single press switches state to opposite 1- single press switches state to opposite, double press sets to maximum level 2 - single press turns on, double press turns off

0

1

0

0

0

11

Value sent to □ association group

This parameter allows to set value sent to devices in association group. It will result in turning multilevel devices on with set or last level. Value is irrelevant for simple on/off devices. 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on

0

2

0

0

255

1

Lock Mode activation

This parameter allows to activate Lock Mode and set up unlocking sequence. Device will lock after time set in parameter 2 or after pressing and holding selected button. See "Lock Mode" on page 9 of the manual for more information. 0 - Lock Mode disabled 9-28086 - unlocking sequence

0

2

0

0

0

2

Lock Mode - time to lock and locking button

This parameter allows to set time that must elapse from the last press of the button to lock the device and locking button. Setting locking button will deactivate associations and scenes for pressing and holding the selected button. This parameter is irrelevant if parameter 1 is set to 0 (Lock Mode disable). See "Lock Mode" on page 9 of the manual for more information. 0 - Lock Mode disabled 5-1791- calculated value

0

2

0

0

60

17

Paired buttons association for □ and ○

This parameter allows to activate paired buttons association mode for □ and ○ buttons. Paired buttons are dependent and association are sent only to □ groups. ○ turns devices on and increases value, □ turns them off and decreases value. 0 - paired buttons association inactive 1- paired buttons association active

0

1

0

0

0

23

Scene activation for x button

This parameter determines which actions result in sending assigned scene IDs and attributes to the controller. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Held Down & Released NOTE Parameter 23 values may be combined, e.g. 1+2=3 means that pressing button once or twice will result in sending assigned scene ID.

0

1

0

0

9

24

Scene activation for Δ button

This parameter determines which actions result in sending assigned scene IDs and attributes to the controller. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Held Down & Released NOTE Parameter 24 values may be combined, e.g. 1+2=3 means that pressing button once or twice will result in sending assigned scene ID.

0

1

0

0

9

25

Scene activation for - button

This parameter determines which actions result in sending assigned scene IDs and attributes to the controller. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Held Down & Released NOTE Parameter 25 values may be combined, e.g. 1+2=3 means that pressing button once or twice will result in sending assigned scene ID.

0

1

0

0

9

23

Controller Inclusion

1) Place the KeyFob within the direct range of your Z-Wave controller. 2) Set the main Z-Wave controller in (security/non-security) add mode (see the controller’s manual). 3) Press any button three times. 4) Wait for the adding process to end. 5) Successful adding will be confirmed by the Z-Wave controller’s message and green LED colour.

4

Device Wake-Up

The Keyfob needs to be woken up to receive information about the new configuration from the Z-Wave controller, like parameters and associations. To wake up the device press O and + simultaneously or use 1st menu position: 1) Press O and – simultaneously. 2) Press Δ or X until LED glows white. 3) Press + to confirm.

24

Controller Exclusion

1) Place the KeyFob within the direct range of your Z-Wave controller. 2) Set the main Z-Wave controller in remove mode (see the controller’s manual). 3) Press O and – simultaneously. 4) Press Δ or X until LED glows green. 5) Press + to confirm. 6) Wait for the removing process to end. 7) Successful removing will be confirmed by the Z-Wave controller’s message.

5

Factory Reset

Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. There are two ways of resetting the device: • Resetting using the menu 1) Press O and – simultaneously. 2) Press Δ or X until LED glows yellow. 3) Press + to confirm. • Resetting on start-up 1) Remove the battery. 2) Hold O and + while inserting the battery. Successful resetting will be confirmed by smoothly brightening and dimming of the yellow LED colour. Please use this procedure only when the network primary controller is missing or otherwise inoperable
