Product Recognition
Certification Number	ZC10-17035524
Name	FIBARO KeyFob
Short Description	FIBARO KeyFob is a compact, battery-powered, Z-Wave remote.

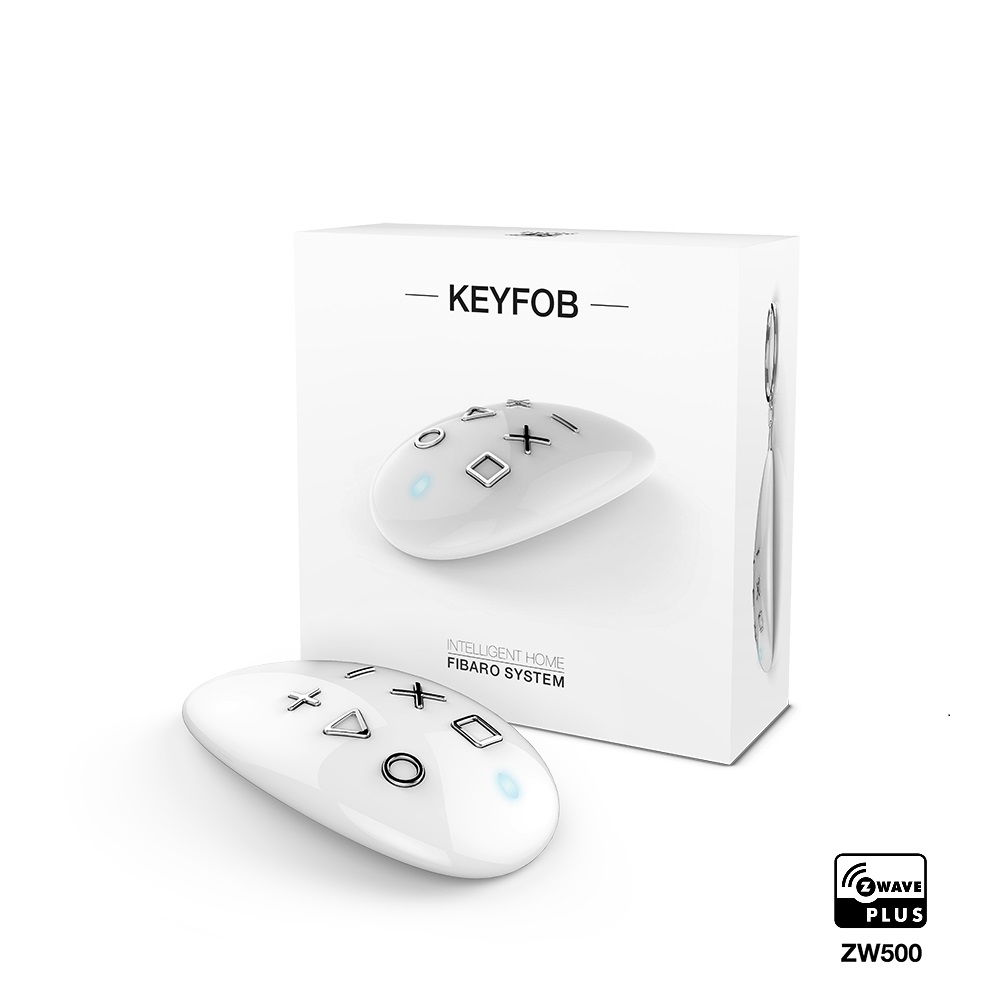

Long Description	FIBARO KeyFob is a Z-Wave Plus compatible, battery-powered, compact remote control. Six buttons allow you to control other devices through the Z-Wave network and run various scenes defined in FIBARO System. Configure actions for one, two, three clicks and holding the button to suit all your needs. Built-in locking system will ensure that unauthorized person will not take control of your home.
Brand	FIBARO
Product Identifier	FGKF-601
OEM Version	HW: 1 FW: 3.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x010F
Product Type ID	0x1001
Product ID	0x8000
User Icon	0x1600
Installer Icon	0x1600
Frequency Plans	CN: 868.40MHz
Categories	All Controllers, Handheld Controller
Countries / Regions	China
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_PROTECTION_V2 Protection V2 0x75 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGKF-601-EN-T-v1.0.pdf
Features	Feature Values Battery Quantity Value 1 Color Value White Battery Type Value CR2450 Firmware Updatable Value Updatable by Consumer by RF Z-Wave Scene Type Value Central Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 7 5 0 “Cross - Multilevel” is assigned to clicking and holding the x button and is used to turn on/off and change level of associated devices. 8 5 0 “Triangle - On/Off” is assigned to clicking the Δ button and is used to turn on/off associated devices. 2 5 0 “Square - On/Off” is assigned to clicking the □ button and is used to turn on/off associated devices. 6 5 0 “Cross - On/Off” is assigned to clicking the x button and is used to turn on/off associated devices. 4 5 0 “Circle - On/Off” is assigned to clicking the ○ button and is used to turn on/off associated devices. 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (main controller by default). 10 5 0 “Minus - On/Off” is assigned to clicking the - button and is used to turn on/off associated devices. 9 5 0 “Triangle - Multilevel” is assigned to clicking and holding the Δ button and is used to turn on/off and change level of associated devices. 11 5 0 “Minus - Multilevel” is assigned to clicking and holding the - button and is used to turn on/off and change level of associated devices. 3 5 0 “Square - Multilevel” is assigned to clicking and holding the □ button and is used to turn on/off and change level of associated devices. 5 5 0 “Circle - Multilevel” is assigned to clicking and holding the ○ button and is used to turn on/off and change level of associated devices.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 8 Sixth scene sequence This parameter allows to set up sequence that activates scene with ID 12. See "Sequences" on page 10 of the manual for more information 0- 6th sequence disabled 9-28086 - value of sequence 0 2 0 0 0 From To Description 9 28086 value of sequence 0 6 sequence disabled 6 Fourth scene sequence This parameter allows to set up sequence that activates scene with ID 10. See "Sequences" on page 10 of the manual for more information. 0 - 4th sequence disabled 9-28086 - value of sequence 0 2 0 0 0 From To Description 0 4 sequence disabled 9 28086 value of sequence 7 Fifth scene sequence This parameter allows to set up sequence that activates scene with ID 11. See "Sequences" on page 10 of the manual for more information. 0- 5th sequence disabled 9-28086 - value of sequence 0 2 0 0 0 From To Description 9 28086 value of sequence 0 5 sequence disabled 24 Scene activation for Δ button This parameter determines which actions result in sending assigned scene IDs and attributes to the controller. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Held Down & Released NOTE Parameter 24 values may be combined, e.g. 1+2=3 means that pressing button once or twice will result in sending assigned scene ID. 0 1 0 0 9 From To Description 1 1 Key Pressed 1 time 2 2 Key Pressed 2 times 4 4 Key Pressed 3 times 8 8 Key Held Down & Released 2 Lock Mode - time to lock and locking button This parameter allows to set time that must elapse from the last press of the button to lock the device and locking button. Setting locking button will deactivate associations and scenes for pressing and holding the selected button. This parameter is irrelevant if parameter 1 is set to 0 (Lock Mode disable). See "Lock Mode" on page 9 of the manual for more information. 0 - Lock Mode disabled 5-1791- calculated value 0 2 0 0 60 From To Description 5 1791 calculated value 0 0 Lock Mode disabled 17 Paired buttons association for □ and ○ This parameter allows to activate paired buttons association mode for □ and ○ buttons. Paired buttons are dependent and association are sent only to □ groups. ○ turns devices on and increases value, □ turns them off and decreases value. 0 - paired buttons association inactive 1- paired buttons association active 0 1 0 0 0 From To Description 0 0 paired buttons association inactive 1 1 paired buttons association active 1 Lock Mode activation This parameter allows to activate Lock Mode and set up unlocking sequence. Device will lock after time set in parameter 2 or after pressing and holding selected button. See "Lock Mode" on page 9 of the manual for more information. 0 - Lock Mode disabled 9-28086 - unlocking sequence 0 2 0 0 0 From To Description 0 0 Lock Mode disabled 9 28086 unlocking sequence 10 Single button associations - operating mode This parameter allows to choose operating mode for single button associations. 0- single press switches state to opposite 1- single press switches state to opposite, double press sets to maximum level 2 - single press turns on, double press turns off 0 1 0 0 0 From To Description 0 0 single press switches state to opposite 2 2 single press turns on, double press turns off 1 1 single press switches state to opposite, double press sets to maximum level 25 Scene activation for - button This parameter determines which actions result in sending assigned scene IDs and attributes to the controller. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Held Down & Released NOTE Parameter 25 values may be combined, e.g. 1+2=3 means that pressing button once or twice will result in sending assigned scene ID. 0 1 0 0 9 From To Description 1 1 Key Pressed 1 time 2 2 Key Pressed 2 times 4 4 Key Pressed 3 times 8 8 Key Held Down & Released 23 Scene activation for x button This parameter determines which actions result in sending assigned scene IDs and attributes to the controller. 1 - Key Pressed 1 time 2 - Key Pressed 2 times 4 - Key Pressed 3 times 8 - Key Held Down & Released NOTE Parameter 23 values may be combined, e.g. 1+2=3 means that pressing button once or twice will result in sending assigned scene ID. 0 1 0 0 9 From To Description 1 1 Key Pressed 1 time 2 2 Key Pressed 2 times 4 4 Key Pressed 3 times 8 8 Key Held Down & Released 3 First scene sequence This parameter allows to set up sequence that activates scene with ID 7. See "Sequences" on page 10 of the manual for more information. 0 - 1st sequence disabled 9-28086 - value of sequence 0 2 0 0 0 From To Description 0 1 sequence disabled 9 28086 value of sequence 4 Second scene sequence This parameter allows to set up sequence that activates scene with ID 8. See "Sequences" on page 10 of the manual for more information. 0 - 1st sequence disabled 9-28086 - value of sequence 0 2 0 0 0 From To Description 0 0 sequence disabled 9 28086 value of sequence 5 Third scene sequence This parameter allows to set up sequence that activates scene with ID 9. See "Sequences" on page 10 of the manual for more information. 0 - 3rd sequence disabled 9-28086 - value of sequence 0 2 0 0 0 From To Description 9 28086 value of sequence 0 3 sequence disabled 11 Value sent to □ association group This parameter allows to set value sent to devices in association group. It will result in turning multilevel devices on with set or last level. Value is irrelevant for simple on/off devices. 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on 0 2 0 0 255 From To Description 1 99 orcing level of associated devices 255 255 setting associated devices to the last remembered state or turning them on
Texts	ID Description Value 4 Device Wake-Up The Keyfob needs to be woken up to receive information about the new configuration from the Z-Wave controller, like parameters and associations. To wake up the device press O and + simultaneously or use 1st menu position: 1) Press O and – simultaneously. 2) Press Δ or X until LED glows white. 3) Press + to confirm. 24 Controller Exclusion 1) Place the KeyFob within the direct range of your Z-Wave controller. 2) Set the main Z-Wave controller in remove mode (see the controller’s manual). 3) Press O and – simultaneously. 4) Press Δ or X until LED glows green. 5) Press + to confirm. 6) Wait for the removing process to end. 7) Successful removing will be confirmed by the Z-Wave controller’s message. 23 Controller Inclusion 1) Place the KeyFob within the direct range of your Z-Wave controller. 2) Set the main Z-Wave controller in (security/non-security) add mode (see the controller’s manual). 3) Press any button three times. 4) Wait for the adding process to end. 5) Successful adding will be confirmed by the Z-Wave controller’s message and green LED colour. 5 Factory Reset Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. There are two ways of resetting the device: • Resetting using the menu 1) Press O and – simultaneously. 2) Press Δ or X until LED glows yellow. 3) Press + to confirm. • Resetting on start-up 1) Remove the battery. 2) Hold O and + while inserting the battery. Successful resetting will be confirmed by smoothly brightening and dimming of the yellow LED colour. Please use this procedure only when the network primary controller is missing or otherwise inoperable
Supports NWI	Yes
Supports Explorer Frames	Yes
