| Product Recognition | — |
|---|
| Certification Number | ZC08-11080015 |
|---|

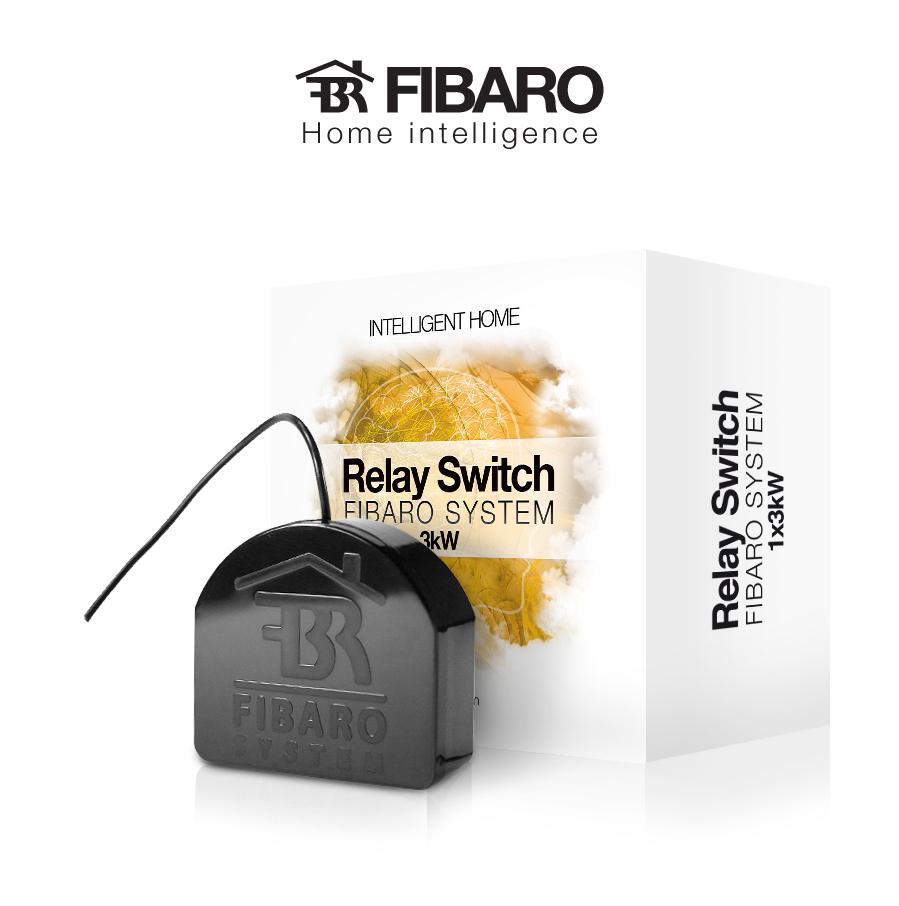

| Name | FIBARO Relay Switch |
|---|
| Long Description | The In-Wall Relay Switch is hereinafter referred to as Fibaro Switch. It is designed to switch on/off devices connected to its terminals using radio waves, controllers and push button directly connected to the Fibaro Switch.
The remotely controlled Relay Switch of Fibaro system is designed to operate in a wall switch box, wall socket box or in locations where the control of an electric device (up to 3kW) is needed. It is also possible to send a signal to any system that is to be integrated with FIBARO system. |
|---|
| Brand | FIBARO |
|---|
| Product Identifier | FGS211 |
|---|
| OEM Version | v1.4-v.1.7 |
|---|
| Hardware Platform | OTHER |
|---|
| Z-Wave Version | 3.2X |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x010F |
|---|
| Product Type ID | 0x0200 |
|---|
| Product ID | 0x0102 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | European Union |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SENSOR_ALARM | Sensor Alarm | 0x9C | 1 | | COMMAND_CLASS_ALARM | Alarm | 0x71 | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_MULTI_CHANNEL_V2 | Multi-Channel V2 | 0x60 | 2 |
|
|---|
| Documents | |
|---|
