Certification Number	ZC10-16095202

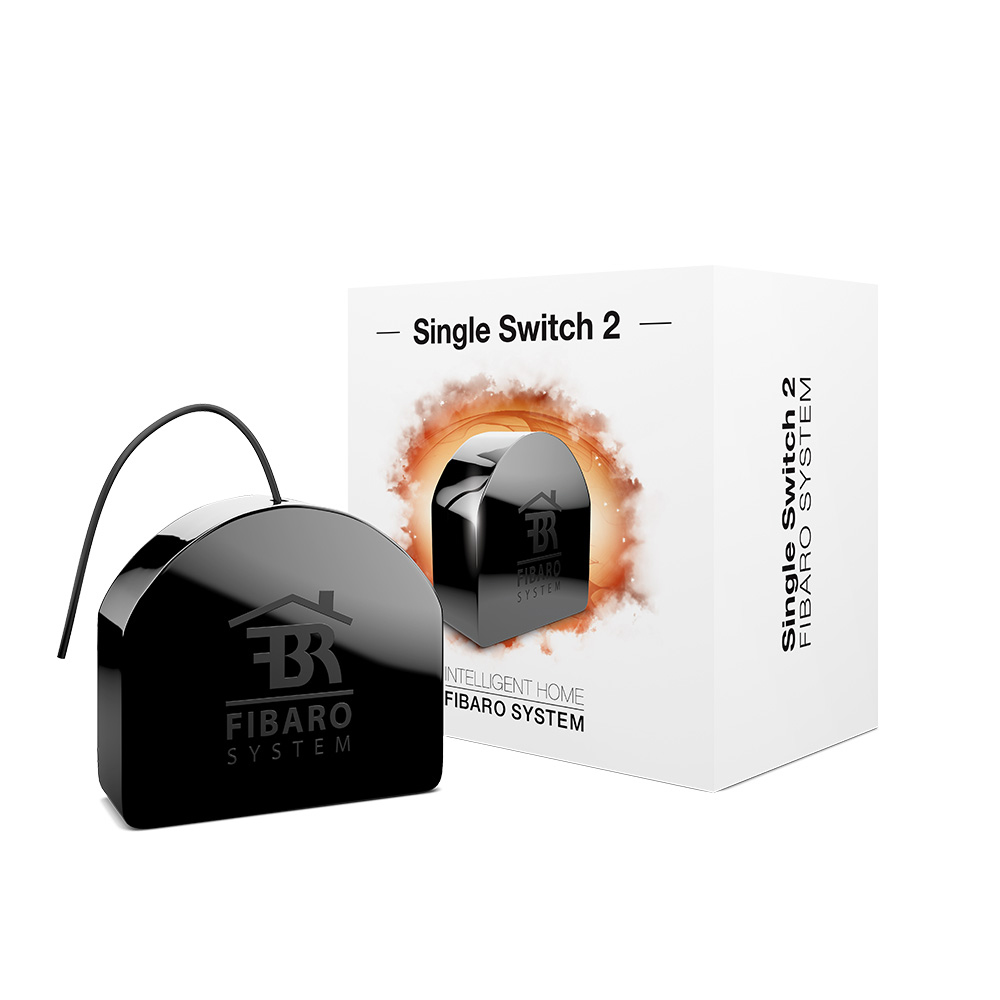

Name	FIBARO Single Switch 2
Short Description	FIBARO Single Switch 2 is designed to turn electrical devices on and off and to measure their power and energy consumption.
Long Description	The remotely operated FIBARO Single Switch 2 is designed to turn electrical devices on and off and to measure their power and energy consumption. The compact size of the device makes it the world's smallest of its type and allows for the product to be installed in wall switch boxes or housings. FIBARO Single Switch 2 can be controlled either via Z-Wave network or with a wall switch through a direct connection.
Brand	FIBARO
Product Identifier	FGS-213
OEM Version	HW: 3 FW: 3.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x010F
Product Type ID	0x0403
Product ID	0x3000
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Australia
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGS-2x3-EN-T-v1.0.pdf
Features	Feature Values Color Value Black Switch Load Capacity Volt-Ampere Switch Load Capacity Watts Value up to 1920W
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 “On/Off (S1)” is assigned to switch connected to the S1 terminal (uses Basic command class). 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (main controller by default). 3 5 0 “Dimmer (S1)” is assigned to switch connected to the S1 terminal (uses Switch Multilevel command class). 4 5 0 “On/Off (S2)” is assigned to switch connected to the S2 terminal (uses Basic command class). 5 5 0 “Dimmer (S2)” is assigned to switch connected to the S2 terminal (uses Switch Multilevel command class).
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 60 Measuring energy consumed by the device itself This parameter determines whether energy metering should include the amount of energy consumed by the device itself. Results are being added to energy reports for first endpoint. 0 - function inactive 1 - function active 0 1 0 0 0 From To Description 1 1 function active 0 0 function inactive 31 S1 switch - Switch ON value sent to 2nd and 3rd association groups This parameter defines value sent with Switch ON command to devices associated in 2nd and 3rd association group. 0-255 - sent value 0 2 0 0 255 From To Description 0 255 sent value 9 Restore state after power failure This parameter determines if the device will return to state prior to the power failure after power is restored. 0 - the device does not save the state prior to the power failure and returns to „off” position 1 - the device restores its state prior to the power failure 0 1 0 0 1 From To Description 1 1 the device restores its state prior to the power failure 0 0 the device does not save the state prior to the power failure and returns to „off” position 10 First channel - operating mode This parameter allows to choose operating for the 1st channel controlled by the S1 switch. 0 - standard operation 1 - delay ON function 2 - delay OFF function 3 - auto ON function 4 - auto OFF function 5 - flash function 0 1 0 0 0 From To Description 1 1 delay ON function 5 5 flash function 4 4 auto OFF function 3 3 auto ON function 2 2 delay OFF function 0 0 standard operation 11 First channel - reaction to switch for delay/auto ON/OFF modes This parameter determines how the device in timed mode reacts to pushing the switch connected to the S1 terminal. 0 - cancel mode and set target state 1 - no reaction to switch - mode runs until it ends 2 - reset timer - start counting from the beginning 0 1 0 0 0 From To Description 1 1 no reaction to switch - mode runs until it ends 2 2 reset timer - start counting from the beginning 0 0 cancel mode and set target state 53 First channel - energy reports This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller. 0 - reports are disabled 1-32000 (1-32000Wh) - change in energy 0 2 0 0 100 From To Description 0 0 reports are disabled 1 32000 1-32000 (1-32000Wh) - change in energy 58 Periodic power reports This parameter determines in what time interval the periodic power reports are sent to the main controller. 0 - periodic reports are disabled 1-32000 (1-32000s) - report interval 0 2 0 0 3600 From To Description 0 0 periodic reports are disabled 1 32000 1-32000s - report interval 59 Periodic energy reports This parameter determines in what time interval the periodic energy reports are sent to the main controller. 0 - periodic reports are disabled 1-32000 (1-32000s) - report interval 0 2 0 0 3600 From To Description 0 0 periodic reports are disabled 1 32000 1-32000s - report interval 40 Reaction to General Alarm This parameter determines how the device will react to General Alarm frame 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame 0 1 0 0 3 From To Description 2 2 turn OFF after receiving the alarm frame 1 1 turn ON after receiving the alarm frame 0 0 alarm frame is ignored 3 3 flash after receiving the alarm frame 41 Reaction to Flood Alarm This parameter determines how the device will react to Flood Alarm frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame 0 1 0 0 2 From To Description 1 1 turn ON after receiving the alarm frame 0 0 alarm frame is ignored 3 3 flash after receiving the alarm frame 2 2 turn OFF after receiving the alarm frame 42 Reaction to CO/CO2/Smoke Alarm This parameter determines how the device will react to CO, CO2 or Smoke frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame 0 1 0 0 3 From To Description 2 2 turn OFF after receiving the alarm frame 1 1 turn ON after receiving the alarm frame 3 3 flash after receiving the alarm frame 0 0 alarm frame is ignored 43 Reaction to Heat Alarm This parameter determines how the device will react to Heat Alarm frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame 0 1 0 0 1 From To Description 2 2 turn OFF after receiving the alarm frame 3 3 flash after receiving the alarm frame 1 1 turn ON after receiving the alarm frame 0 0 alarm frame is ignored 44 Flashing alarm duration This parameter allows to set duration of flashing alarm mode. 1-32000 (1-32000s, 1s step) - duration 0 2 0 0 600 From To Description 1 32000 1-32000s, 1s step - duration 51 First channel - minimal time between power reports This parameter determines minimum time that has to elapse before sending new power report to the main controller. 0 - reports are disabled 1-120 (1-120s) - report interval 0 1 0 0 10 From To Description 0 0 reports are disabled 1 120 1-120s - report interval
Texts	ID Description Value 2 Exclusion 1) Place the Switch 2 within the direct range of your Z-Wave controller. 2) Identify the S1 switch or the B-button (located on the device’s housing). 3) Set the main controller in remove mode (see the controller’s manual). 4) Quickly, three times press the S1 switch or the B-button. 5) Wait for the removing process to end. 6) Successful removing will be confirmed by the Z-Wave controller’s message 1 Inclusion 1) Switch off the mains voltage (disable the fuse). 2) Place the Switch 2 within the direct range of your Z-Wave controller. 3) Connect the device in accordance with one of the diagrams attached in the manual. 4) After verifying correctness of the connection switch on the mains voltage. 5) Identify the S1 switch or the B-button (located on the device’s housing). 6) Set the main controller in (security/non-security) add mode (see the controller’s manual). 7) Quickly, three times press the S1 switch or the B-button. 8) Wait for the adding process to end. 9) Successful adding will be confirmed by the Z-Wave controller’s message. 4 Device Wake-Up The FIBARO Single Switch 2 is powered with mains voltage so it is always awake. 6 Additional Special Features Z-Wave Plus communication protocol Active power and energy metering functionality Z-Wave range tester LED diode 5 Factory Reset Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1) Switch off the mains voltage (disable the fuse). 2) Remove the Switch 2 from the wall switch box. 3) Switch on the mains voltage. 4) Press and hold the B-button to enter the menu. 5) Wait for the visual LED indicator to glow yellow. 6) Quickly release and click the B-button again. 7) After few seconds the device will be restarted, which is signalled with the red LED indicator colour. Use reset procedure only if the primary controller is missing or inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
