Product Recognition
Certification Number	ZC10-17015392

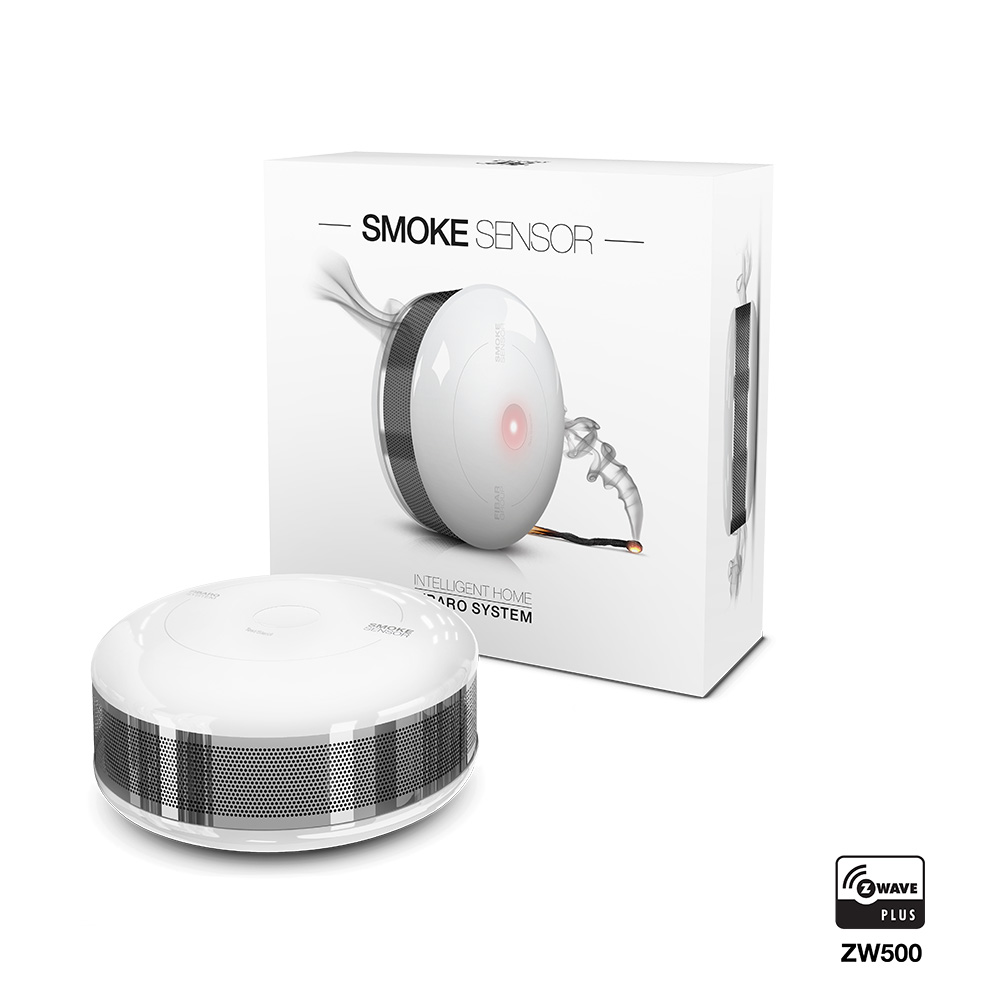

Name	FIBARO Smoke Sensor
Short Description	A battery powered smoke detector which gives protection from flaming and smoldering fires.
Long Description	The FIBARO Smoke Sensor is a universal, ultra-light, perfectly designed, optical Z-Wave smoke detector. Fire alarm is signaled by sound, visual indicator blinking and alarm reports sent to the other devices within Z-wave network. The optical sensor detects smoke at an early stage of fire, often before flames appear and temperature starts to rise significantly. Moreover, the device has a built-in temperature sensor, which is adjustable to allow detection of fire by exceeding given temperature threshold. The FIBARO Smoke Sensor is a battery powered device designed to be placed on the wall or ceiling. Visual indicator signals fire, operating mode and it is used to check if the device is within the Z-wave network using a built-in Z-Wave range tester. The Smoke Sensor is designed to operate in confined spaces, under normal conditions (lacking of smoke, dust or condensed water vapor).
Brand	FIBARO
Product Identifier	FGSD-002
OEM Version	HW: 2 FW: 3.03:03.03
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x010F
Product Type ID	0x0C02
Product ID	0x4002
User Icon	0x0C01
Installer Icon	0x0C01
Frequency Plans	RU: 869.00MHz
Categories	Sensors
Countries / Regions	Russian Federation
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V8 Sensor Multilevel V8 0x31 8 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2 Multi Channel Association V2 0x8E 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGSD-002-EN-A-v1.01.pdf
Features	Feature Values Battery Quantity Value 1 Battery Type Value CR123A Firmware Updatable Value Updatable by Consumer by RF Sensors Value Air Temperature Smoke Density
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline - Reporting device state. Only one device - Z-wave network controller may be set in this group. It's not recommended to modify this association group. 2 5 0 Smoke Alarm. Sending the Basic SET control command once smoke is detected. Its value may be modified in advanced parameters (see section XVI). Group may control up to five on/off devices. 3 5 0 Tamper. Sending the notification NOTIFICATION REPORT (TYPE=BURGLAR, EVENT =PRODUCT COVERING REMOVED) to associated devices once casing opening is detected. Up to five devices supporting casing opening command (NOTIFICATION REPORT) may be included in this group. 4 5 0 Smoke Alarm. Sending the notification SENSOR ALARM REPORT (TYPE=SMOKE ALARM) to associated devices once smoke is detected. Up to five devices supporting SMOKE ALARM command may be included in this group. 5 5 0 Tamper. Sending SENSOR ALARM REPORT notification (TYPE=GENERAL) to associated devices once casing opening is detected. Up to five devices supporting SENSOR ALARM REPORT command may be included in this group.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 Z-Wave notifications status 0-all notifications disabled 1-casing opening notification enabled 2-exceeding temperature threshold notification enabled Parameter values may be combined, e.g. 1+2=3, means that all notifications are enabled. 0 1 0 0 0 From To Description 1 1 casing opening notification enabled 0 0 all notifications disabled 2 2 exceeding temperature threshold notification enabled 1 Fibaro Smoke Sensor sensitivity There are 3 levels of sensitivity to smoke presence. Level 1 means the highest sesitivity. Rising the parameter value lowers the sensitivity to smoke presence. Available settings: 1-3 1-HIGH Sensitivity 2-MEDIUM Sensitivity 3-LOW Sensitivity 0 1 0 0 2 From To Description 2 2 MEDIUM Sensitivity 1 1 HIGH Sensitivity 3 3 LOW Sensitivity 31 Excess temperature signaling interval Time interval of signaling (visual indication/sound) excess temperature level. Available setting: 1-8640 (multiply by 10 seconds) [10s - 24 h] 1-8640 - [10s - 24h] CAUTION Parameter 31 is associated with parameters 2, 3 and 4 settings. Their modification may have no effect if configured functionality is not activated in the corresponding parameter. 0 2 0 0 1 From To Description 1 8640 [10s - 24h] 10 Configuration of control frames in BASIC command class This parameter defines which frames will be sent in the 2-nd Association Group (SMOKE ALARM). The values of BASIC ON and BASIC OFF frames may be defined as described in further parameters. Available settings: 0-2 0 - BASIC ON & BASIC OFF enabled 1 - BASIC ON enabled 2 - BASIC OFF enabled 0 1 0 0 0 From To Description 0 0 BASIC ON & BASIC OFF enabled 1 1 BASIC ON enabled 2 2 BASIC OFF enabled 11 BASIC ON frame value BASIC ON frame is sent in case of smoke presence detection and Fire Alarm triggering. Its value is defined by the parameter. Available setting: 0 -99, 255 0 - turn off the device 1-99 - set the device to 1-99 % 255 - set the last status 0 2 0 0 255 From To Description 0 0 BASIC OFF enabled 1 99 set the device to 1-99 % 255 255 set the last status 3 Visual indicator notifications status This parameter allows to activate visual indications but does not apply to major alarms, such as Fire, Trouble and low battery alarm. Available settings: 0-7 0- all notifications disabled 1 - casing opening notification enabled 2 - exceeding temperature threshold notification enabled 4 - lack of Z-Wave range notification Parameter values may be combined, e.g. 1+2+4=7, means that all notifications are enabled. 0 1 0 0 0 From To Description 1 1 casing opening notification enabled 2 2 exceeding temperature threshold notification enabled 0 0 all notifications disabled 4 4 lack of Z-Wave range notification 4 Saund notifications status This parameter allows to activate sound signals but does not apply to major alarms, such as Fire, Trouble and low battery alarm. Available settings: 0-7 0- all notifications disabled 1 - casing opening notification enabled 2 - exceeding temperature threshold notification enabled 4 - lack of Z-Wave range notification Parameter values may be combined, e.g. 1+2+4=7, means that all notifications are enabled. 0 1 0 0 0 From To Description 4 4 lack of Z-Wave range notification 0 0 all notifications disabled 1 1 casing opening notification enabled 2 2 exceeding temperature threshold notification enabled
Texts	ID Description Value 4 Device Wake-Up The Smoke Sensor will wake up at defined time interval and will ALWAYS try to communicate with the main controller. There is a possibility to wake the device up manually by triple-click the B-button. 2 Exclusion 1) Make sure there is a battery installed 2) Set the main controller into the learning mode (see main controllers operating manual) 3) Quickly, triple click the B-button, located on Fibaro Smoke Sensors enclosure. 1 Inclusion Fibaro Smoke Sensor inclusion: 1) Install the battery. Visual indicator will signal the Z-Wave network inclusion status (green - device included, red - device not included) 2) Make sure the device is located within direct range of the Z-Wave controller. 3) Set the main controller into the learning mode (see main controllers operating manual). 4) Quickly, triple click the B-button, located on Fibaro Smoke Sensors enclosure. 5) Fibaro Smoke Sensor will be detected and included in the Z-Wave network. 5 Factory Reset Please use this procedure only in the event that the system primary controller is missing or otherwise inoperable. Fibaro Smoke Sensor reset procedure: 1) Make sure the device has the battery installed. 2) Press and hold the B-button for 3 seconds. Visual indicator will glow white. 3) You will hear a short signal. 4) Release the B-button. 5) Wait until the visual indicator glows yellow, signaling entering the 4th menu level. 6) Press the B-button briefly to confirm menu level choice. At the same time you will hear a short beep, the same sound as during the power connection. Successful reset will be confirmed with the visual indicator changing colour to red and fading. At the same time, short beep will sound, same as at the power connection.
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Smoke density
Supports NWI	Yes
Supports Explorer Frames	Yes
