Certification Number	ZC10-16045046
Name	FIBARO Swipe
Short Description	FIBARO Swipe is a battery-powered, wireless, Z-Wave gesture controller.

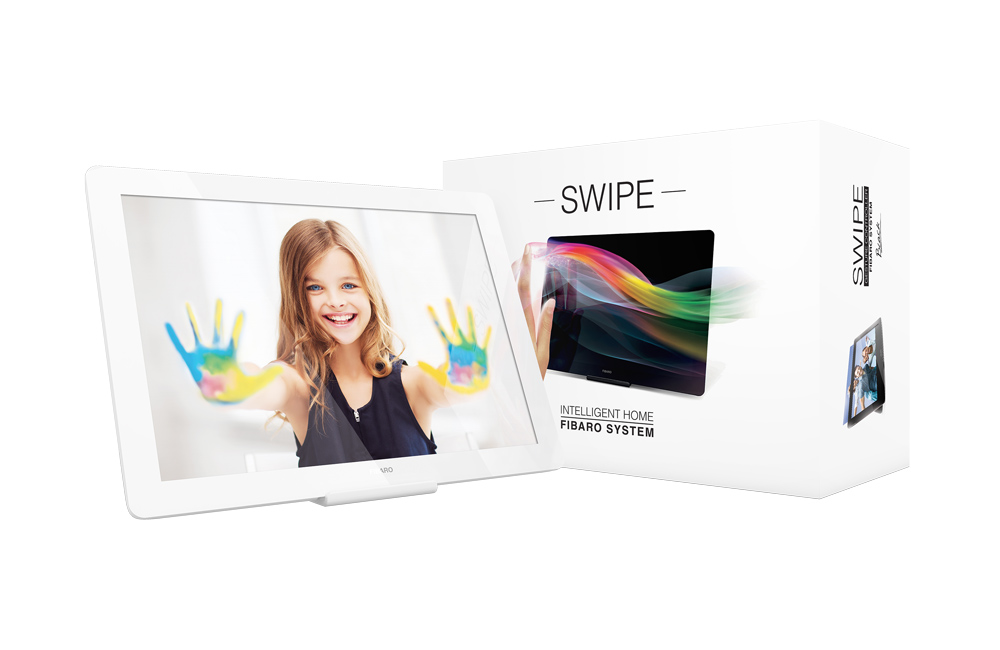

Long Description	FIBARO Swipe is a revolutionary, battery-powered gesture control pad that allows you to control devices through the Z-Wave network. Swipe your hand up, down, left or right in front of the pad, make circular gestures and use sequences of gestures to get full and intuitive control of your smart home. Installed device perfectly matches your interior design, as it resembles a picture frame. You can even personalize it with your favourite picture. Gesture controlled menu allow to add/remove or reset the device without dismounting it. The device is equipped with a buzzer that confirms performed gestures and other actions.
Brand	FIBARO
Product Identifier	FGGC-001
OEM Version	HW: 1 FW: 3.02:03.11
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x010F
Product Type ID	0x0D01
Product ID	0x2000
User Icon	0x1600
Installer Icon	0x1600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Hospitality, Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_CENTRAL_SCENE_V2 Central Scene V2 0x5B 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FGGC-001-US-T-v1.0.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 “Lifeline” reports the device status and allows for assigning single device only (main controller by default). 2 5 0 “Flick UP” is assigned to moving the hand up over the panel (sends Basic Set command frames). 3 5 0 “Flick DOWN” is assigned to moving the hand down over the panel (sends Basic Set command frames). 4 5 0 “Flick LEFT” is assigned to moving the hand from the right to the left side of the panel (sends Basic Set command frames). 5 5 0 “Flick RIGHT” is assigned to moving the hand from the left to the right side of the panel (sends Basic Set command frames) . 6 5 0 “Circular AirWheel” is assigned to circular move of the hand clockwise or counter-clockwise over the panel (sends Switch Multilevel Start/Stop Level Change command frames).
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 23 SWITCH OFF control frame value for FLICK DOWN gesture This parameter allows to set value sent in SWITCH OFF command frame to the association group. 0-99 or 255 0 2 0 0 0 From To Description 0 0 turning off associated devices 1 99 forcing level of associated devices 255 255 setting associated devices to the last remembered state or turning them on 24 SWITCH ON control frame value for FLICK LEFT gesture This parameter allows to set value sent in SWITCH ON command frame to the association group. 0-99 or 255 0 2 0 0 255 From To Description 1 99 forcing level of associated devices 0 0 turning off associated devices 255 255 setting associated devices to the last remembered state or turning them on 25 SWITCH OFF control frame value for FLICK LEFT gesture This parameter allows to set value sent in SWITCH OFF command frame to the association group. 0-99 or 255 0 2 0 0 0 From To Description 1 99 forcing level of associated devices 0 0 turning off associated devices 255 255 setting associated devices to the last remembered state or turning them on 3 LED diode - visual indicator settings Visual indication of gestures detection. 0 - gestures detection is not indicated 1 - gestures detection is indicated 0 1 0 0 0 From To Description 0 0 gestures detection is not indicated 1 1 gestures detection is indicated 5 Powering mode - interval of updating the current mode This parameter determines how often the device checks if the USB power supply is connected and updates powering mode if needed. 0 - powering mode is not updated 1-1080 (in minutes) - time interval 0 2 0 0 4 From To Description 1 1080 (in minutes) - time interval 0 0 powering mode is not updated 7 Hold gesture to enter the menu This parameter allows to choose if the menu can be entered using the Hold gesture. 0 - Hold gesture to enter the menu enabled 1 - Hold gesture to enter the menu disabled CAUTION After disabling the Hold gesture in parameter 7, menu can be entered by using the B-button only! 0 1 0 0 0 From To Description 0 0 Hold gesture to enter the menu enabled 1 1 Hold gesture to enter the menu enabled 2 Buzzer - acoustic signal settings Acoustic signalling of gestures detection. 0 - gestures detection is not signalled 1 - gestures detection is signalled NOTE Active acoustic signals can be selected in parameter 4. 0 1 0 0 1 From To Description 1 1 gestures detection is signalled 0 0 gestures detection is not signalled 31 1st gestures sequence (SLOT 1) Value containing sequence of gestures. See "Sequences of gestures" on page 12 for more information. 0-1076 NOTE Parameters 31-36 can also be used to manually set a sequence according to details described in "Sequences of gestures" on page 12. 0 2 0 0 0 From To Description 1 1076 can created six sequences 0 0 no gestures sequence 1 Device orientation Parameter determines orientation of the Swipe in relation to its default position. Required for proper gestures recognition. 0- default orientation 1 - 180° rotation 2 - 90° clockwise rotation 3 - 90° counter-clockwise rotation 0 1 0 0 0 From To Description 1 1 180 dergree rotation 2 2 90 degree clockwise rotation 3 3 90 degree counter-clockwise rotation 0 0 default orientation 4 Buzzer - signalling result of gesture recognition Acoustic signalling of gesture recognition result (using the built-in buzzer). 1 - only successful recognition is signalled 2 - only failed recognition is signalled 3 - successful and failed recognition is signalled NOTE Parameter 4 is relevant only if parameter 2 is set to 1. 0 1 0 0 3 From To Description 3 3 successful and failed recognition is signalled 1 1 only successful recognition is signalled 2 2 only failed recognition is signalled 6 Power saving mode (battery mode) This parameter determines operation of gesture detection when battery powered. When Standby Mode is selected, hold gesture must be performed to exit power saving mode and reactivate normal gesture recognition. The device in Standby Mode consumes the least battery life. When Simple Mode mode is selected, gesture recognition is always active, but only slowly performed gestures will be recognized properly (high battery consumption). 0 1 0 0 0 From To Description 0 0 Standby Mode 1 1 Simple Mode 2 2 the Swipe does not enter power saving mode
Texts	ID Description Value 2 Exclusion 1) Place the Swipe within the direct range of your Z-Wave controller. 2) Set the main controller in remove mode (see the controller’s manual). 3) Move and hold your hand close to the centre of the pad. 4) If the device is battery powered, high pitched beep will signal exiting the Standby Mode. 5) Loud sound sequence will confirm entering the menu, keep holding your hand. 6) After hearing two short beeps (green indicator colour), withdraw the hand and perform swiping up gesture to confirm selection (two beeps will confirm validity). 7) Wait for the removing process to end. 8) Successful removing will be confirmed by the Z-Wave controller’s message and sequence of 2 short beeps, pause, 1 short beep. 1 Inclusion 1) Place the Swipe within the direct range of your Z-Wave controller. 2) Set the main controller in (security/non-security) add mode (see the controller’s manual). 3) Move and hold your hand close to the centre of the pad. 4) If the device is battery powered, high pitched beep will signal exiting the Standby Mode. 5) Loud sound sequence will confirm entering the menu, keep holding your hand. 6) After hearing two short beeps, withdraw the hand and perform swiping up gesture to confirm selection (two beeps will confirm validity). 7) Wait for the adding process to end. 8) Successful adding will be confirmed by the Z-Wave controller’s message and 3 short beeps. 5 Factory Reset Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1) Make sure the device is powered. 2) Move and hold your hand close to the center of the pad. 3) Loud sound sequence will confirm entering the menu, keep holding your hand. 4) Wait for the buzzer to indicate the 3rd menu position (3 short beeps) 5) Withdraw the hand and perform swiping up gesture to confirm selection (two beeps will confirm validity). Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use the reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described in ""Adding the device"" on page 8. 4 Device Wake-Up The Swipe needs to be woken up to receive information about the new configuration from the Z-Wave controller, like parameters and associations. Use 1st menu position to wake up the device or click the button on the back of the device once. 1) Move and hold your hand close to the center of the pad. 2) Loud sound sequence will confirm entering the menu, keep holding your hand. 3) Wait for the buzzer to indicate the 1st menu position (1 short beep) 4) Withdraw the hand and perform swiping up gesture to confirm selection (two beeps will confirm validity).
Supports NWI	Yes
Supports Explorer Frames	Yes
