Product Recognition
Certification Number	ZC14-26010574

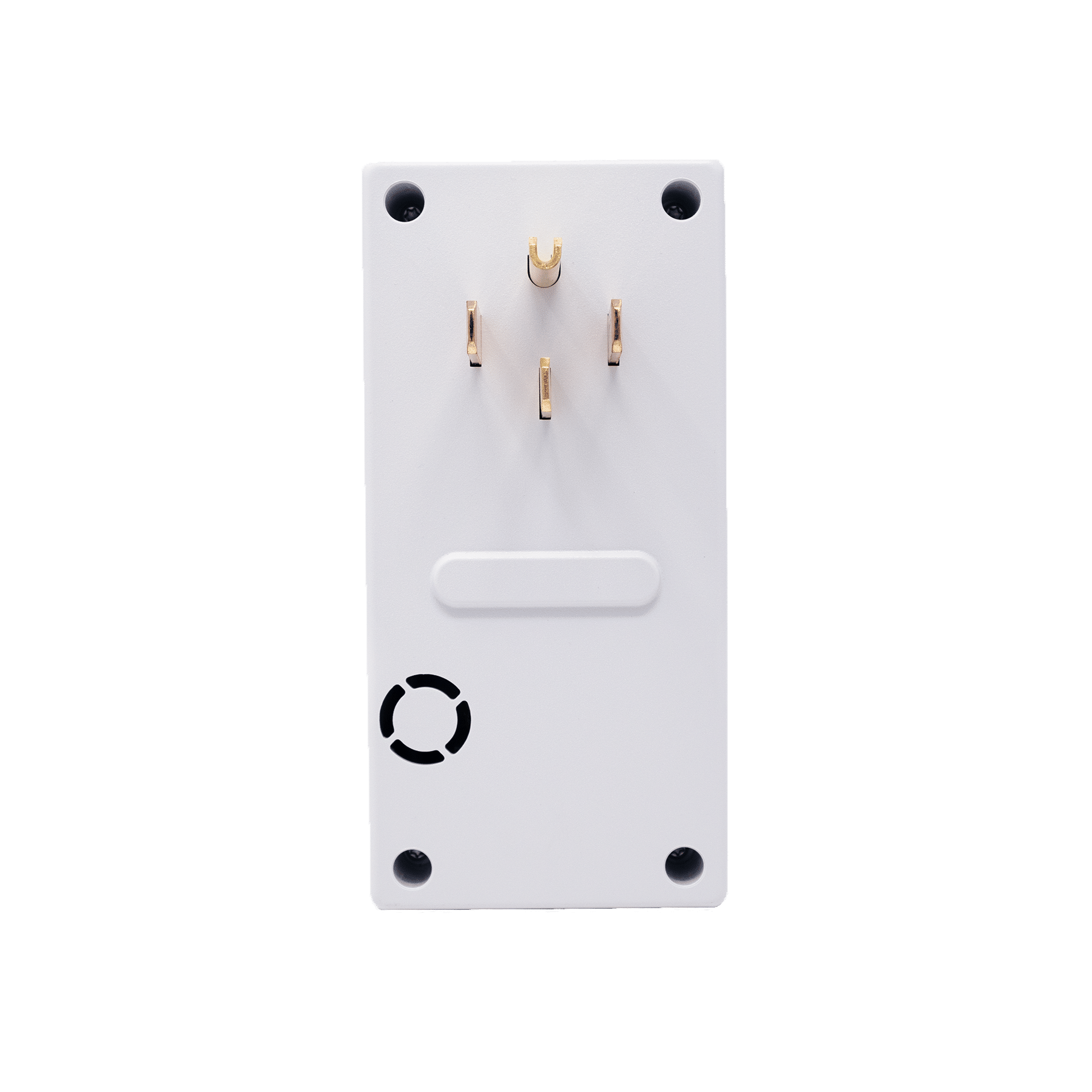

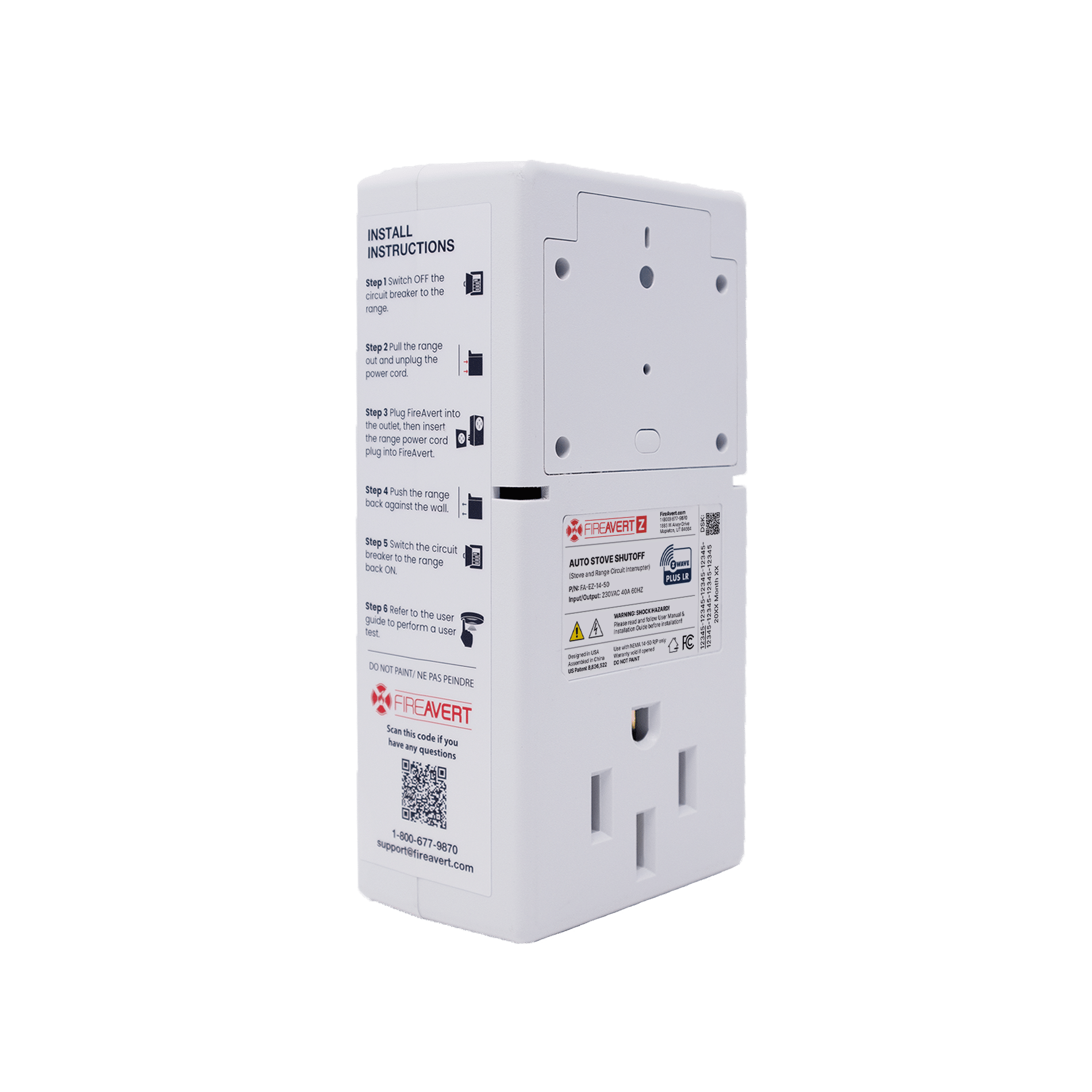

Name	FireAvert Electric 240v 4 Prong Auto Stove Shutoff
Short Description	FireAvert Electric 240v, 40Amp 4Prong, Auto Stove Shutoff - notifies of stove usage and smoke alarm activity, automatically shuts off stove when smoke alarms sound
Description	The FireAvert Auto Stove Shutoff is a revolutionary device designed to protect your home from the #1 cause of home fires - unattended cooking. This smart, innovative technology provides 24/7 monitoring and automatic protection for both electric and gas stoves. Key Features: Works with electric and gas stoves Automatically cuts power and/or gas when smoke is detected Syncs seamlessly with existing smoke alarms, including smart alarms. Reusable and maintenance-free Simple plug and play installation Intelligent sound recognition that only responds to actual smoke alarms Integrates with other Z-Wave supported sensors and systems How It Works: The device is installed discreetly behind your stove and continuously listens for your smoke alarm. When triggered, it has a 30-second delay that allows you to clear minor cooking smoke, preventing unnecessary shutoffs. If the smoke alarm continues, it automatically cuts power to the stove, effectively stopping potential fires before they start. Created by Firefighters, Made for Families
Brand	FireAvert
Brand Owner	FireAvert
Identifier	FA-EZ-14-50
Product Line	FireAvert Auto Stove Shutoff - Z-Wave
Product URL	https://fireavert.com/pages/z-wave-product
OEM Version	HW: 06 FW: 01.05:34.14
Hardware Platform	ZGM230SA
Z-Wave Version	7.23.1
Library Type	END_NODE_ENHANCED_232
Device Type	Notification Sensor DT
Role Type	ROLE_TYPE_END_NODE_ALWAYS_ON
Manufacturer ID	0x045D
Product Type ID	0x0004
Product ID	0x0603
User Icon	0x0C01
Installer Icon	0x0C01
Radio Range Z-Wave (m)	40
Radio Range Z-Wave LR (m)	400
Frequency Plans	US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz
Categories	Sensors, Energy Meters, On/Off Switches/Devices, Security Add-Ons, Security Systems, Gas Valves
Countries / Regions	Canada, United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SWITCH_BINARY_V2 Binary Switch V2 0x25 2 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi Channel V4 0x60 4 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1
S2 Classes	S2_ACCESS_CONTROL
Documents	Category File Manual_English FA-Z-240v_20251230.pdf Installer_Guide fireavert_integrators_guide_rev_a12.pdf
Features	Feature Values Color Value White Firmware Updatable Value Updatable by Manufacturer Switch Load Capacity Current Value 40Amps Switch Load Capacity Volt-Ampere Value 240v, 40Amps Switch Load Capacity Watts Value 9600W Switch Type Value Dry Contact
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 5 0 Lifeline 0x0001 1 0 1 Lifeline 0x0001 1 0 2 Lifeline 0x0001
Configuration Parameters	Parameter Number Name Description Format Read-only Flag ReInclude Size Min Value Max Value Default Value 1 Safe to Arm 1 if re-armable. See https://fireavert.com/pages/stove-reset for more info 1 Yes Yes 1 0 0 0x00 2 Trigger Count The number of times the device has been triggered 1 Yes 2 0 0 0x0000
Texts	ID Description Value 8 Where to find S2 DSK on product The DSK is found on the product nameplate. The product nameplate also includes a QR sticker that can be scanned into a UI. 1 Classic Inclusion 1. Ensure that the device is plugged in and powered ON, indicated by a Green LED. 2. Press the test button for 5-10 seconds. The LED will begin blinking with a Green LED. 2 Classic Exclusion Press and hold the test button for 5-10 seconds. The LED will flash when unpaired. * NOTE: The device will remain on the network for up to 30 seconds after it has been excluded. 5 Factory Reset Procedure Press and hold the test button for 10-12 seconds. The device will reset all Z-wave settings and leave the network. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Supported Notification Types	Notification Type Event / State Smoke Alarm State Idle Smoke Alarm Sensor status: Smoke detected Power Management (Refer to parameters): State idle Power Management Power status: Power has been applied Appliance (Refer to parameters): State idle
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
