Product Recognition | |
|---|
Certification Number | ZC10-18086215 |
|---|

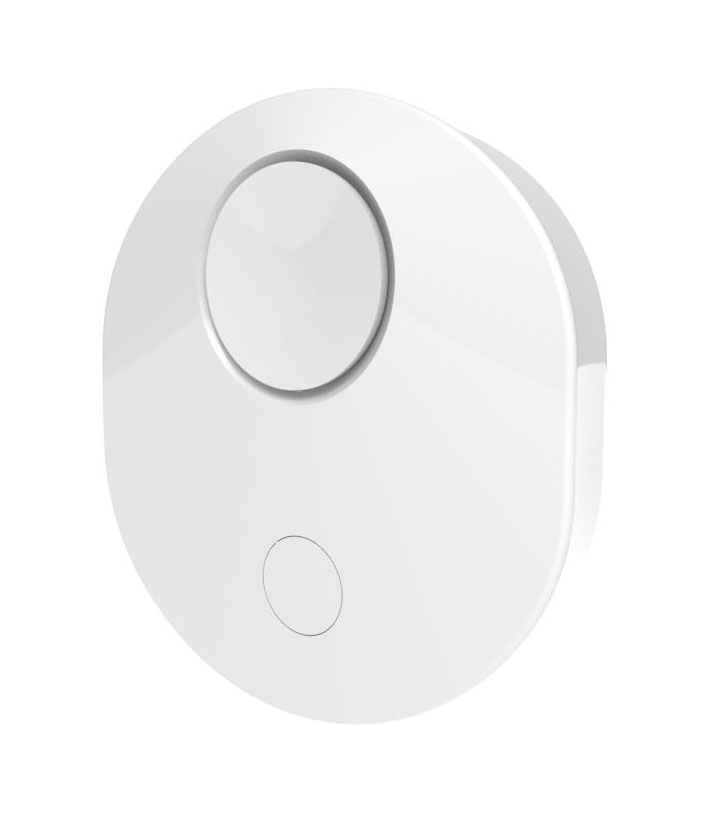

Name | Flex Sensor |
|---|
Short Description | HS-FS100+ (“Flex Sensor”) is a multifunction module that includes a temperature sensor, controllable buzzer and a port to connect optional external light or water sensors. |
|---|
Long Description | HS-FS100+ (“Flex Sensor”) is a multifunction module that includes a temperature sensor, controllable buzzer and a port to connect optional external light or water sensors. It is designed to work with a variety of Z-Wave certified home controllers to launch automation events or scenes.
- Use to trigger events based on changes in temperature
- Use the built-in buzzer as an audible notification that triggers when things happen in your home
- Use with optional light sensor to trigger events when indicator lights on applications turn on or off
- Use with optional water sensor to trigger events when water is detected |
|---|
Brand | HomeSeer |
|---|
Product Identifier | HS-FS100+ |
|---|
OEM Version | HW: 255 FW: 5.09 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x000C |
|---|
Product Type ID | 0x0202 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0c14 |
|---|
Installer Icon | 0x0c14 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_CONFIGURATION_V3 | Configuration V3 | 0x70 | 3 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | | Sensors | Value |
|---|
Air Temperature | Luminance | Moisture |
| Battery Type | | Color | | Battery Quantity | | Supported Notification Types | Value |
|---|
Water Alarm | Luminance |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | 1. BATTERY_REPORT
2. NOTIFICATION_REPORT
3. SENSOR_MULTILEVEL_REPORT
4. DEVICE_RESET_LOCALLY_NOTIFICATION
5. Z-Wave Plus Lifeline | 2 | 5 | 0 | Group 2 supports Basic Set, this allows you to control other devices, for example, if the unit detects light or water it can turn on an associated light. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Sets light sensitivity | Operation with the Light Sensor cable on USB power, sensitivity can be changed using parameter 1. 0 = High Sensitivity 1 = Medium Sensitivity 2 = Low Sensitivity | 1 | 1 | 0 | 2 | 2 | From | To | Description |
|---|
0 | 2 | 0 = High Sensitivity 1 = Medium Sensitivity 2 = Low Sensitivity |
| 2 | Water detection beep frequency | Parameter 2 is for the beep interval when on battery power and on USB power during the time water is detected. 0= every 10 minutes 1= every 5 minutes 2= every 30 minutes | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 2 | Parameter 2 is for the beep interval when on battery power and on line power during the time water is detected. 0= every 10 minutes 1= every 5 minutes 2= every 30 minutes |
| 4 | Notification buzzer | The buzzer may be disabled when detecting water on line power or battery, using parameter 4, the default value is set to enabled. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 1 | The buzzer may be disabled when detecting water on line power or battery, using parameter 4, the default value is set to enabled. |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Use this procedure to reset Flex Sensor to factory settings when the Z-Wave controller is missing or otherwise inoperable.
Press and hold the Z-Wave button on the sensor body for 10 seconds. If successful, the LED will flash 5 times. | 4 | Device Wake-Up | When on battery power, the unit will stay awake for 5 minutes when the button is pressed to complete inclusion process. Once included, the unit will wake up every 60 seconds and detect for water or light depending on which cable is plugged into it.
Also, the unit will wake up every hour to report temperature to the controller. | 1 | Inclusion | Inclusion: Add the device into your network by a Z-Wave certified controller. HS-FS100+ supports the latest S2 security offered by Z-Wave certified controllers. If your controller supports S2, please refer to the user guide of the controller for detailed instructions on adding devices to the network. The device can be added using the traditional method for Z-Wave as follows:
1. Place your controller into Inclusion (Add) mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button of HS-FS100+. The controller should indicate that the new device was added successfully. If the controller shows it failed, repeat the procedure. | 2 | Exclusion | Exclusion: Remove the device from your network by a Z-Wave certified controller. HS-FS100+ supports the latest S2 security offered by Z-Wave certified controllers. If your controller supports S2, please refer to the user guide of the controller for detailed instructions on removing devices from the network. The device can be removed using the traditional method for Z-Wave as follows:
1. Place your controller into Exclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button of HS-FS100+. The controller should indicate that the device was removed successfully. If the controller shows it failed, repeat the procedure. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | (Refer to parameters): State idle | Light sensor | (Refer to parameters): State idle | Light sensor | Light detection status: Light detected | Light sensor | Light color transition detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Illuminance | Moisture |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
