Product Recognition | |
|---|
Certification Number | ZC10-17055614 |
|---|

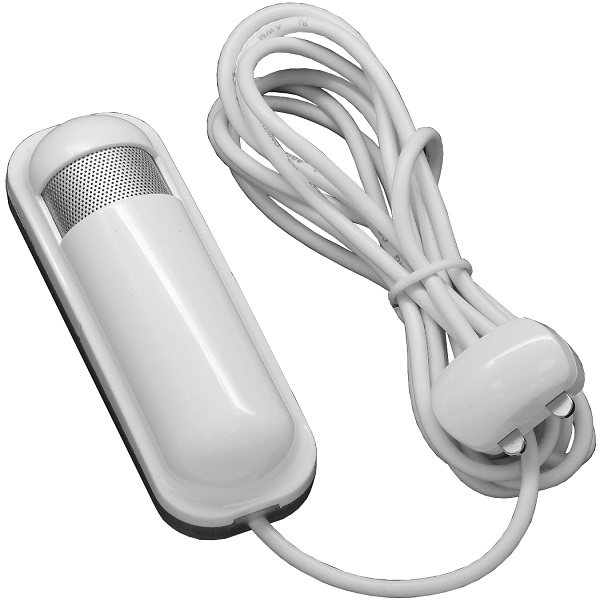

Name | Flood Multisensor 3 in 1 - FLOHUTE, Z-Wave |
|---|
Short Description | Flood Multisensor 3 in 1 - FLOHUTE, Z-Wave |
|---|
Long Description | Zipato Flood Multisensor 3 in 1 integrates flood, temperature and humidity
sensors in one device, connected to your Z-Wave network of choice.
This device offers elaborate safety and ambient sensing options.
Multifunctional nature of this product allows you to be informed
about water leakages and potential flood disasters, as well as to
measure temperature and humidity levels |
|---|
Brand | Zipato |
|---|
Product Identifier | ph-pat02.eu |
|---|
OEM Version | HW: 1 FW: 1.08:01.06 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0131 |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x001F |
|---|
User Icon | 0x0C05 |
|---|
Installer Icon | 0x0C05 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_MULTI_CMD | Multi-Command | 0x8F | 1 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Sensors | | Supported Notification Types | Value |
|---|
Water Alarm | Home Security |
| Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 8 | 0 | Z-Wave Plus Lifeline | 2 | 8 | 0 | ON/OFF Light |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Basic Set OFF Level | Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-128 | 127 | Setting the BASIC command value. |
| 2 | Basic Set ON Level | Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2. | 0 | 1 | 0 | 0 | 127 | From | To | Description |
|---|
-128 | 127 | Setting the BASIC command value. |
| 6 | Multi- Sensor Function Switch | Multisensor function switch. Using bit to control. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
64 | 64 | Disable the humidity report after event triggered. (1:Disable, 0:Enable) |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Put Z-Wave Controller in Inclusion mode.
Press the tamper key three times within 1.5 seconds to enter the
Inclusion mode.
After successful join, the device will enter wake state for 20
seconds, in order to receive the setting command from Z-Wave
Controller. | 2 | Exclusion | Put Z-Wave Controller in Exclusion mode.
Press the tamper key three times within 1.5 seconds to enter the
Exclusion mode. Node ID has been excluded. | 5 | Factory Reset | Notice: Use this procedure only in the event that the primary
controller is lost or otherwise inoperable.
Press the tamper key four times within 1.5 seconds and hold it
until LED lights up.
After 3 seconds the LED will turn OFF, and after that you should
release the tamper key within 2 seconds. If successful, the LED
will light up for one second. Otherwise, the LED will flash once.
IDs are excluded and all settings will reset to factory default. | 4 | Device Wake-Up | When the device powers on, the device will be in wake state
for about 20 seconds. During this time, the controller can
communicate with the device. Normally the device is always
sleeping to save the battery energy. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
