Product Recognition
Certification Number	ZC10-16030004

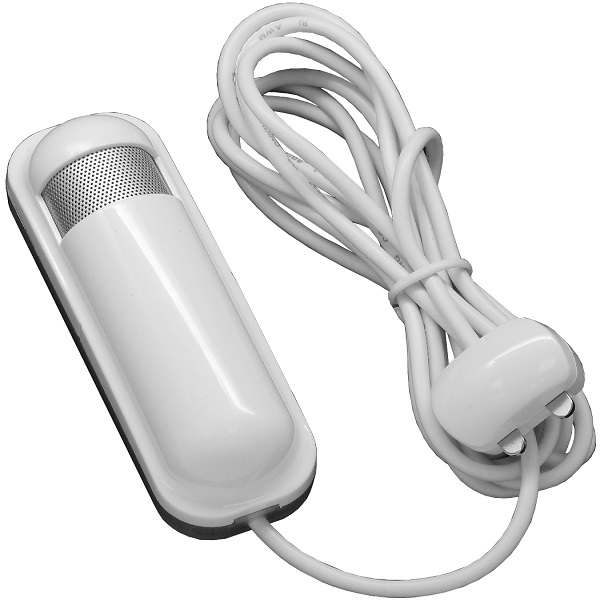

Name	Flood Multisensor
Short Description	The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave™ technology.
Long Description	The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave™ technology. Using Z-Wave™ plus technology, it supports security and Over-The-Air updating.
Brand	Philio
Product Identifier	PAT02-1A
OEM Version	01
Hardware Platform	SD3502
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x013C
Product Type ID	0x0002
Product ID	0x001F
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PAT02_Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 8 0 The group 2 is for the light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes maximum. 1 8 0 Group 1 is the Lifeline group. The group 1 is for receiving the report message, like triggered event, temperature, humidity etc.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 23 Humidity Differential Report The humidity differential to report. 0 means turn off this function. The unit is percentage. Enable this function the device will detect every 10 seconds. 0 1 0 0 5 From To Description 0 60 The humidity differential to report. 1 Basic Set OFF Level Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2. 0 1 0 0 0 From To Description 0 0 Setting the BASIC command value 0x00. 2 Basic Set ON Level Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2. 0 1 0 0 255 From To Description 255 255 Setting the BASIC command value 0xFF. 6 Mult-Sensor Function Switch Multisensor function switch. Using bit to control. 0 1 0 0 0 From To Description 64 64 Disable the humidity report after event triggered. (1:Disable, 0:Enable)
Texts	ID Description Value 2 Exclusion 1. Have Z-Wave™ Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded. 1 Inclusion 1. Have Z-Wave™ Controller entered inclusion mode. 2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds. 3 Learn Mode (adding another controller) When the device power on, the device will check is it already adding to the network? If doesn't, it will auto start the NWI mode. The LED will flash in every second and continue 30 seconds. Until timeout or the device successful to inclusion by controller. The use can presses the tamper key 3 times to abort the NWI mode. 5 Factory Reset Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default. 4 Device Wake-Up When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy. 6 Additional Special Features 1. Have Z-Wave™ Controller entered association mode. 2. Pressing tamper key three times within 1.5 seconds to enter the association mode. Note: The device support 2 groups. The group 1 is for receiving the report message, like triggered event, temperature, humidity etc. The group 2 is for the light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes maximum.
Supports NWI	Yes
Supports Explorer Frames	Yes
