Product Recognition | |
|---|
Certification Number | ZC10-20026862 |
|---|

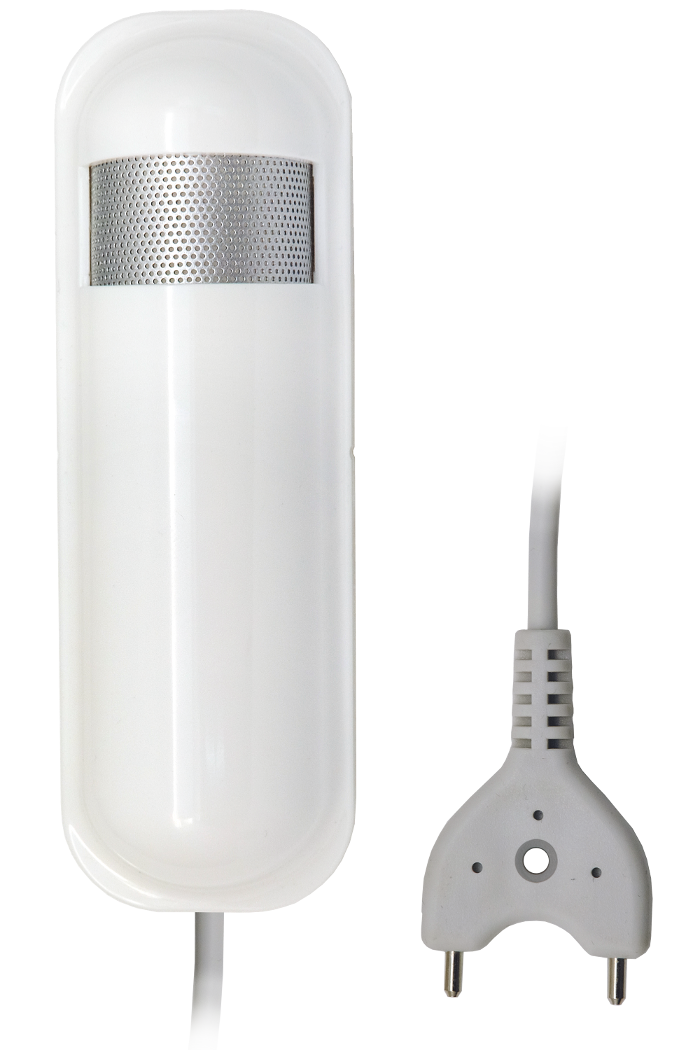

Name | Flood Multisensor |
|---|
Short Description | The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave TM technology. |
|---|
Long Description | This product can be included and operated in any Z-Wave TM network with other Z-Wave TM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
|---|
Brand | Philio |
|---|
Product Identifier | PAT02-A |
|---|
Product Line | Philio Z-wave Products |
|---|
OEM Version | HW: 1 FW: 1.01:01.14 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x013C |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0078 |
|---|
User Icon | 0x0C05 |
|---|
Installer Icon | 0x0C05 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | PAT02_S2_UserManual_Philio_V1.pdf | | Manual_Primary_Lang | PAT02_S2_UserManual_Philio_V1.pdf | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 4 | 0 | Lifeline | Used for returned events. | 2 | 4 | 0 | Basic set | Used for Basic set event. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Basic Set OFF Level | Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2. | 1 | 1 | -127 | 127 | 0 | From | To | Description |
|---|
-127 | 127 | Setting the BASIC command value. |
| 2 | Basic Set ON Level | Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2. | 1 | 1 | -127 | 127 | -1 | From | To | Description |
|---|
-127 | 127 | Setting the BASIC command value. |
| 6 | Mult-Sensor Function Switch | Multisensor function switch. Using bit to control. | 1 | 1 | -127 | 127 | 0 | From | To | Description |
|---|
64 | 64 | Disable the humidity report after event triggered. |
| 7 | Customer Function | Customer function switch, using bit control. | 1 | 1 | -127 | 127 | 0 | From | To | Description |
|---|
8 | 8 | Disable send out BASIC OFF after the flood event cleared. | 64 | 64 | Disable to report battery state when the device triggered. |
| 23 | Humidity Differential Report | The humidity differential to report. | 1 | 1 | 0 | 60 | 5 | From | To | Description |
|---|
0 | 60 | The unit is percentage. |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The QR code can be found on the device PAT02 or in the box. | 1 | Classic Inclusion | 1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-WaveTM Controller about 20 seconds. | 2 | Classic Exclusion | 1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.
Node ID has been excluded. | 4 | Wake-Up Procedure | When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy. | 5 | Factory Reset Procedure | 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to factory default. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | Sensor status: Water leak detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
