Product Recognition
Certification Number	ZC10-17035462

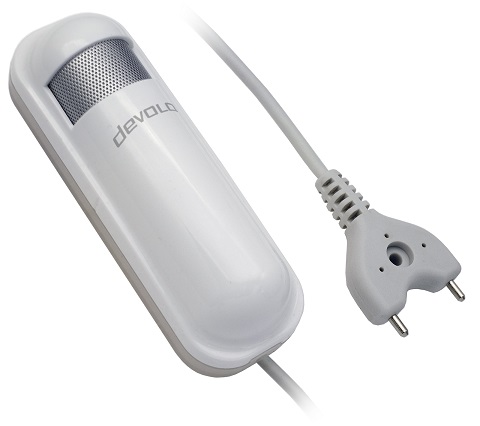

Name	Flood Sensor
Short Description	MT02756 has flood sensors, based on Z-Wave technology.
Long Description	MT02756 has temperature and humidity,based on Z-Wave™ technology. It is the Z-Wave™ plus product, it support the security, OTA... Those newest features of the Z-Wave™ technology. Z-Wave™ is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
Brand	devolo
Product Identifier	MT02756
OEM Version	HW: 1 FW: 1.08:01.05
Hardware Platform	SD3502
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0175
Product Type ID	0x0002
Product ID	0x0021
User Icon	0x0C05
Installer Icon	0x0C05
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_BINARY_V2 Sensor Binary V2 0x30 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual MT02756_MT02755_Manual.pdf
Features	Feature Values Battery Type Value CR123A Battery Quantity Value 1 Supported Notification Types Value Water Alarm Color Value White
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 8 0 Z-Wave Plus Lifeline 2 8 0 The group 2 is for the light control, the device will send the “Basic Set” command to this group.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Basic Set OFF Level Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2. 0 1 0 0 0 From To Description -128 127 Setting the BASIC command value. 2 Basic Set ON Level Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2. 0 1 0 0 -1 From To Description -128 127 Setting the BASIC command value.
Texts	ID Description Value 1 Inclusion 1. Have Z-Wave™ Controller entered inclusion mode. 2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds. 2 Exclusion 1. Have Z-Wave™ Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded. 6 Additional Special Features 1. Have Z-Wave™ Controller entered association mode. 2. Pressing tamper key three times within 1.5 seconds to enter the association mode. Note: MT02756 are support 2 groups, and MT02755 only support 1 group. The group 1 is for receiving the report message, like triggered event, temperature, humidity etc. The group 2 is for the light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes maximum. 5 Factory Reset Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4 th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default. 4 Device Wake-Up When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy.
Supported Notification Types	Notification Type Event / State Water Alarm (Refer to parameters): State idle
Supports NWI	Yes
Supports Explorer Frames	Yes
