Product Recognition
Certification Number	ZC10-15060011

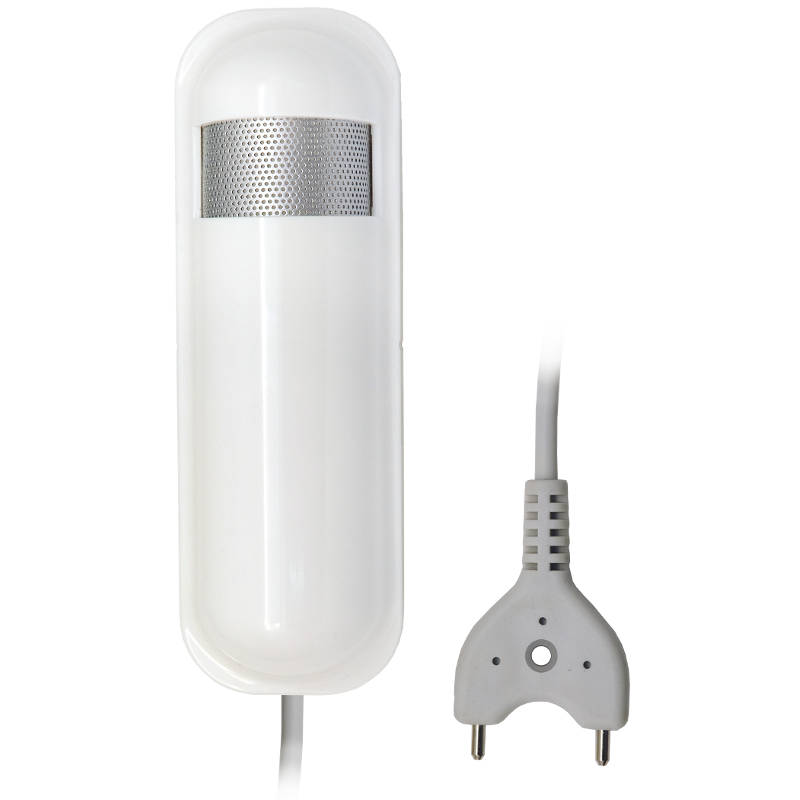

Name	Flood sensor
Short Description	The PAT02-1C is the flood sensor, based on Z-Wave technology.
Long Description	The flood multisensor PAT02 has flood, based on Z-Wave™ technology. It is the Z-Wave™ plus product, it support the security, OTA... Those newest features of the Z-Wave™ technology. Z-Wave™ is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
Brand	Philio
Product Identifier	PAT02-1C
OEM Version	01
Hardware Platform	SD3502
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x013C
Product Type ID	0x0002
Product ID	0x0021
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PAT02_Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 8 0 The group 1 is for receiving the report message, like triggered event, temperature, humidity etc.And each group support 8 nodes. 2 8 0 The group 2 is for the light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Basic Set OFF Level Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2. 0 1 0 0 0 From To Description 0 255 Setting the BASIC command value 0x00. 2 Basic Set ON Level Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2. 0 1 0 0 255 From To Description 0 255 Setting the BASIC command value 0xFF.
Texts	ID Description Value 5 Factory Reset Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4 th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default. 4 Device Wake-Up When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy. 2 Exclusion 1. Have Z-Wave™ Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded. 1 Inclusion 1. Have Z-Wave™ Controller entered inclusion mode. 2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds. 6 Additional Special Features 1. Have Z-Wave™ Controller entered association mode. 2. Pressing tamper key three times within 1.5 seconds to enter the association mode. Note: PAT02-1A and PAT02-1C are support 2 groups, and PAT02-1B only support 1 group. The group 1 is for receiving the report message, like triggered event, temperature, humidity etc. The group 2 is for the light control, the device will send the “Basic Set” command to this group. And each group support 8 nodes maximum.
Supports NWI	Yes
Supports Explorer Frames	Yes
