Product Recognition | |
|---|
Certification Number | ZC10-20096976 |
|---|

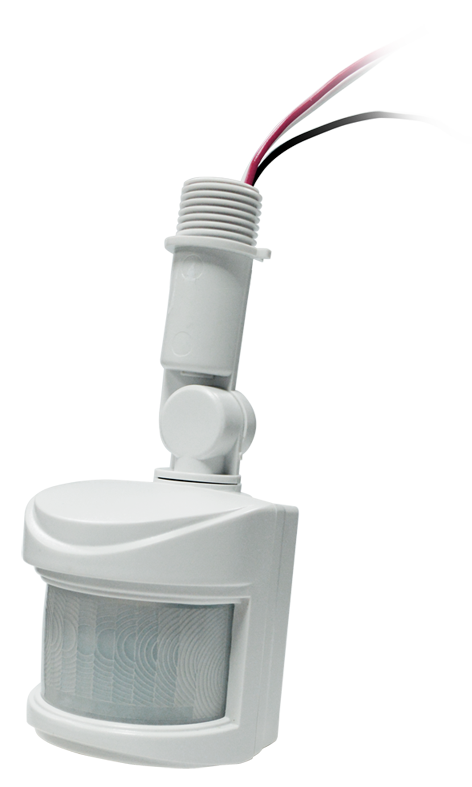

Name | Floodlight Sensor |
|---|
Short Description | HS-FLS100+ is a Z-Wave enabled outdoor motion sensor that's designed to control floodlights when motion is sensed. |
|---|
Long Description | HS-FLS100+ is a Z-Wave enabled outdoor motion sensor that may be used for a variety of applications.
• Use as a stand alone outdoor motion sensor and/or LUX sensor.
• Use as a replacement sensor for a motion-activated floodlight unit. In this configuration, it can control floodlight loads when motion is sensed or when commands are received from the central controller. |
|---|
Brand | HomeSeer |
|---|
Product Identifier | HS-FLS100-G2 |
|---|
Product Line | Z-Wave Plus 500 Series |
|---|
OEM Version | HW: 1 FW: 1.00:00.07 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.82.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x000C |
|---|
Product Type ID | 0x0201 |
|---|
Product ID | 0x000C |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | Lifeline Description | 2 | 4 | 0 | PIR Control | Control of other Z-Wave devices via PIR sensor |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | TIME settings | PIR Trigger Off period: Period to send Trigger Off command after PIR is triggered. Before this period expires, the PIR will not be able to detect any subsequent motion. Parameter Size Range Default 1 2 8~720 secs 15 | 0 | 2 | 8 | 720 | 180 | From | To | Description |
|---|
8 | 720 | unit is second |
| 6 | Sensor Load Control | 0 : floodlight is controlled by LUX Level and PIR trigger 1: lighting control via LUX level only, regardless of PIR trigger | 1 | 1 | 0 | 1 | 0 | | 7 | Temperature Sensor Offset | 0x9C - 0x64 (offset range : -10.0°C ~ +10.0°C) | 1 | 1 | 0 | 127 | 0 | | 8 | PIR Sensitivity | 0/1/2 0: low level, approx. 6m distance 1: mid level, approx. 10m distance 2: high level, approx. 20m distance Distance measured at ambient temperature 68°F | 1 | 1 | 0 | 2 | 2 | | 2 | LUX settings | Lux sensor threshold: Lux level to activate the PIR. When the lux level falls below this threshold and the PIR gets triggered, the unit emits a Basic Set Command (Value=0xFF) and turns on its floodlight. This overwrites the Lux level set by the Lux knob. If the level is set to 0, the unit will not turn on its floodlight. The PIR will still send a notification report to the controller; if the level is set to 255, when motion is sensed, the sensor ignore the ambient brightness but just turn on the light. | 0 | 2 | 10 | 900 | 50 | From | To | Description |
|---|
10 | 900 | unit is ambient lux level |
| 3 | Sensor Report Interval | Multilevel sensors auto report interval: set the interval of periodic lux level report and temperature report to the controller. | 1 | 2 | 1 | 1400 | 10 | | 4 | PIR Alerts | Enable/Disables PIR alerts sent from the unit through Notification report or Basic Report commands | 1 | 1 | 0 | 1 | 1 | | 5 | Load Control | Floodlight Control Mode. 1 - floodlight is controlled by PIR trigger and LUX level, or by Z-wave controller 0 - floodlight is controlled by Z-wave controller directly, regardless of PIR trigger or LUX level | 1 | 1 | 0 | 1 | 1 | |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | 1. Put the Z-Wave controller into inclusion mode.
2. Press the Link button 3 times within 1.5 seconds to put the unit into inclusion mode. | 2 | Classic Exclusion | 1. Put the Z-Wave Controller into exclusion mode.
2. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode. | 5 | Factory Reset Procedure | The product reset is to operate only when the primary controller is missing or inoperable. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode.Within 1 second of step 1, press the Link button again and hold until LED is off (about 5 seconds). | 8 | Where to find S2 DSK on product | If you are connecting this unit to a Z-Wave controller that utilizes the S2 security protocol, you may be asked by your controller to read 5-digit Device Specific Key (DSK) PIN Code that is unique to each unit. This can be found in one of two places:
- on the QR code label on the back of the unit
- on the insert card inside the packaging. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle | Home Security | Motion sensor status: Motion detection | Light sensor | (Refer to parameters): State idle | Light sensor | Light detection status: Light detected | Light sensor | Light color transition detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | General purpose | Illuminance |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
