Product Recognition

Certification Number

ZC10-20036879

Name

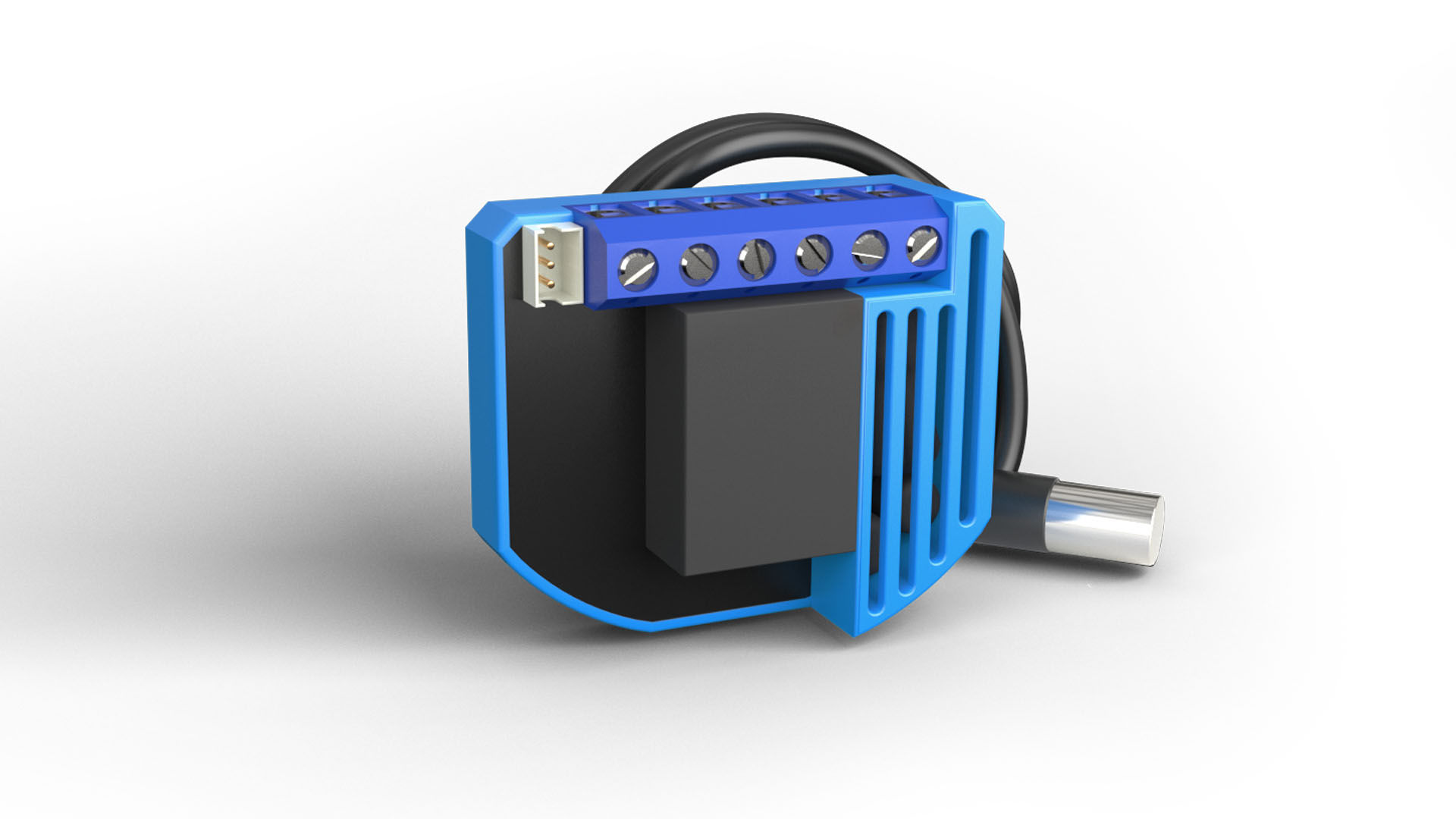

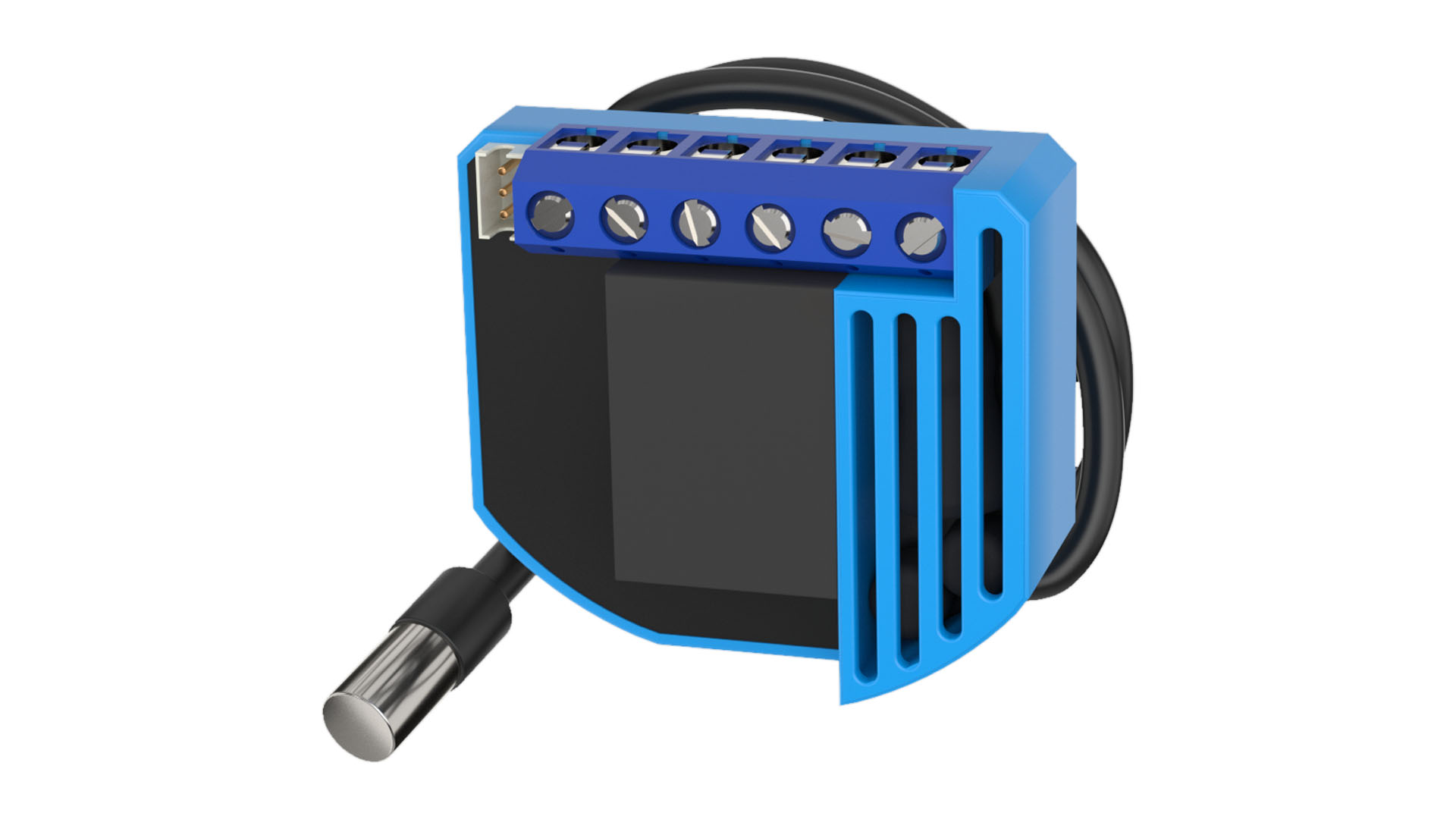

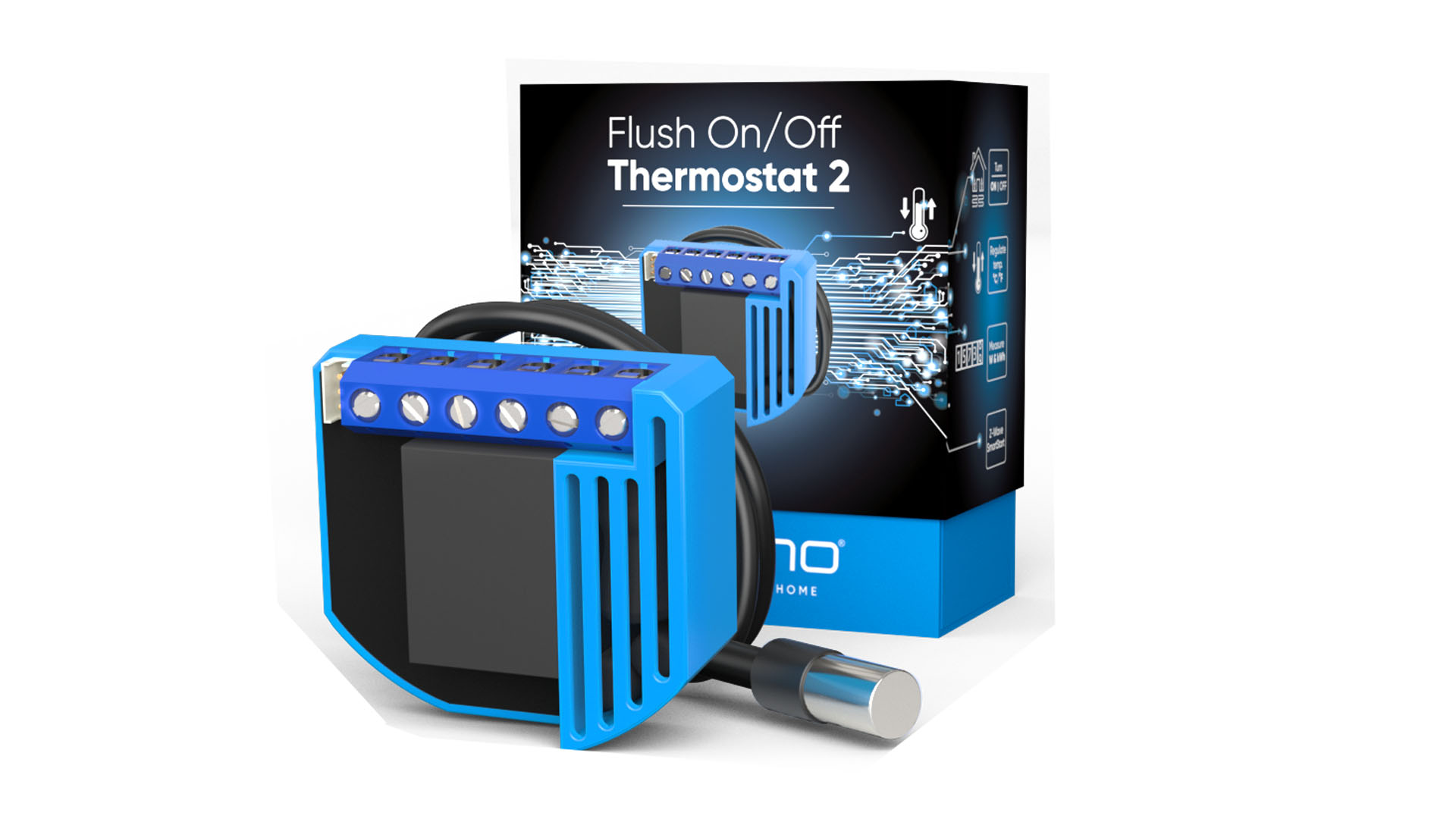

Flush On/Off Thermostat 2

Short Description

The Qubino Flush On/Off Thermostat 2 can turn On/OFF the connected electrical device and can measure the power consumption of the connected device. All of that can be done manually or remotely. And: - It supports SmartStart inclusion for quick set up - Works on 110-240 VAC or 24-30 VDC

Long Description

The Qubino On/Off Thermostat 2 is a wireless heating and hot water controller that also measures the power consumption. It's ideal for wireless control of electric or water-based underfloor heating systems, electric water heaters, hot water pumps, and electric radiators. It allows: Scheduling the temperature of your home to your lifestyle. Automatically turn the smart heating system off after leaving the home in the morning and turn it back on remotely before returning. The temperature sensors can trigger the heating system to turn on occasionally and prevent the temperature to drop. On/Off Thermostat 2 can significantly reduce the energy needs and save money — while keeping the house at an optimal temperature. Heating every room separately offers a maximum level of well-being while making your home more energy-efficient. The Qubino Smart Thermostat 2 enables smart zoning, which means you can turn the heating off in isolated rooms and save energy without compromising your comfort.

Brand

QUBINO

Product Identifier

ZMNKID3

Product Line

QUBINO

OEM Version

HW: 1 FW: 10.00:10.00

Hardware Platform

ZM5202

Z-Wave Version

6.81.03

Library Type

SLAVE_ENHANCED_232

Device Type

Thermostat - HVAC

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0159

Product Type ID

0x0005

Product ID

0x0054

User Icon

0x1200

Installer Icon

0x1200

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Thermostats, Energy Meters, All Lighting Devices, On/Off Switches/Devices, HVAC

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Parameter no. 59 - Thermostat mode

This parameter determines how the device will operate if it will operate in the heating mode or in the cooling mode. The range of the hysteresis will remain the same, only operation will change from heating to cooling and vice versa NOTE1: After parameter change, first exclude device (without setting parameters to default value) and then re include the device!

From	To	Description
0	1	Values (size is 1 byte dec): • default value 0 • 0 - Heat mode • 1 - Cool mode NOTE1: After parameter change, first exclude device (without setting parameters to default value) and then re include the device!

Parameter no. 43 – Hysteresis Upper temperature offset

This parameter defines minimum temperature difference between real measured temperature and set-point temperature to turn device on in heat mode or turn device off in cool mode.

450

From	To	Description
0	450	Values (size is 2 byte dec): • default value 5 (0.5 °C) • 0 – 450 NOTE1: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is 0 – 250 (0.0 °C – 25.0 °C, resolution 0.1 °C) NOTE2: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 0 – 450 (0.0 °F – 45.0 °F, resolution 0.1 °F) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

Parameter no. 1 – Input I1 switch type

With this parameter, you can select between push-button (momentary) and on/off toggle switch types. Values (size is 1 byte dec): • default value 1 • 0 - push-button (momentary) • 1 - on/off toggle switch

From	To	Description
0	1	With this parameter, you can select between push-button (momentary) and on/off toggle switch types.

Parameter no. 4 – Input 1 contact type

This parameter determines how the switch or push-button is connected.

From	To	Description
0	1	Values (size is 1 byte dec): • default value 0 • 0 - NO (normally open) input type • 1 - NC (normally close) input type

Parameter no. 42 – Watt Power Consumption Reporting Time Threshold for Q⬆

Set value refers to the time interval with which power consumption in Watts is reported (30 – 32767 seconds) starting from time of last Watts reported. If for example 300 is entered, energy consumption reports will be sent to the gateway (hub) every 300 seconds (or 5 minutes). EXAMPLE: If we set value to 30 seconds and the device reports Watts because of percent change of power (parameter 40 - Watt Power Consumption Reporting Threshold) at time = 5 seconds, then the device will send next meter report at time = 35 seconds (assuming the device has not sent report within interval 5 to 35 seconds).

32767

600

From	To	Description
0	32767	Values (size is 2 byte dec): • default value 600 (600 seconds = 10 minutes) • 0 - Power consumption reporting disabled • 30 - 32767 = 30 - 32767 seconds. Power consumption reporting enabled. Report is sent according to time interval (value) set here. EXAMPLE: If we set value to 30 s and the device reports Watts because of percent change of power (parameter 40 - Watt Power Consumption Reporting Threshold) at time = 5 seconds, then the device will send next meter report at time = 35 s (assuming the device has not sent report within interval 5 to 35 seconds).

Parameter no. 44 – Hysteresis Lower temperature offset

This parameter defines minimum temperature difference between real measured temperature and set-point temperature to turn device off in heat mode or turn device on in cool mode. NOTE1: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is 0 – 250 (0.0 °C – 25.0 °C, resolution 0.1 °C) NOTE2: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 0 – 450 (0.0 °F – 45.0 °F, resolution 0.1 °F) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

450

From	To	Description
0	450	Values (size is 2 byte dec): • default value 5 (0.5 °C) • 0 - 450 NOTE1: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is 0 – 250 (0.0 °C – 25.0 °C, resolution 0.1 °C) NOTE2: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 0 – 450 (0.0 °F – 45.0 °F, resolution 0.1 °F) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

Parameter no. 45 – Antifreeze

Set value determines at which temperature the device will be turned on even (if the thermostat was manually set to off).

-125

1000

From	To	Description
-125	1000	Values (size is 2 byte dec): • default value 50 (5.0 °C) • -125 – 545 • 1000 - Antifreeze functionality disabled NOTE1: Antifreeze is activated only in heating mode and it uses hysteresis of ±0.5 °C. NOTE2: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is -125 – 125 (-12.5 °C – 12.5 °C, resolution 0.1 °C) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 95 – 545 (9.5 °F – 54.5 °F, resolution 0.1 °F) NOTE4: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

Parameter no. 60 – Too low temperature limit

This parameter determines the temperature at which the device sends a command to the associated device - to turn ON device or to turn OFF device. NOTE1: Too low temperature limit is used with Association Group 3. NOTE2: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is -150 – 1000 (-15.0 °C – 100.0 °C, resolution 0.1 °C) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 50 – 2120 (5.0 °F – 212.0 °F, resolution 0.1 °F) NOTE4: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

-150

2120

From	To	Description
-150	2120	Values (size is 2 byte dec): • Default value 50 (Too low temperature limit is 5.0 °C) • -150 – 2120 NOTE1: Too low temperature limit is used with Association Group 3. NOTE2: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is -150 – 1000 (-15.0 °C – 100.0 °C, resolution 0.1 °C) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 50 – 2120 (5.0 °F – 212.0 °F, resolution 0.1 °F) NOTE4: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

Parameter no. 61 – Too high temperature limit

This parameter determines the temperature at which the device sends a command to the associated device, to turn ON device or to turn OFF device. NOTE1: Too high temperature limit is used with Association Group 3. NOTE2: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is 1 – 1000 (0.1 °C – 100.0 °C, resolution 0.1 °C) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 322 – 2120 (32.2 °F – 212.0 °F, resolution 0.1 °F) NOTE4: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

2120

700

From	To	Description
1	2120	Values (size is 2 byte dec): • default value 700 (too high temperature limit is 70.0 °C) • 1 – 2120 NOTE1: Too high temperature limit is used with Association Group 3. NOTE2: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is 1 – 1000 (0.1 °C – 100.0 °C, resolution 0.1 °C) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 322 – 2120 (32.2 °F – 212.0 °F, resolution 0.1 °F) NOTE4: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

Parameter no. 63 – Output switch selection

Set value determines the type of the device connected to the on/off output. The output type can be normally open (NO) or normally closed (NC).

From	To	Description
0	1	Values (size is 1 byte dec): • default value 0 • 0 - When switch/device is off the output is 0 V (NC). • 1 - When switch/device is off the output is 240 Vac or 24 Vdc (NO).

Parameter no. 78 – Scale Selection

This parameter determines in which measurement unit the device will report temperature (Fahrenheit or Celsius) and determines the scale the configuration parameters (43, 44, 44, 45, 60, 61, 110, 120) are interpreted as. NOTE1: This scale has influence on Temperature reporting. The device is capable of receiving a Set point in all supported scales. NOTE2: This configuration parameter has impact on configuration parameters 43, 44, 44, 45, 60, 61, 110, 120. If scale is set to degrees Fahrenheit configuration values at parameters 43, 44, 44, 45, 60, 61, 110, 120 will be converted to degrees Celsius. Please note that converted values could drift when converting values back and forth.

From	To	Description
0	1	Values (size is 1 byte dec): • Default value 0 = degrees Celsius • 0 = degrees Celsius • 1 = degrees Fahrenheit

Parameter no. 110 – Temperature Sensor Offset Settings

Set value is added to or subtracted from the actually measured value to adjust the temperature report sent by an external sensor. NOTE1: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is -150 – 150 (-15.0 °C – 15.0 °C, resolution 0.1 °C) NOTE2: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is -270 - 270 (-27.0 °F – 27.0 °F, resolution 0.1 °F) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

-270

270

From	To	Description
-270	270	Values (size is 2 byte dec): • default value 0 • -270 - 270

110

Parameter no. 110 – Temperature Sensor Offset Settings

-270

270

From	To	Description
-270	270	Values (size is 2 byte dec): • default value 0 • -270 - 270 NOTE1: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is -150 – 150 (-15.0 °C – 15.0 °C, resolution 0.1 °C) NOTE2: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is -270 - 270 (-27.0 °F – 27.0 °F, resolution 0.1 °F) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

120

Parameter no. 120 – Temperature Sensor Reporting Threshold

This configuration parameters sets reporting threshold between reported temperature and actual temperature for reporting temperature at association group 4.

270

From	To	Description
0	270	Values (size is 2 byte dec): • Default value 5 = 0.5°C • 0 – Reporting disabled • 0 – 270 NOTE1: If configuration parameter 78 (Scale selection) is set to Celsius, then valid interval is 0 – 150 (0 °C – 15.0 °C, resolution 0.1 °C) NOTE2: If configuration parameter 78 (Scale selection) is set to Fahrenheit, then valid interval is 0 - 270 (0 °F – 27.0 °F, resolution 0.1 °F) NOTE3: If configuration parameter 78 (Scale selection) is set to Fahrenheit, note that Fahrenheit values will be converted to Celsius degrees. Due to conversion algorithm please be advised that configuration value could drift when converting values back and forth.

Texts

Supported / Controlled Meter Types

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
