Product Recognition | |
|---|
Certification Number | ZC10-17085753 |
|---|

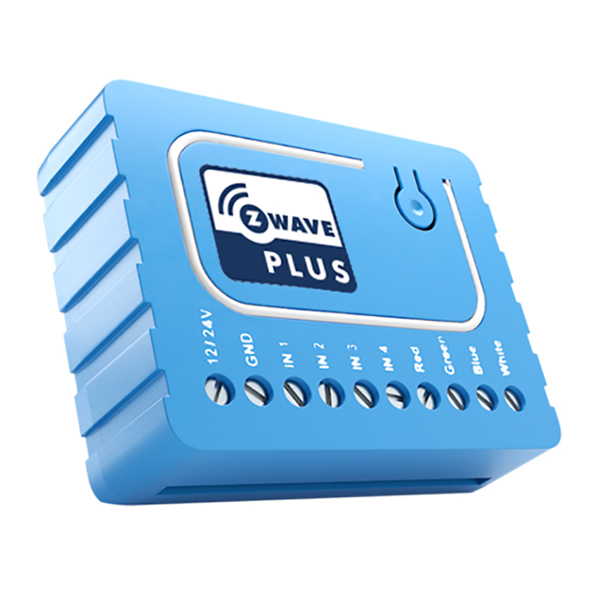

Name | Flush RGBW Dimmer Switch Color R.G.B.W |
|---|
Short Description | Qubino Flush RGBW Dimmer module is used to control RGB/RGBW strips and LED strips or bulbs to create countless colour options and has six special scene effects. |
|---|
Long Description | Qubino Flush RGBW module is used to control RGB/RGBW strips and LED strips or bulbs to create countless colour options and has 5 special scene effects. It can also control halogen lights and fans. Its extremely small size allows for easy installation behind wall sockets and switches. Controlled devices may be powered by 12 or 24 VDC. All IN and OUT terminals may be user configured for LED control or 100 kΩ signal readouts. |
|---|
Brand | QUBINO |
|---|
Product Identifier | Flush RGBW Dimmer / ZMNHWD3 |
|---|
OEM Version | HW: 255 FW: 2.07 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0159 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0054 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_COLOR_V2 | Switch Color V2 | 0x33 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Electric Load Type | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Input Switch type | Available config. parmeters(data type is 1 Byte DEC): * default value 1 * 1- bi- stable switch type * 2- mono stable(push button) switch type Note: Please power cycle the device when parameter is changed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 2 | Input Switch type |
| 2 | Switch mode | Available config. parmeters(data type is 1 Byte DEC): * default value 1 * 1-Normal mode * 2-Brightness mode * 3-Rainbow mode Note: Using this parameter,it is possible to select various modes of RGBW Dimmer operation. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 3 | Switch mode |
| 3 | Auto Scene mode set | Available config. parmeters(data type is 1 Byte DEC): * default value- * 1-Ocean * 2-Lightning * 3-Rainbow * 4-Snow * 5-Sun Note: Activation of the programmed scene changing color shades. Note: Using this parameter,it is possible to select various modes of RGBW Dimmer operation. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 5 | Auto Scene mode set |
| 4 | Auto scene duation | Available config. parmeters(data type is 1 Byte DEC): * default value 3 * 1 -127 * 128 - 255 delay duration is from 1 min. to 127min Note: Using this parameter, it is possible to change Auto scene mode duration | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
128 | 255 | delay duration is from 1 min. to 127 min. | 1 | 127 | delay duration is from 1s to 127s |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Connect the module to the power supply
2. Enable inclusion mode on your Z-Wave controller
3. Press and release the S (Service) button 3 times within 2 seconds | 2 | Exclusion | 1. Connect the module to the power supply
2. Make sure the module is within direct range of your Z-Wave controller or use a hand-held Z-Wave remote to perform exclusion
3. Press and release the S (Service) button 3 times within 2 seconds
NOTE: The module will be excluded from your network, but any custom configuration parameters will not be erased. | 5 | Factory Reset | FACTORY RESET
1. Connect the module to the power supply
2. Press and hold the S (Service) button for at least 10 seconds
NOTE: By resetting the module, all custom parameters previously set on the module will return to their default values, and owner ID will be deleted. Use this reset procedure only when the main controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
