ZC10-19016361

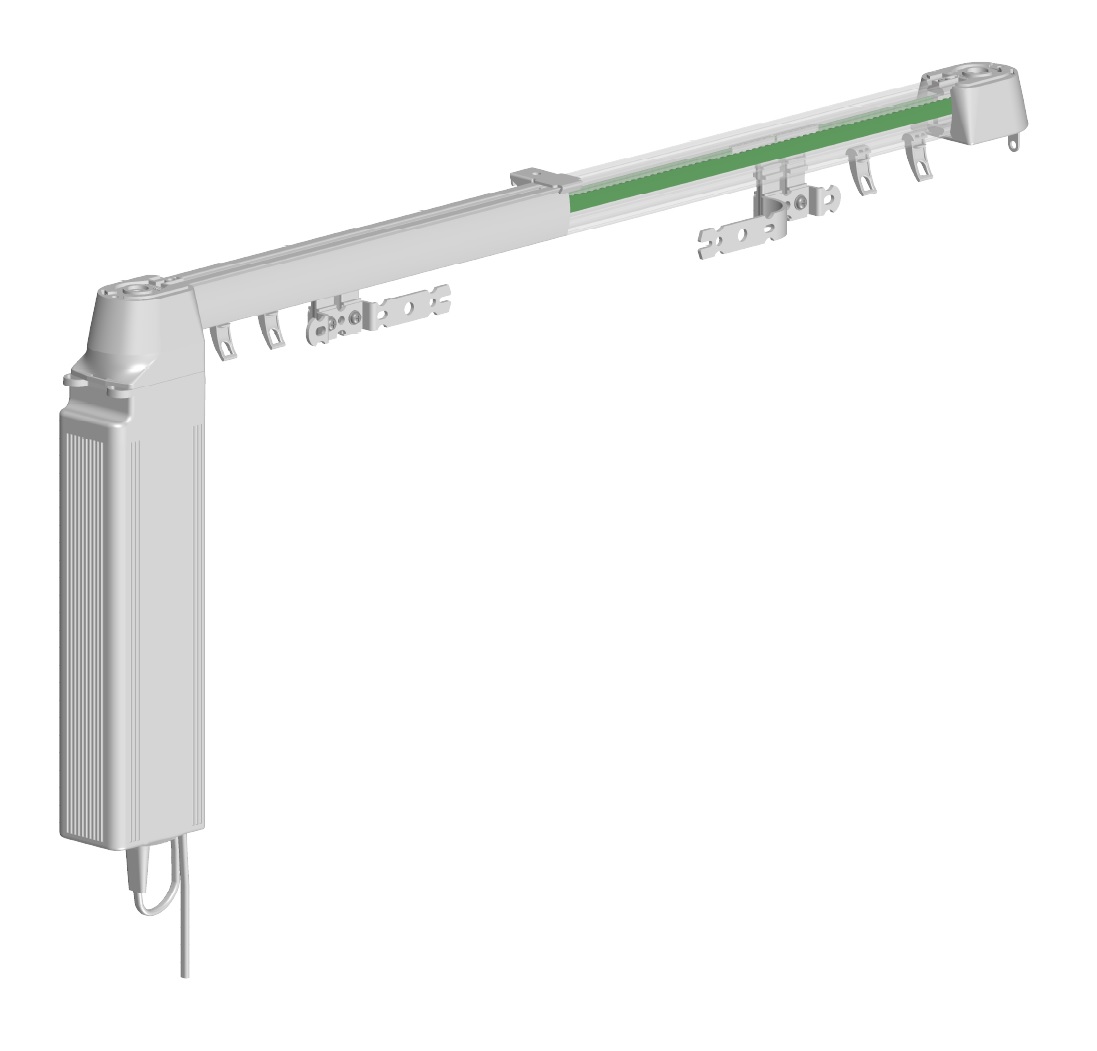

Forest Shuttle LZ IN

Noiseless motorized curtain track with many features: Electronic limit setting, Touch Impulse Technology, Integrated Emergency Control when power fails, slow start-stop, 2 speeds

Forest Shuttle L Z-wave, Shuttle S Z-wave (US) and Forest motorized curtain track systems (FMS) make an unbeatable combination when it comes to noiseless operated motorized curtains. The smooth and silent running curtain track system can, in addition to remote operation, also be operated by hand. Thanks to Forest’s special Touch Impulse Technology, a gentle pull on the curtain is enough to activate the motor. The Forest Shuttle L Z-wave, Shuttle S Z-Wave (US) makes sure that your curtains will always hang beautifully smooth and supple. Opened as well as closed! • Touch Impulse Technology, gently pulling the curtain will activate the motor. • Integrated Emergency Control ensures manual operation of the curtain in case of power failure. • Modular motor, different modules can be attached for various control options: Radio Frequency, Switch, Infrared, Domotics, Building/Hotel Automation, Serial Communication, Z-Wave, etc. • Forest Shuttle L Z-Wave and Shuttle S Z-wave (US) will have an internal Z-Wave receiver and BUS connection. • Silent motor, speeds: 14 and 17 cm/sec., with slow start and slow stop. • Full automatic setting of the limits. • Stack-back position programmable to every desired setting. • Forest Shuttle L Z-Wave and Shuttle S Z-wave (US) have an integrated power supply. • Motor pulley connects motor and FMS track. Also available in upside down version to conceal the motor into the ceiling. • Available track lenghts: 5.80 meters and 7.00 meters. FMS track and components available in white, grey and black.

Forest Drapery Hardware

FS2Z5232000009

HW: 1 FW: 1.00

ZM5202

6.51.10

SLAVE_ENHANCED_232

Window Covering - Pos/End Aware

ROLE_TYPE_SLAVE_ALWAYS_ON

0x0207

0x0027

0x0100

0x1A00

0x1A00

IN: 865.20MHz

Window Covering

India

Yes

Yes

40
