Product Recognition

Certification Number

ZC10-15090012

Name

Garage Door Controller Gen5

Short Description

Long Description

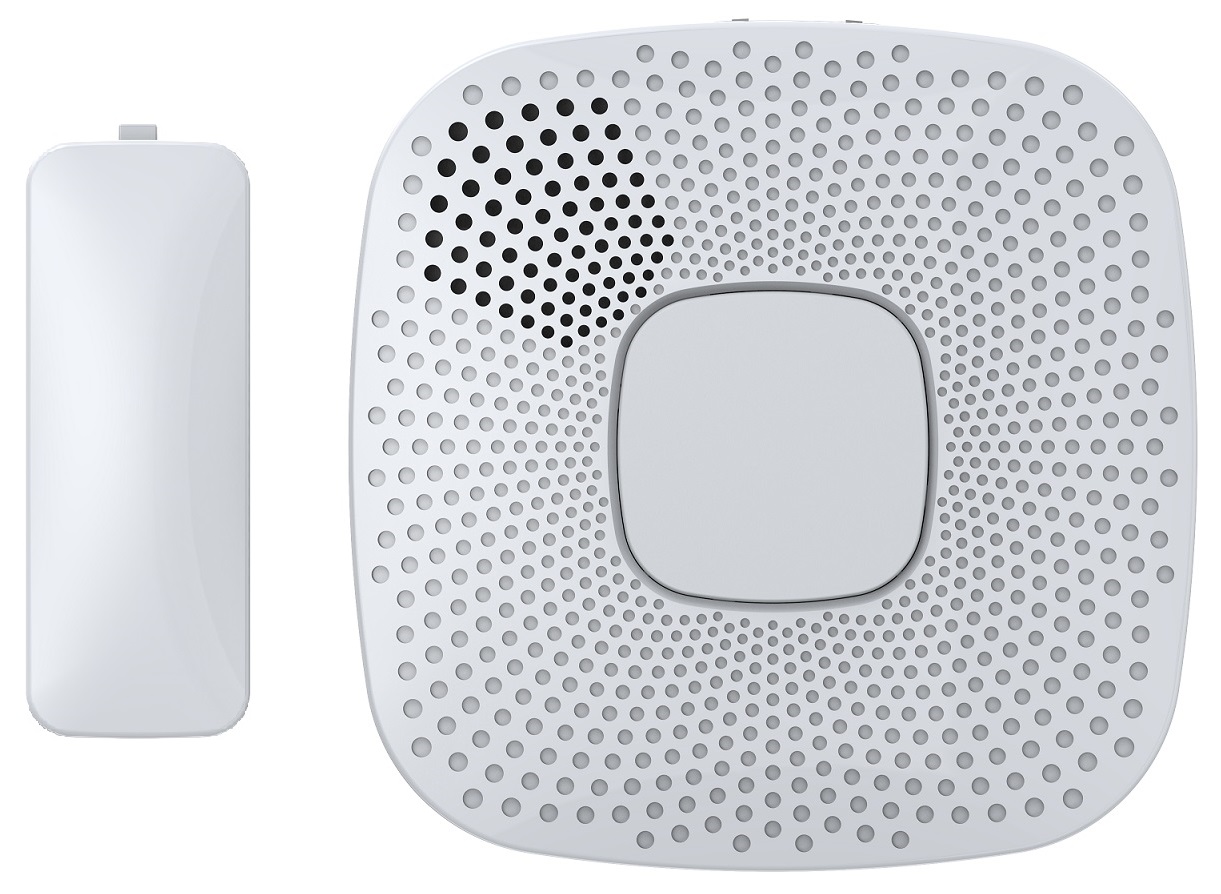

Aeon Labs Garage Door Controller is a smart and wireless Garage Door Control system, you can control the garage door to open, close, or stop moving via wireless signal on your gateway client or phone application. The Garage Door Controller allows you to configure different alarm sounds to indicate the door’s action. Each action alarm sound can be customized. To change or update new alarm sounds for the Garage Door Controller, connect the Garage Door Controller to your PC host with a USB cable and download your sound files to the flash memory (128 MB) of the Garage Door Controller. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. It is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade.

Brand

Aeotec

Product Identifier

ZW062-C

OEM Version

HW: 62 FW: 1.11

Hardware Platform

ZM5101

Z-Wave Version

6.51.06

Library Type

SLAVE_ENHANCED_232

Device Type

Secure Barrier Add-On

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0086

Product Type ID

0x0003

Product ID

0x003E

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Motor Control

Countries / Regions

European Union

Controlled Command Classes

Documents

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Start playing or Stop playing the ringtone.

This parameter is used to audition or test the product's ringtone.

From	To	Description
-1	-1	Stop playing the ringtone.
1	100	Start playing the ringtone that you select.

Test the volume of the current ringtone

This parameter is used to audition or test the product's ringtone volume.

From	To	Description
1	10	There are 10 volume levels can be set for testing.

Get the environment temperature

This parameter is used to get the temperature where near to your Garage Door Controller.

From	To	Description
0	500	The available temperature range is 0 to 50 Celsius

Define the function of Button- and Button+.

This parameter is used to define the function of Button- and Button+.

From	To	Description
1	1	Pressing it once, the Button+ and Button- are defined to be the control item of Next and Previous. Press and hold it, the Button+ and Button- are defined to be used to increase and decrease the volume.
0	0	Pressing it once, the Button+ and Button- are defined to be used to increase and decrease the volume. Press and hold it, the Button+ and Button- are defined to be the control item of Next and Previous.

252

Enable/Disable Lock Configuration

This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable)

From	To	Description
0	0	All configuration parameters are configurable.
1	1	All configuration parameters are not configurable (Locked).

255

Reset to default factory setting

This parameter is used to reset product to default factory setting. (There are just 2 values can be used).

From	To	Description
1	1	Reset all configuration parameters to default setting.
1431655765	1431655765	Reset the product to default factory setting and be excluded from the Z-wave network.

Enable/Disable to send notifications to associated devices to associated devices.

This parameter is used to enable/disable to send notifications to associated devices (in Group 1) when the state of Doorbell Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send barrier operator report CC).

From	To	Description
2	2	Send BARRIER OPERATOR Report Command
0	0	Send Nothing (Disabled)
1	1	Send HAIL Command

241

Pair the Sensor with Garage Door Controller

This parameter is used to pair the Sensor with Garage Door Controller. Note: 1. This procedure should only be used when the complimentary Sensor is missing or inoperable and you have another new Sensor that would be paired with your Garage Door Controller. 2. When the pairing is started, the Network LED will blink slowly, at this time, you just need to press the Temper Switch back of the Sensor once. If the Network LED change to be solid, which means the pairing is successful. Otherwise, repeat the steps.

From	To	Description
1431655681	1431655681	Start the Sensor pairing mode.

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes
