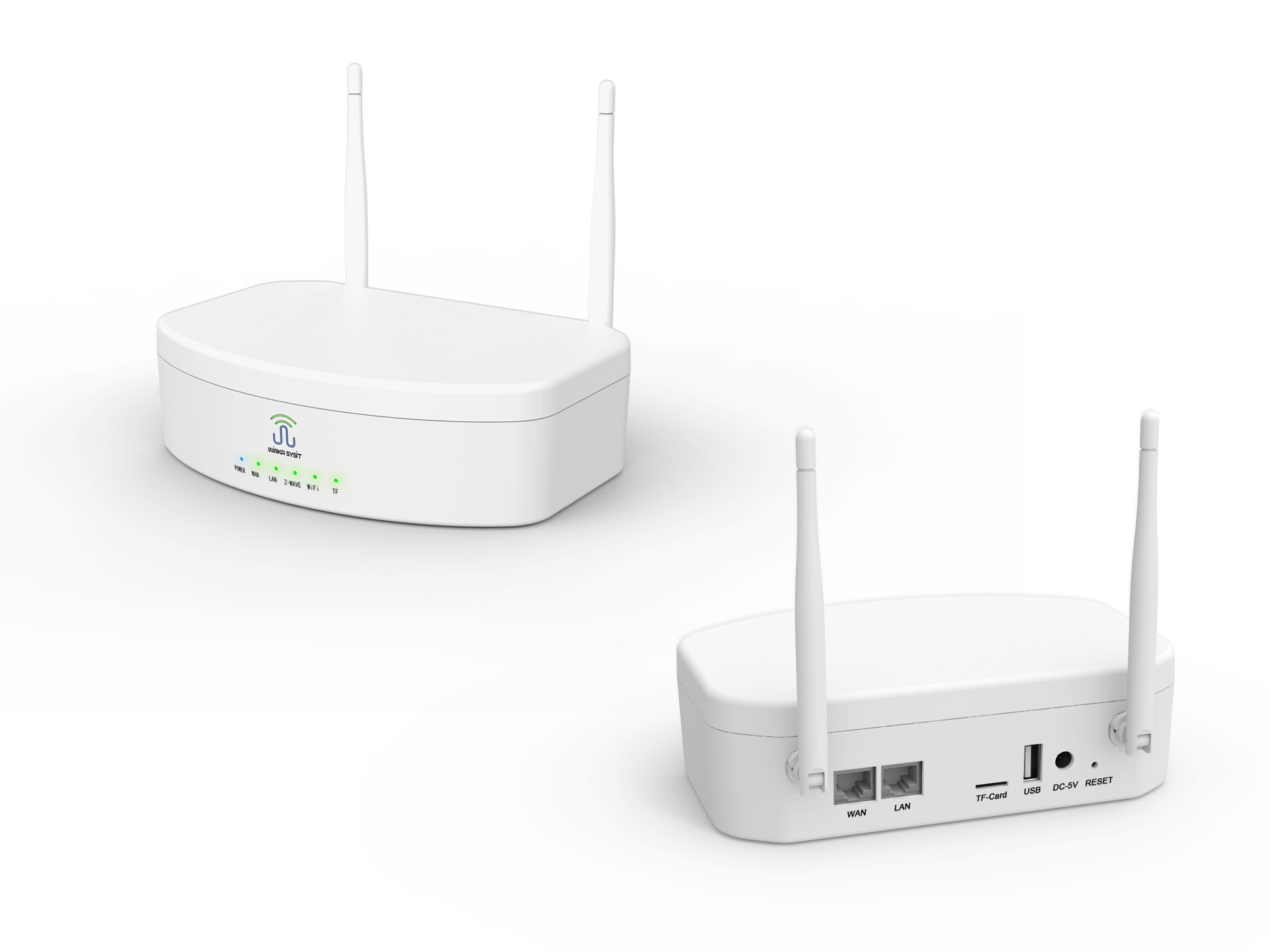

Product Recognition | |
|---|
Certification Number | ZC10-18026022 |
|---|
Name | Gateway |
|---|
Short Description | Gateway Series Controller |
|---|
Long Description | This is our fastest and most affordable series controller! The unit is designed to control light switches, thermostats, door locks, audio / video equipment, cameras, garage doors, water valves, energy monitors and much more. Home owners can access at home or via the cloud with just about any smartphone, tablet or table-top touchscreen. Your intelligence stays at home, ensuring better security and reliability. |
|---|
Brand | WINKA SYSIT |
|---|
Product Identifier | WK-0001 |
|---|
OEM Version | HW: 18 FW: 4.33:01.00 |
|---|
Hardware Platform | ZM5304 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | CONTROLLER_STATIC |
|---|
Device Type | Gateway |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x0331 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x1001 |
|---|
User Icon | 0x0500 |
|---|
Installer Icon | 0x0500 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Controllers, Computer Controller Interfaces |
|---|
Countries / Regions | European Union |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_INDICATOR | Indicator | 0x87 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_METER | Meter | 0x32 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Neutral Wire Required | | Sensors | Value |
|---|
Air Temperature | Luminance |
| Communications Protocol | | Supported Meter Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
| Gateway Has Preferred Partners | | Switch Load Capacity Current | | Supported Notification Types | Value |
|---|
Access Control | Home Security | Siren |
| Color | | Communications Connections | Value |
|---|
Ethernet (Wired) | Ethernet (Wireless/WiFi) |
| Switch Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 for Lifeline, when reset gateway, it will send device reset locally notification to Associate nodes, if no node in group, it will send broadcast reset locally notification |
|
|---|
Texts | ID | Description | Value |
|---|
23 | Controller Inclusion | The user clicks the ""Include Device"" menu, and it will pop up a 60s countdown including device prompt box. At the same time, the button on the device being included is pressed down to three (in 1.5s, press three buttons) or other way to let device to start learning mode. It displays ""Inclusion Success"", indicating that the device will be displayed in the interface when the device is included | 24 | Controller Exclusion | The user first clicks on the ""Exclude Device"" menu, and it will pop up a 60s countdown exclude device prompt box , at the same time, the buttons on the included device are quickly pressed three (with three buttons in 1.5s) or other way to let device to start learning mode, then it will showing ""Exclusion Success"" when device is exclusion from network success | 5 | Factory Reset | When the user clicks the icon in the APP homepage interface at top right corner, The user clicks ""Setting"" again and enters the setting interface,The user clicks the ""Z-WAVE Controller Reset"" menu in the interface as shown above and the ""Warning Dialog"" prompt interface pops up , after clicking ""OK"" to confirm the reset. (to use the reset procedure only when the primary controller is missing or inoperable.) | 3 | Learn Mode (adding another controller) | The user clicks ""Z-WAVE Controller Learning Mode"" on the APP , the ""Learning Model"" prompt box will be popped , then click ""OK"" to show ""Being processed...""The ""Learn mode start"" is displayed in APP indicating that the learning mode is successfully opened |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
