| Product Recognition | |
|---|
| Certification Number | ZC10-15090008 |
|---|

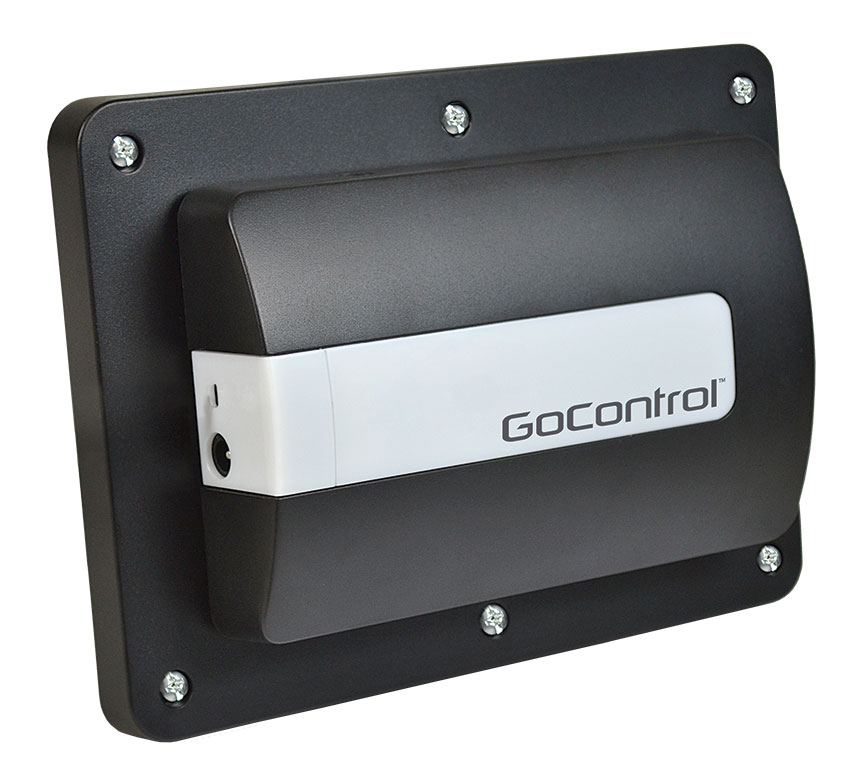

| Name | GD00Z-4 |
|---|
| Short Description | Garage Door Remote Controller Accessory opens or closes a sectional garage door remotely through a Z-Wave certified Gateway or Security Panel. |
|---|
| Long Description | Garage Door Remote Controller Accessory opens or closes a sectional garage door remotely through a Z-Wave certified Gateway or Security Panel. Compatible with virtually any garage door opener connected to a sectional garage door. Audible and visual warnings prior to remotely-activated door movement, meeting UL 325 safety requirements. Included tilt sensor reports door "open" or "close" information. |
|---|
| Brand | GoControl |
|---|
| Product Identifier | GD00Z-4 |
|---|
| OEM Version | 02 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Secure Barrier Add-On |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x014F |
|---|
| Product Type ID | 0x4744 |
|---|
| Product ID | 0x3530 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Motor Control |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 5 | Factory Reset | Press and release the button in the side of the unit 5 times within 10 seconds only when the primary controller is not available. | | 1 | Inclusion | With the hub in ""Add"" mode, press the release the button on the side of the GD00Z. | | 2 | Exclusion | With the hub in ""Remove"" mode, press the release the button on the side of the GD00Z. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
