Product Recognition | |
|---|
Certification Number | ZC10-18026032 |
|---|
Name | GKT-1000A |
|---|

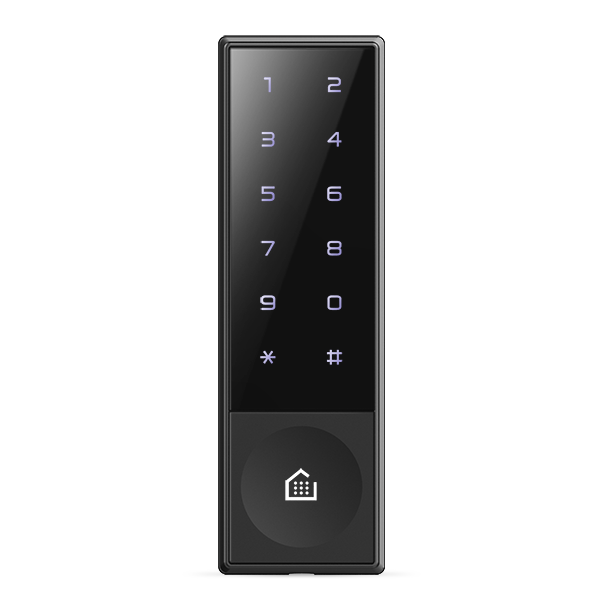

Short Description | Guardtec GKT-1000A Digital Door Lock |
|---|
Long Description | The GKT-1000A Z-Wave is a secure electronic door look that supports the Z-Wave Plus standard, which is compatible with earlier version of Z-Wave.
A security enabled Z-Wave Controller must be use. The GKT-1000A supports the standard security S0 and the new security standard S2. |
|---|
Brand | GUARDTEC |
|---|
Product Identifier | GKT-1000A |
|---|
OEM Version | HW: 1 FW: 1.01:01.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x037B |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | Value |
|---|
Access Control | Home Security | Emergency Alarm |
| Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Communications Connections | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline | 1 | 5 | 0 | Doorlock Op |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
5 | Alarm | 1=Enable, 2=Disable | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
1 | 2 | 1=Enable, 2=Disable |
| 1 | Auto Relock | 1=Auto, 2=Manual | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 2 | 1=Auto, 2=Manual |
| 2 | Relock Time | Relock Time 1~60 sec. | 0 | 1 | 0 | 0 | 7 | From | To | Description |
|---|
1 | 60 | 1~60 sec. |
| 3 | Sound | 1=Mute, 2=Normal, 3=Max | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
1 | 3 | 1=Mute, 2=Normal, 3=Max |
| 4 | Sencer Type | 1=NO, 2=NC | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 2 | 1=NO, 2=NC |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | * Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
1. Press the [*] button.
2. Press the Master Pin [1234] button after pressing the [#] button.
3. press the [00] button after pressing the [*] button. | 1 | Inclusion | 1. Set the controller in inclusion mode.
2. Press the [*] button.
3. Press the Master Pin [1234] button after pressing the [#] button.
4. press the [88] button after pressing the [*] button. | 2 | Exclusion | 1. Set the controller in exclusion mode.
2. Press the [*] button.
3. Press the Master Pin [1234] button after pressing the [#] button.
4. press the [99] button after pressing the [*] button. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle | Emergency Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
