Certification Number	ZC10-17055590

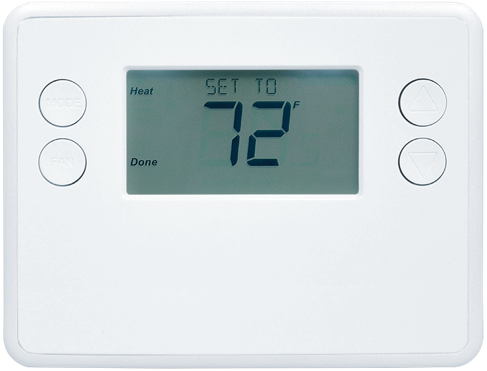

Name	GoControl Z-Wave Plus Battery Powered Smart Thermostat
Short Description	The GC-TBZ48 Z-Wave Plus Thermostat is a programmable, Z-Wave communicating thermostat.
Long Description	The GC-TBZ48 Z-Wave Plus Thermostat is a programmable, Z-Wave communicating thermostat. It can be powered using 24VAC, or using four (4) AA batteries. Using Z-Wave technology, end users have the ability to use most compatible Z-Wave hubs/controllers to operate and animate the thermostat, configure programming settings, as well as to display current conditions in the home or office.
Brand	Nortek
Product Identifier	GC-TBZ48L
OEM Version	HW: 1 FW: 1.00:02.06
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Thermostat - HVAC
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x014F
Product Type ID	0x5442
Product ID	0x5436
User Icon	0x1200
Installer Icon	0x1200
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Thermostats
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_THERMOSTAT_FAN_STATE Thermostat Fan State 0x45 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 10006936C GC-TBZ48L Lowe's Instructions(ENG).pdf
Features	Feature Values Thermostat HVAC Systems Supported Value Heat Only Cool Only Multi Stage Heat Pump Thermostat Modes Value Heat Cool Auto Auxiliary/Emergency Heat Fan Only Battery Type Value AA Color Value White Battery Quantity Value 4 Thermostat Power Source Value Battery Power Stealing (hard-wired 24V)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline Group 1 Association is the default status report channel in Z-Wave+ lifeline requirements. Group 1 Alerts are to notify an associated device of a thermostat generated change. Thermostat generated changes are those changes that originate at or by the thermostat. The following Command Classes can be sent to the lifeline: • BATTERY_REPORT • DEVICE_RESET_LOCALLY_NOTIFICATION • SENSOR_MULTILEVEL_REPORT • THERMOSTAT_SETPOINT_REPORT • THERMOSTAT_SETPOINT_MODE • THERMOSTAT_FANMODE_REPORT • THERMOSTAT_FANSTATE_REPORT • THERMOSTAT_OPERATINGSTATE_REPORT • THERMOSTAT_CONFIGURATION_REPORT 2 5 0 Group 2 Association Alerts will send a BASIC_SET 0xFF when a Cool Call starts and a BASIC_SET 0x00 when the Cool Call ends. 3 5 0 Group 3 Association Alerts will send a BASIC_SET 0xFF when a Heat Call starts and a BASIC_SET 0x00 when the Heat Call ends.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 55 Cool Timer (hours) Sets Cool Timer (hours). 0 to 4000. 0 2 0 0 0 From To Description 0 4000 Hours 11 H Delta Stage 1 ON Sets the delta from setpoint that stage 1 heating starts 0 1 0 0 1 From To Description 1 6 Degrees 24 Display Lock Sets locking and unlocking of control of the display screen. 0 1 0 0 0 From To Description 0 0 Unlocked 1 1 Locked 3 Change Over Type Sets change over type. Change over with cool or change over with heat. 0 1 0 0 0 From To Description 1 1 CO w/Heat 0 0 CO w/Cool 43 Remote Sensor 1 Node Number Sets remote sensor 1 node number. 0=disabled. 0 1 0 0 0 From To Description 0 252 node number 4 2nd Stage Heat Enable Enables or disables the second stage heat operation. 0 1 0 0 0 From To Description 1 1 Enabled 0 0 Disabled 9 MRT Sets the Minimum Run Time (MRT) delay before a heating/cooling cycle can turn off. Sets heating/cooling cycle time. Prevents rapid on/off cycling. 0 1 0 0 3 From To Description 3 9 Minutes 6 2nd Stage Cool Enable Enables or disables the second stage cool operation. 0 1 0 0 0 From To Description 1 1 Enabled 0 0 Disabled 1 System Type Sets the system type. Standard or Heat Pump 0 1 0 0 0 From To Description 1 1 Heat Pump 0 0 Standard 46 Remote Sensor 1 Temperature Displays remote sensor 1 Temperature. 0 1 0 0 0 From To Description 0 0 N/A 49 R1 Sensor Temp Off set Sets R1 Sensor Temp Offset. -7 to 7 degrees 0 1 0 0 0 From To Description -7 7 Degrees 52 Filter Timer (hours) Sets Filter Timer (hours). 0 to 4000 0 2 0 0 0 From To Description 0 4000 Hours 48 Internal Sensor Temp Offset Sets Internal Sensor Temp Offset. -7 to 7 0 1 0 0 0 From To Description -7 7 Degrees 17 C Delta Stage 1 ON Sets the delta from setpoint that stage 1 cooling starts. 0 1 0 0 1 From To Description 1 6 Degrees 2 Fan Type Sets the fan type. Electric (Fan w/Heat) or Gas (no Fan w/Heat) 0 1 0 0 0 From To Description 1 1 Electric (Fan w/Heat 0 0 Gas (no fan w/Heat 5 Aux Heat Enable Enables or disables aux heat operation. 0 1 0 0 1 From To Description 0 0 Disabled 1 1 Enabled 7 C/F Type Enables changing from Centigrade to Fahrenheit or vice versa. 0 1 0 0 1 From To Description 1 1 Fahrenheit 0 0 Centigrade 8 MOT Sets the Minimum Off Time (MOT) delay before another heating/cooling cycle can begin. Provides compressor short cycle protection. “Wait” is displayed on screen when active. 0 1 0 0 5 From To Description 5 9 Minutes 40 Setback Mode Enables setback or Un-Occupied mode. Temperature setback reduces how often the heating or cooling system operates by allowing the temperature in a home to drift to a lower (heating mode) or higher (cooling mode) temperature. 0 1 0 0 0 From To Description 0 0 No Setback 2 2 Un-Occupied Mode 53 Filter Timer Max (hrs) Sets Filter Timer Max (hrs). 0 to 4000. 0 2 0 0 300 From To Description 0 4000 Hours 54 Heat Timer (hours) Sets Heat Timer (hours). 0 to 4000. 0 2 0 0 0 From To Description 0 4000 Hours 61 Fan Purge Heat Sets Fan Purge Heat. Sets the system blower delay off time after a heat call ends (fan purge). 0 to 90 Seconds. 0 1 0 0 0 From To Description 0 90 Seconds 62 Fan Purge Cool Sets Fan Purge Cool. Sets the system blower delay off time after a cool call ends (fan purge). 0 to 90 Seconds 0 1 0 0 0 From To Description 0 90 Seconds 186 0xBA Temperature Delta Autosend Threshold (how many degree change from last autosend). 1 to 5 degrees. 0 1 0 0 2 From To Description 1 5 Degrees 187 0xBB Periodic Temperature Send Interval (min). 0=Disabled. 1-120 minutes. 0 1 0 0 0 From To Description 1 120 Minutes
Texts	ID Description Value 2 Exclusion Exclusion is started by putting the controller into remove node state and performing the General Programming Procedure. As part of the process, the thermostat sends a node information frame at normal power. Low power exclusion is not possible. 1 Inclusion Inclusion is started by putting the controller into add node state and performing the General Programming Procedure. As part of the process, the thermostat sends a node information frame at normal power. Low power inclusion is not possible. General Programming Procedure (for controllers supporting the thermostat device class): 1. Set your primary controller to Include, add or Install mode, to add the thermostat as a node on your network (see your controller’s user manual for detailed instructions). 2. Press any button to take thermostat out of sleep mode. 3. Press and hold FAN button for 5 seconds. SETUP will be displayed in the status display line. 4. Scroll to “Z-Wave” using  buttons. Press SELECT. 5. When prompted by your Z-Wave controller, Press the YES button in the Z-Wave Install screen. 6. Press SELECT (mode button) to add thermostat to network. 7. Display line should fl ash WAIT then SUCCESS if Z-Wave connection is made. 8. If Z-Wave does not connect to controller, WAIT, then FAIL will flash in status display line. 9. If thermostat fails to connect, repeat Steps three (3) thru (7) to re-try connecting. Your controller will indicate the thermostat was successfully added to its network (see your controller’s user manual for details). Also, you can check if the thermostat was successfully added to the network by checking the ZHID (Home ID) and ZNID (Node ID) located in the Thermostat Info screen. For other specific tasks such as adding the thermostat to Scenes or Groups, or deleting the thermostat from an existing network, refer to the Z-Wave controller instructions. 6 Additional Special Features Test Mode - shortens the system built-in delays (like MOT and MRT) Aux Heat Enable (Heat Pump Systems only) - Enables the auxiliary heat operation. 2nd Stage Heat Enable - Enables the second stage heat operation 2nd Stage Cool Enable - Enables the second stage cool operation Minimum run time - Sets the Minimum Run Time (MRT) delay before a heating/cooling cycle can turn off. Prevents rapid on/off cycling. Minimum Off Time - Sets the Minimum Off Time (MOT) delay before another heating/cooling cycle can begin. Provides compressor short cycle protection. “Wait” is displayed on screen when active. Heat Setpoint Max. - Sets the maximum heating setpoint value. Will not ramp or accept setpoints higher than this maximum Cool Setpoint Min. - Sets the maximum heating setpoint value Heat Blower Off Delay - Sets the system blower delay off time after a heat call ends (fan purge) Cool Blower Off Delay - Sets the system blower delay off time after a cool call ends (fan purge) Heat - Cool Delta - Sets the minimum separation between heating and cooling setpoints. Heating Stage 1 on Threshold - Sets the delta from setpoint that stage 1 heating starts. Heating Stage 1 Off Threshold - Sets the delta from setpoint that stage 1 heating stops. Heating Stage 2 On Threshold - Sets the delta from setpoint that stage 2 heating starts. Heating Stage 2 Off Threshold - Sets the delay from setpoint that stage 2 heating stops. Aux Heat On Threshold - Sets the delta from setpoint that stage 3 heating starts. Aux Heat Off Threshold - Sets the delta from setpoint that stage 3 heating stops. Cooling Stage 1 On Threshold - Sets the delta from setpoint that stage 1 cooling starts. Cooling Stage 1 Off Threshold - Sets the delta from setpoint that stage 1 cooling stops. Cooling Stage 2 On Threshold - Sets the delta from setpoint that stage 2 cooling starts. Cooling Stage 2 Off Threshold - Sets the delta from setpoint that stage 2 cooling stops. Restore Defaults - Restores all settings to factory defaults. 5 Factory Reset Factory Reset WARNING: Please use this procedure only when the Z-Wave Primary Controller is missing or otherwise inoperable. To reset the TBZ48L's Z-Wave parameters to Factory Settings (both Z-Wave and HVAC settings): 1. Remove power from the TBZ48L. 2. Hold down the MODE and FAN buttons simultaneously while powering up. 3. Release when RESET appears on the Status Line. 4. Once the TBZ48 resets the Z-Wave and HVAC settings, a DONE confirmation message will appear on the screen before the thermostat self-reboots.
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
