Product Recognition

Certification Number

ZC10-17125904

Name

GSL-01ZW

Short Description

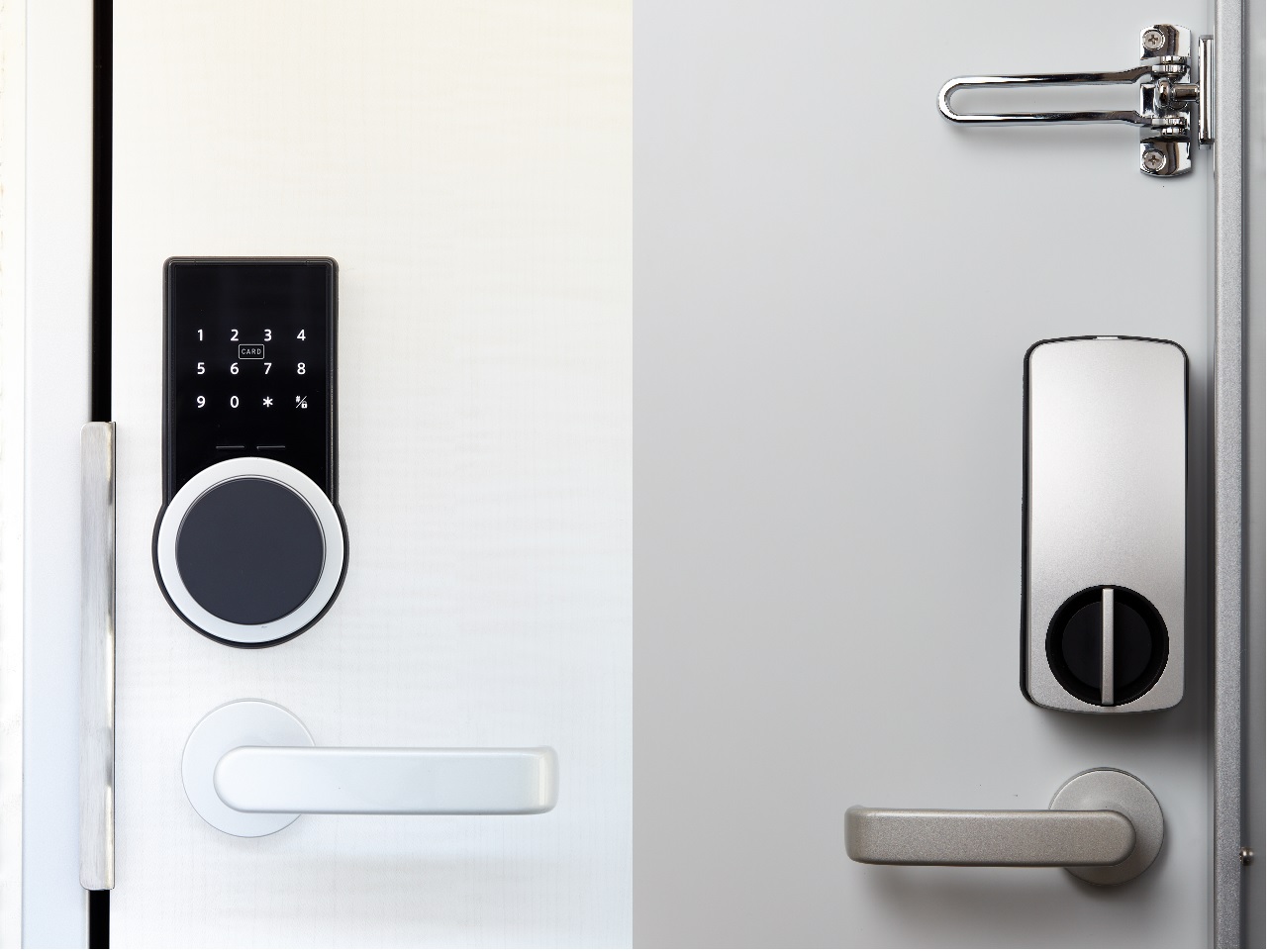

GSL-01ZW is robust, highly sophisticated multi functional smart deadbolt solution.

Long Description

GSL-01ZW can lock/unlock the deadbolt by numeric keypad, the smartphone and IC card equipped with NFC and FeliCa. Also it can trigger home appliance actions such as lighting, TV, air conditioner. In conjunction with locking / unlocking through Glamo's "iRemocon" smart gateway, and also supports remote locking, deadbolt state reporting, and issuing time-based PIN code. Wireless communication with the device is encrypted, anti-forgery NFC key-card are used as its master key, and also tough metal housing is adopted. When trying to unlock "GSL-01ZW(L)" forcedly or when overyly high temperature due to fire is detected, an alert will be raised. Since "GSL-01ZW(L)" is connected with cloud side Glamo key management system, and is capable of insert, remove key data based on the system requests. It can be integrated with the existing property management enterprise and automated thus its system management cost can be greatly reduced.

Brand

Glamo Inc.

Product Identifier

Glamo Lock

OEM Version

HW: 1 FW: 1.03:01.03

Hardware Platform

ZM5202

Z-Wave Version

6.71.01

Library Type

SLAVE_ENHANCED_232

Device Type

Door Lock - Keypad

Role Type

ROLE_TYPE_SLAVE_SLEEPING_LISTENING

Manufacturer ID

0x0348

Product Type ID

0x0003

Product ID

0x0001

User Icon

0x0300

Installer Icon

0x0300

Frequency Plans

JP: 922.50MHz, 923.90MHz, 926.30MHz

Categories

Locks

Countries / Regions

Japan

Supported Command Classes

S2 Classes

S2_ACCESS_CONTROL

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

358

Get log Index 8/10

Range:index225-index256 (unsigned value )

352

Get log Index 2/10

Range:index33-index64 (unsigned value )

From	To	Description
0	-1	Log Index Flag(33-64)

353

Get log Index 3/10

Range:index65-index96 (unsigned value )

From	To	Description
0	-1	Log Index Flag(65-96)

355

Get log Index 5/10

Range:index129-index160 (unsigned value )

From	To	Description
0	-1	Log Index Flag(129-160)

354

Get log Index 4/10

Range:index97-index128 (unsigned value )

From	To	Description
0	-1	Log Index Flag(97-128)

356

Get log Index 6/10

Range:index161-index192 (unsigned value )

From	To	Description
0	-1	Log Index Flag(161-192)

364

Set Key data 4/16

・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byte

-1

From	To	Description
0	-1	Key DATA(9-12)

365

Set Key data 5/16

・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byte

-1

From	To	Description
0	-1	Key DATA(13-16)

366

Set Key data 6/16

・Token 4byte(unsigned value ) First byte to fourth byte

-1

From	To	Description
0	-1	Token (1-4)

371

Set Key data 11/16

●1byte(unsigned value ) Registered Date Hour UTC ●2byte(unsigned value ) Registered Date Minute UTC ●3byte(unsigned value ) Registered Date Second UTC ●4byte(unsigned value ) Reserved１

-1

From	To	Description
0	255	Reserved１
0	23	Registered Date Hour UTC
0	59	Registered Date Minute UTC
0	59	Registered Date Second UTC

357

Get log Index 7/10

Range:index193-index224 (unsigned value )

From	To	Description
0	-1	Log Index Flag(193-224)

375

Set Key data 15/16

●1byte(unsigned value ) Valid end date and time Hour UTC ●2byte(unsigned value ) Valid end date and time Minute UTC ●3byte(unsigned value ) Valid end date and time Second UTC ●4byte(unsigned value ) Empty(0x00)

-256

From	To	Description
0	59	Valid end date and time Minute UTC
0	23	Valid end date and time Hour UTC
0	59	Valid end date and time Second UTC

376

Set Key data 16/16

●1byte(unsigned value ) ・action 1byte 　0x00 Registration 　0x01 update 　0x02 Delete 　0xFF Default value ●2-3byte ・Key ID 2byte(unsigned value ) 　0xFF Default value ●4byte(unsigned value ) ・Reject reason 1byte 　0x01 success 　0xFD Failure 　0xFE time out 　0xFF Default value

-1

From	To	Description
0	255	action
0	255	Reject reason
0	65535	Key ID

367

Set Key data 7/16

・Token 4byte(unsigned value ) From the fifth byte to the eighth byte

-1

From	To	Description
0	0	Token (5-8)

359

Get log Index 9/10

Range:index257-index288 (unsigned value )

From	To	Description
0	-1	Log Index Flag(257-288)

373

Set Key data 13/16

●1byte(unsigned value ) Effective start date and time Hour UTC ●2byte(unsigned value ) Effective start date and time Minute UTC ●3byte(unsigned value ) Effective start date and time Second UTC ●4byte(unsigned value ) Reserved2

-1

From	To	Description
0	59	Effective start date and time Minute UTC
0	255	Reserved2
0	23	Effective start date and time Hour UTC
0	59	Effective start date and time Second UTC

360

Get log Index 10/10

Range:index289-index300 (unsigned value )

From	To	Description
0	-1048576	Log Index Flag(289-300)

368

Set Key data 8/16

・Token 4byte(unsigned value ) From the ninth byte to the twelfth byte

-1

From	To	Description
0	-1	Token (9-12)

369

Set Key data 9/16

・Token 4byte(unsigned value ) From the 13th byte to the 16th byte

-1

From	To	Description
0	-1	Token (13-16)

362

Set Key data 2/16

・Key DATA 4byte(unsigned value ) First byte to fourth byte

-1

From	To	Description
0	-1	Key DATA(1-4)

363

Set Key data 3/16

・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byte

-1

From	To	Description
0	-1	Key DATA(5-8)

Delete all key data

Delete key data other than master key data. 0: Default value 1: Delete execution 2: Delete complete 3: Delete error 4: time out

From	To	Description
0	4	Delete Flag

382

Get all key ID 2/16

Range:ID33-ID64 (unsigned value )

From	To	Description
0	-1	KeyID Flag(33-64)

388

Get all key ID 8/16

Range:ID225-ID256 (unsigned value )

From	To	Description
0	-1	KeyID Flag(225-256)

Get State

Get the status of Lock. It is read-only and can not be changed. mode 0-2bit 000: Normal mode 001: Pairing mode 010: Master key registration mode 011: Key registration mode 100: Door opening mode ・alarm 3-5bit 000: Alarm pattern 1 001: Alarm pattern 2 010: Alarm pattern 3 011: Fire occurred 100: I forcibly unlocked and tried to destroy 101: Door open condition warning / 111: No alarm ・Malfunction 6bit 0: No failure 1: Faulty

From	To	Description
0	5	alarm (3-5bit)
0	1	malfunction (6bit)
0	4	mode (0-2bit)

301

Alarm setting 1/6

●1byte ・Alarm number 1byte 0x01: Default value 0x01: pattern１ 0x02: pattern２ 0x03: pattern３ ●2-3byte ・Ring time 2byte 0x001E: Default value 0x0001-0x0E10: Setting range ●4byte ・Reject reason / Release result 1byte 0x00: Unlock successful 0x01: Invalid key ID 0x02: Invalid key data 0x03: Incorrect combination of key ID and key data 0x09: Key ID, key data not specified (default value) " 0xFE: time out 0xFF: Key ID, initial value with key data specification

16785151

From	To	Description
1	3600	Duration
0	128	Reason
1	3	Alerm Pattern

391

Get all key ID 11/16

Range:ID321-ID352 (unsigned value )

From	To	Description
0	-1	KeyID Flag(321-352)

392

Get all key ID 12/16

Range:ID353-ID384 (unsigned value )

From	To	Description
0	-1	KeyID Flag(353-384)

394

Get all key ID 14/16

Range:ID417-ID448 (unsigned value )

From	To	Description
0	-1	KeyID Flag(417-448)

395

Get all key ID 15/16

Range:ID449-ID480 (unsigned value )

From	To	Description
0	-1	KeyID Flag(449-480)

386

Get all key ID 6/16

Range:ID161-ID192 (unsigned value )

From	To	Description
0	-1	KeyID Flag(161-192)

389

Get all key ID 9/16

Range:ID257-ID288 (unsigned value )

From	To	Description
0	-1	KeyID Flag(257-288)

396

Get all key ID 16/16

Range:ID481-ID500 (unsigned value )

From	To	Description
0	-61696	KeyID Flag(481-500)

Delete all logs

Delete all saved logs. 0: Default value 1: Delete execution 2: Delete complete 3: Delete error 4: time out

From	To	Description
0	4	Delete flag

383

Get all key ID 3/16

Range:ID65-ID96 (unsigned value )

From	To	Description
0	-1	KeyID Flag(65-96)

384

Get all key ID 4/16

Range:ID97-ID128 (unsigned value )

From	To	Description
0	-1	KeyID Flag(97-128)

393

Get all key ID 13/16

Range:ID385-ID416 (unsigned value )

From	To	Description
0	-1	KeyID Flag(385-416)

387

Get all key ID 7/16

Range:ID193-ID224 (unsigned value )

From	To	Description
0	-1	KeyID Flag(193-224)

390

Get all key ID 10/16

Range:ID289-ID320 (unsigned value )

From	To	Description
0	-1	KeyID Flag(289-320)

345

Information setting during door lock operation 5/5

Set lock operation information. ●1byte ・mode 1byte 0x00:Unlock 0x01: locking 0x02: Key registration mode Unlock: Default value ●2-3byte ・Key ID 2byte 0xFF: Default value ●4byte Empty (0 fill)

-256

From	To	Description
0	500	Key ID
0	2	mode

361

Set Key data 1/16

Key data can be registered, updated and deleted. Perform the desired operation by changing the action of the item. The execution result of the action is stored in Reject reason. ●1byte(unsigned value ) ・Valid flag 0bit 　０ Disabled 　1 Valid (default value) ・Authentication method 1-4bit 　0000 NFC 　0001 FeliCa 　0010 Android(HCE) 　0011 PIN 　1111 Default value ・Type 5-7bit 　000 Master key registration PIN key (one time) 　001 Management PIN key 　010 Master key 　011 No locking / unlocking master key 　100 Additional key 　111 Default value ●2byte(unsigned value ) ・Registration type 1byte 　0x00 user registration 　0x01 System registration 　0xFF Default value ●3-4byte(unsigned value ) ・Number of effective unlocking times 2byte 　0xFF Default value

351

Get log Index 1/10

The index where the log is saved is 1, the index which is not saved is 0, and it is possible to check the existence with the bit flag. It is read-only and can not be changed. Range:index1-index32 (unsigned value )

From	To	Description
0	-1	Log Index Flag(1-32)

381

Get all key ID 1/16

The ID for which key data is registered is 1, the ID which is not registered is 0, and the presence or absence can be confirmed by bit flag. It is read-only and can not be changed. Range:ID1-ID32 (unsigned value )

From	To	Description
0	-1	KeyID Flag(1-32)

2005

Get Key data 5/15

・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byte

-1

From	To	Description
0	-1	Key DATA(13-16)

2006

Get Key data 6/15

・Token 4byte(unsigned value ) First byte to fourth byte

-1

From	To	Description
0	-1	Token(1-4)
0	-1	Log Index Flag(225-256)

2007

Get Key data 7/15

・Token 4byte(unsigned value ) From the fifth byte to the eighth byte

-1

From	To	Description
0	-1	Token(5-8)

2008

Get Key data 8/15

・Token 4byte(unsigned value ) From the ninth byte to the twelfth byte

-1

From	To	Description
0	-1	Token(9-12)

2009

Get Key data 9/15

・Token 4byte(unsigned value ) From the 13th byte to the 16th byte

-1

From	To	Description
0	-1	Token(13-16)

2011

Get Key data 11/15

●1byte(unsigned value ) Registered Date Hour UTC ●2byte(unsigned value ) Registered Date Minute UTC ●3byte(unsigned value ) Registered Date Second UTC ●4byte(unsigned value ) Reserved１

-1

From	To	Description
1	23	Registered Date Hour UTC
1	59	Registered Date Minute UTC
1	59	Registered Date Second UTC
0	-1	Reserved１

2013

Get Key data 13/15

-1

From	To	Description
0	-1	Reserved2
0	23	Effective start date and time Hour UTC
0	59	Effective start date and time Minute UTC
0	59	Effective start date and time Second UTC

2015

Get Key data 15/15

-256

From	To	Description
0	23	Valid end date and time Hour UTC
0	59	Valid end date and time Minute UTC
0	59	Valid end date and time Second UTC

2003

Get Key data 3/15

・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byte

-1

From	To	Description
0	-1	Key DATA(9-12)
0	-1	Key DATA(5-8)

2004

Get Key data 4/15

・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byte

-1

From	To	Description
0	-1	Key DATA(9-12)

302

Alarm setting 2/6

●1-2byte Key ID ●3-4byte Empty (0 fill)

-65536

From	To	Description
0	65535	Key ID

306

Alarm setting 6/6

・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byte

-1

From	To	Description
0	-1	Key DATA(13-16)

312

Main unit setting 2/2

●1-2byte ・Maximum Number of Key Registrations 2byte 　range 1-500 ●3-4byte ・Maximum number of key registrations by users 2byte 　range 1-500

335546880

From	To	Description
1	500	Maximum number of key registrations by users (byte-7,8 2byte
1	500	Maximum Number of Key Registrations (byte-5,6 2byte)

303

Alarm setting 3/6

・Key DATA 4byte(unsigned value ) First byte to fourth byte

-1

From	To	Description
0	-1	Key DATA(1-4)

304

Alarm setting 4/6

・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byte

-1

From	To	Description
0	-1	Key DATA(5-8)

305

Alarm setting 5/6

・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byte

-1

From	To	Description
0	-1	Key DATA(9-12)

341

Information setting during door lock operation 1/5

・Key DATA 4byte(unsigned value ) First byte to fourth byte

-1

From	To	Description
0	-1	Key DATA(1-4)

342

Information setting during door lock operation 2/5

・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byte

-1

From	To	Description
0	-1	Key DATA(5-8)

343

Information setting during door lock operation 3/5

・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byte

-1

344

Information setting during door lock operation 4/5

・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byte

-1

From	To	Description
0	-1	Key DATA(13-16)

2002

Get Key data 2/15

・Key DATA 4byte(unsigned value ) First byte to fourth byte

-1

From	To	Description
0	-1	Key DATA(1-4)

1003

Get Log 3/3

●1-4byte(unsigned value ) event information ●0x01: Unlock ・Key ID 2byte ・result 1byte 0x00 success 0x01 Failure 0x02 Failure (in case the dead bolt did not move despite locking / unlocking operation in automatic mode) 0x03 Failure (when clutch did not move in manual mode) ●0x02: locking ・Key ID 2byte ・result 1byte 0x00 success 0x01 Failure 0x02 Failure (in case the dead bolt did not move despite locking / unlocking operation in automatic mode) 0x03 Failure (when clutch did not move in manual mode) ●0x03: alarm ・Alarm type 1byte 0x01 Alarm notification pattern1 0x02 Alarm notification pattern2 0x03 Alarm notification pattern3 0x04 Automatic unlock when fire occurs 0x05 Destruction warning 0x07 Alarm stop 0x08 Battery remaining warning ●0x04: Master Key Registration ・Key ID 2byte ●0x05: Key registration ・Key ID 2byte ●0x06: Delete master key ・Key ID 2byte ●0x07: Delete key ・Key ID 2byte ●0x08: Delete all keys ・No details ●0x09: Key invalid ・Key ID 2byte ●0x0A: Key change ・Key ID 2byte ●0x0B: Pairing ・result 1byte 0x00 Pairing success 0x01 Pairing release successful ●0x0C: Default configuration ・No details ●0x0D: Configuration ・Setting type 1byte (Refer to main unit setting) ・Setting contents 2byte ●0x0E: Unlock without authentication ・No details ●0x0F: Lock without authentication ・No details ●0x10: Version up of the farm ・Version 1byte ・Revision 1byte

-1

From	To	Description
0	-1	event information

Texts

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Is Flirs

Yes
