Product Recognition | |
|---|
Certification Number | ZC12-20050062 |
|---|

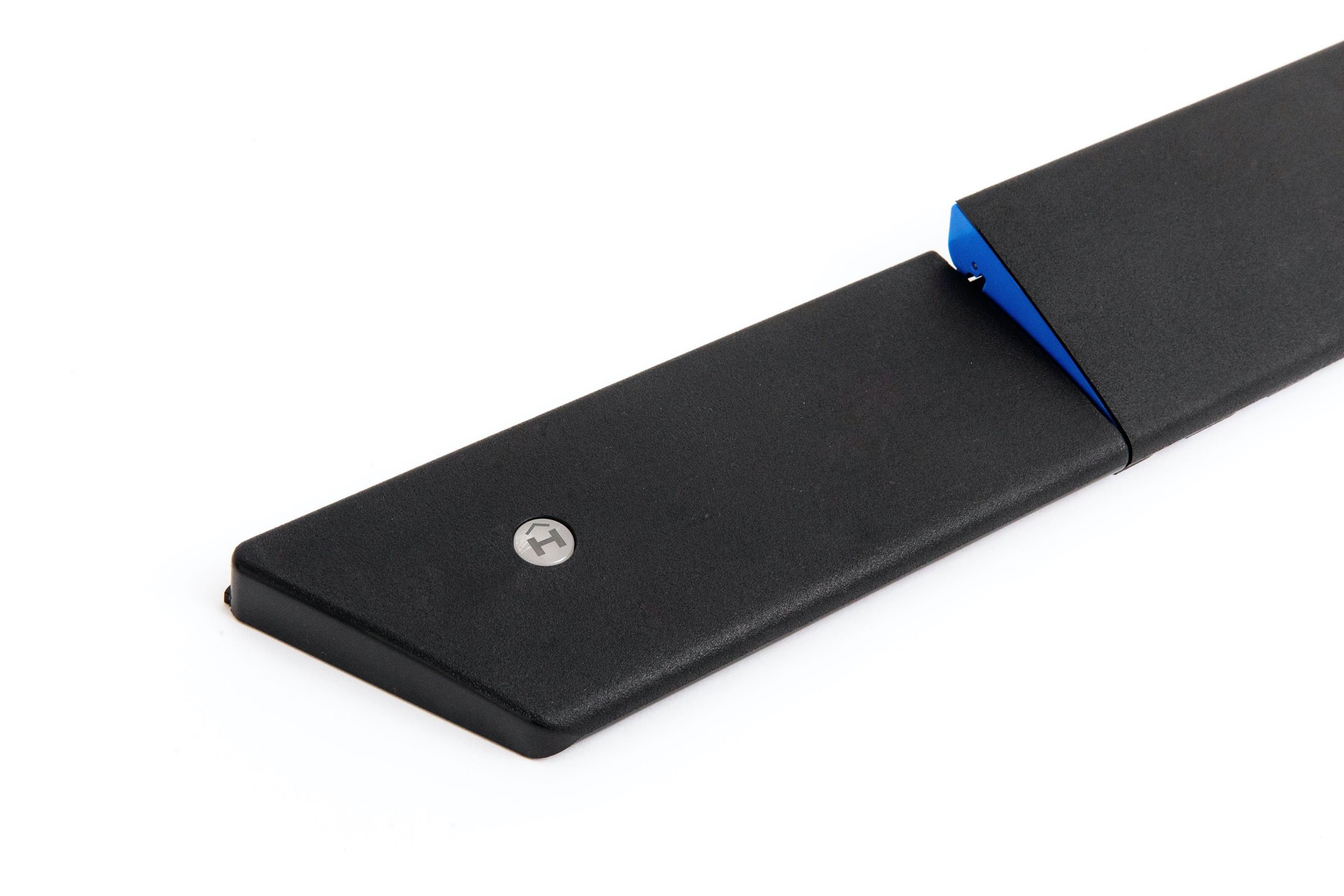

Name | Haven Connect Z |
|---|
Short Description | HAVEN Connect is a preventative smart lock 10X stronger than a deadbolt. |
|---|
Long Description | HAVEN is a first-of-its-kind preventative home security product. Our floor-anchored, electronic locking wedge fortifies the door at its strongest point – the base.
Made with steel, Delrin™, and military grade nylon, the HAVEN system is 10x stronger than your deadbolt.
Technical Details:
- Installs in minutes
- Operated electronically or manually with a foot pedal
- Composition: Steel, Delrin™, and military grade nylon
- Connection: Z-Wave (700-Series) with S2 Security
- Strength: 10x stronger than your deadbolt, Haven provides an additional layer of protection in an effort to deter a break-in at the door
- Main Battery: Rechargeable 3.7V 5000MAH Lipo battery |
|---|
Brand | HAVEN |
|---|
Product Identifier | HL1-CNT-001-Z |
|---|
Product Line | Connect |
|---|
OEM Version | HW: 1 FW: 0.51 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.12.2 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Lock |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x043A |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_DOOR_LOCK_V4 | Door Lock V4 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|

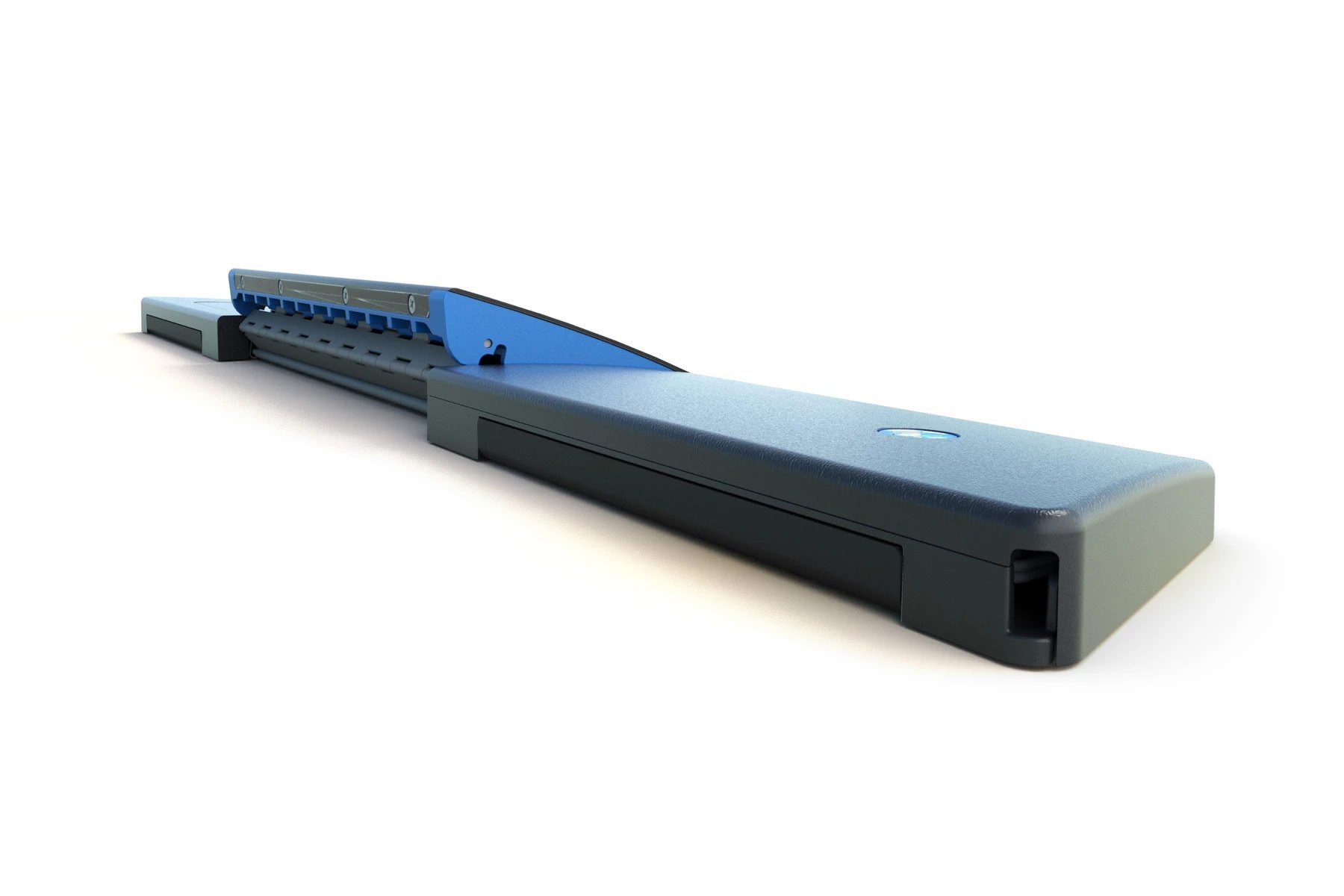

Image_Product_Supplemental_3 | Back View - Locked | | Manual_Primary_Lang | Product Manual In English | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | Lifeline Group 1 for processing unsolicited notifications. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Flag Advanced | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Gate Operation Minimum Battery Level % | Minimum battery level at which the gate will activate. | 2 | Yes | 1 | 0 | 50 | 10 | From | To | Description |
|---|
0 | 50 | The percent battery level in which the system enters "Critical Low Battery" mode. Example: 10 means 10% is critical low battery |
| 3 | Impact Detection Parameter 1 | Impact detect parameter. Do not adjust unless advised by Haven Lock. | 2 | Yes | 1 | 1 | 10 | 2 | From | To | Description |
|---|
1 | 10 | Represents "tens" of milliseconds to debounce the impact detection system. Example: 2 means 20ms debounce |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Excerpt from the Manual "Locate the DSK via the QR code label under the Haven electronics hood adjacent to the buttons and LEDs."
In addition, it will located on a card in the box. | 1 | Classic Inclusion | Setting your controller to include mode (standard or NWI) and momentarily pressing the Pairing button will add the Haven Lock to the network. | 2 | Classic Exclusion | The device can be removed from a network by setting the controller to exclude mode (standard or NWE) and momentarily pressing the Pairing button. | 4 | Wake-Up Procedure | N/A - It's a FLiRS device so it wakes up every second to see if anyone is trying to talk to it. | 5 | Factory Reset Procedure | Under Button Functions (Step 2)
"Default settings and remove from network: Hold Pairing button until Red LED comes on and then release (about 10 seconds). Please use this procedure only when the network primary controller is missing or otherwise inoperable."
Under Network Inclusion/Exclusion (Bullet 3 last 3 sentences)
"This will initiate the Device Reset Locally Command Class. The device will be removed and all parameters will be reset to default. Please use this procedure only when the network primary controller is missing or otherwise inoperable." |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Lock state: Lock jammed | Home Security | Impact detected | Power Management | Power status: Power has been applied | Power Management | Battery load status: Battery is charging | Power Management | Battery level status: Battery is fully charged | Power Management | Battery level status: Charge battery soon | Power Management | Battery level status: Charge battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
