4 | Input 3 contact type | 0 | 1 | 0 | 0 | 0 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98

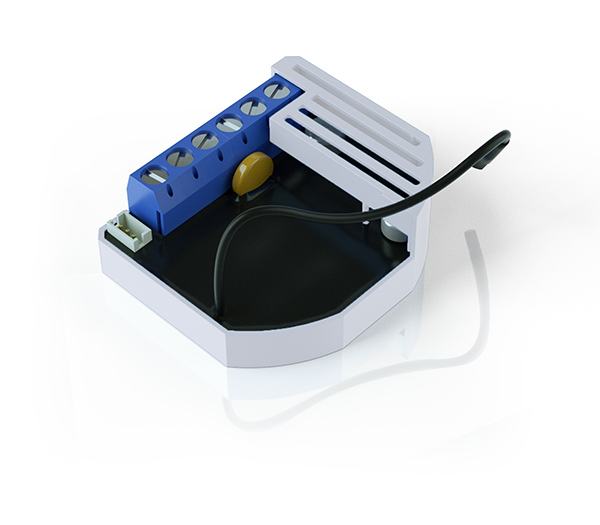

From | To | Description |
|---|
0 | 0 | NO (normally open) input type | 1 | 1 | NC (normally close) input type |
| |
10 | Activate / deactivate functions ALL ON / ALL OFF | 0 | 2 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 0 | ALL ON is not active, ALL OFF is not active | 1 | 1 | ALL ON is not active, ALL OFF active | 2 | 2 | ALL ON active, ALL OFF is not active | 255 | 255 | ALL ON active, ALL OFF active |
| Flush Dimmer module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system. |
11 | Automatic turning off output after set time | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Auto OFF disabled | 1 | 32536 | = 1second - 32536 seconds Auto OFF enabled with define time, step is 1 second |
| Automatic turning off output after set time |
2 | Input 2 switch type | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | bi-stable switch type | 0 | 0 | mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero |
| NOTE: to enable this function, Parameter 20 or Parameter 100 has to be set. |
3 | Input 2 contact type | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | NO (normally open) input type | 1 | 1 | NC (normally close) input type |
| |
42 | Power reporting in Watts by time interval | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | reporting disabled | 1 | 32767 | = 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value |
| Set value means time interval (0 - 32767) in seconds, when power report is send. Available configuration parameters |
60 | Minimum dimming value | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | = 1% (minimum dimming value) | 1 | 98 | = 1% - 98%, step is 1%. Minimum dimming values is set by entered value |
| NOTE: The minimum level may not be higher than the maximum level! 1% min. dimming value is defined by Z-Wave multilevel device class. |
101 | Enable / Disable Endpoints I3 or select Notification Type and Event | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Endpoint, I3 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED | 1 | 1 | Home Security; Motion Detection, unknown loc. | 2 | 2 | CO; Carbon Monoxide detected, unknown loc. | 3 | 3 | CO2; Carbon Dioxide detected, unknown loc. | 4 | 4 | Water Alarm; Water Leak detected, unknown loc. | 5 | 5 | Heat Alarm; Overheat detected, unknown loc. | 6 | 6 | Smoke Alarm; Smoke detected, unknown loc. | 9 | 9 | Sensor binary |
| Enabling I3 means that Endpoint (I3) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Available configuration parameters (data type is 1 Byte DEC): Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I3 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security. |
110 | Temperature sensor offset settings | 0 | 2 | 0 | 0 | 32536 | From | To | Description |
|---|
1 | 100 | value from 0.1 degrees Celsius to 10.0 degrees Celsius is added to actual measured temperature | 1001 | 1100 | value from -0.1 degrees Celsius to -10.0 degrees Celsius is subtracted to actual measured temperature. | 32536 | 32536 | offset is 0.0C |
| Set value is added or subtracted to actual measured value by sensor. |
120 | Temperature sensor reporting | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
0 | 0 | reporting disabled | 1 | 127 | = 0,1 degrees Celsius - 12,7 degrees Celsius, step is 0,1 degrees Celsius | 5 | 5 | = 0,5 degrees Celsius change |
| If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C change • 0 - reporting disabled • 1 - 127 = 0,1°C - 12,7°C, step is 0,1°C |
61 | Maximum dimming value | 0 | 1 | 0 | 0 | 99 | From | To | Description |
|---|
2 | 99 | = 2% - 99%, step is 1%. Maximum dimming values is set by entered value | 99 | 99 | = 99% (Maximum dimming value) |
| NOTE: The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by Z-Wave multilevel device class. |
65 | Dimming time (soft on/off) | 0 | 2 | 0 | 0 | 100 | From | To | Description |
|---|
50 | 255 | = 500 mseconds - 2550 mseconds (2,55s), step is 10 mseconds | 100 | 100 | = 1s |
| Set value means time of moving the Dimmer between min. and max. dimming values by short press of push button I1 or controlled through UI (BasicSet). |
66 | Dimming time when key pressed | 0 | 2 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | = 1 second – 255 seconds | 3 | 3 | = 3s |
| Time of moving the Dimmer between min. and max dimming values by continues hold of push button I1 or associated device. |
67 | Ignore start level | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | respect start level | 1 | 1 | ignore start level |
| This parameter is used with association group 3. A receiving device SHOULD respect the start level if the Ignore Start Level bit is 0. A receiving device MUST ignore the start level if the Ignore Start Level bit is 1. |
68 | Dimming duration | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | dimming duration according to parameter 66 | 1 | 127 | from 1 to 127 seconds |
| This parameter is used with association group 3. The Duration field MUST specify the time that the transition should take from the current value to the new target value. A supporting device SHOULD respect the specified Duration value. |
100 | Enable / Disable Endpoints I2 or select | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Endpoint, I2 disabled | 0 | 0 | | 1 | 1 | Home Security; Motion Detection, unknown loc. | 2 | 2 | CO; Carbon Monoxide detected, unknown loc. | 3 | 3 | CO2; Carbon Dioxide detected, unknown loc. | 4 | 4 | Water Alarm; Water Leak detected, unknown loc. | 5 | 5 | Heat Alarm; Overheat detected, unknown loc. | 6 | 6 | Smoke Alarm; Smoke detected, unknown loc. | 9 | 9 | Sensor binary |
| Enabling I2 means that Endpoint (I2) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I2 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security. |
249 | Enable/Disable Reporting on Set command | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable reporting | 1 | 1 | Enable reporting |
| |
250 | Unsecure / Secure Inclusion | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Unsecure Inclusion | 1 | 1 | Secure Inclusion |
| A Flush dimmer supports secure and unsecure inclusion. Even if the controller does not support security command classes, a dimmer could be included as unsecure and keep all the functionality. |
1 | Input 1 switch type | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | bi-stable switch type | 0 | 0 | mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero |
| NOTE: Switch connected to S1 terminal is a master switch. It activates the basic functionality of the Dimmer |
