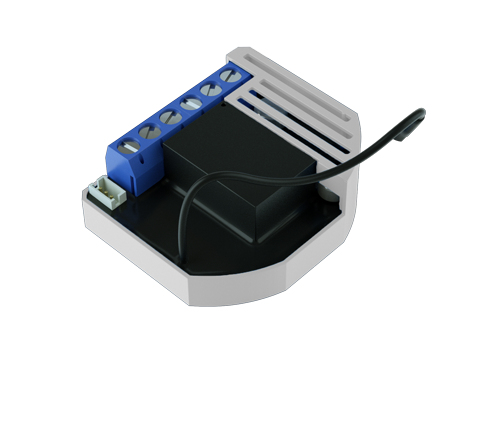

78 | Forced Shutter calibration | By modifying the parameters setting from 0 to 1 a Shutter enters the calibration mode. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | | 1 | 1 | Start calibration process (when calibration process is finished, completing full cycle - up, down and up, set the parameter 78 (Forced Shutter calibration) value back to 0 |
|
42 | Power reporting in Watts by time interval for Q1 or Q2 | Set value means time interval (0 – 32767) in seconds, when power report is send. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 32767 | = 1 second - 32767 seconds. Reporting enabled, power report is send with time interval set by entered value |
|
110 | Temperature sensor offset settings | Set value is added or subtracted to actual measured value by sensor. | 0 | 2 | 0 | 0 | 32536 | From | To | Description |
|---|
1 | 100 | Value from 0.1 Degrees Celsius to 10.0 Degrees Celsius is added to actual measured temperature | 1001 | 1100 | Value from -0.1 Degrees Celsius to -10.0 Degrees Celsius is subtracted to actual measured temperature | 32536 | 32536 | Offset is 0.0 Degrees Celsius |
|
120 | Temperature sensor reporting | If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C • 0 - Reporting disabled • 1-127 = 0,1°C - 12,7°C, step is 0,1°C | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 127 | = 0,1 Degrees Celsius - 12,7 Degees Celsius; step is 0,1 Degrees Celsius | 5 | 5 | = 0,5 Degrees Celsius |
|
10 | Activate/deactivate functions ALL ON / ALL OFF | Flush Shutter responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controllers belonging to the system. | 0 | 2 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 0 | ALL ON is not active ALL OFF is not activ | 1 | 1 | ALL ON is not active ALL OFF active | 2 | 2 | ALL ON active ALL OFF is not active | 255 | 255 | ALL ON active, ALL OFF active |
|
71 | Operating modes | This parameter defines selection between two available operating modes. NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Shutter mode | 1 | 1 | Venetian mode (up/down and slate rotation) |
|
72 | Slats tilting full turn time | This parameter defines the time necessary for slats to make full turn (180 degrees). | 0 | 2 | 0 | 0 | 150 | From | To | Description |
|---|
0 | 0 | Tilting time disabled | 2 | 32767 | = 0,01seconds - 327,67 seconds | 150 | 150 | = 1,5 seconds |
|
73 | Slats position | This parameter defines slats position after up/down movement through Z-wave or push-buttons. • default value 1 • 0 - Slats return to previously set position only in case of Z-wave control (not valid for limit switch positions). • 1 - Slats return to previously set position in case of Z-wave control, push-button operation or when the lower limit switch is reached. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Slats return to previously set position only in case of Z-wave control (not valid for limit switch positions) | 1 | 1 | Slats return to previously set position in case of Z-wave control, push-button operation or when the lower limit switch is reached |
|
74 | Motor moving up/down time | This parameter defines Shutter motor moving time of complete opening or complete closing. NOTE: Important is that the reference position to manually set moving time is always Shutter lower position! Set parameter 74 to 0 and move the Shutter (using up/down push buttons or main controller UI) to the lowest desired position. On this Shutter position, set parameter 74 to time for complete opening or complete closing. At this point Shutter can be moved up (open) for set time, but can't be moved down because this position is already set as lower Shutter position. To change Shutter lower position below already set (manual recalibration), parameter 74 must be set to 0 and repeat the procedure described above. In case Shutter has limit switches, but anyhow you would like to limit opening/closing position by time, you can still do it. In case you put time that is longer that opening/closing real time limited by limit switches, Shutter will stop at limit switch, but the module relay will switch off after define time, not by Shutter limit switch. Take in consideration that in this condition, the positioning with slider through UI will not show correct Shutter position. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Moving time disabled (working with limit switches) | 1 | 32767 | = 0,1 seconds - 3276,7 seconds. After that time motor is stopped (relay goes to off state) |
|
