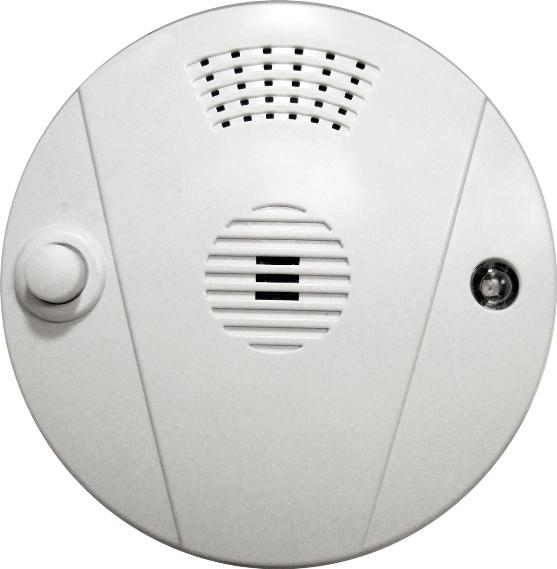

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product or Owner's Manual

Battery Quantity

Battery Type

Firmware Updatable

Sensors

2

5

0

Group 2 for “Basic Set”: Basic CC, v2 (COMMAND_CLASS_BASIC)

1

5

0

Group 1 for “LifeLine”: Notification CC,V4 (COMMAND_CLASS_NOTIFICATION) Battery CC (COMMAND_CLASS_BASIC) Device Reset Locally CC

3

5

0

Group 3 for “Notification Report”: Notification CC,V4 (COMMAND_CLASS_NOTIFICATION) Trigger Report (high temperature detected) When the Heat Detector is triggered, it will transmit Notification command (Notification Type:0x04, Event:0x02) to all nodes in Group1 and 3, and Basic set (0xFF) commands to the nodes in Group 2. Restore Report (High temperature calmed) When high temperature cool down, it will transmit Notification command (Notification Type:0x04, Event:0x06) to all nodes in Group 1 and 3, and Basic set (0x00) commands to the nodes in Group 2. Low Battery Report When low battery voltage is detected, the Smoke Detector will transmit Battery command to all nodes in Group 1. When the Smoke Detector on low battery has its battery replaced, it will transmit Battery restore command to all nodes in Group 1. Factory Reset When the Smoke Detector is reset to factory default, it will send Device Reset Locally to all nodes in Group 1.

2

Exclusion

The Heat Detector must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). Within 1.5 seconds, press the Test Button 3 times and the Heat Detector will be removed from the Z-Wave network.

4

Device Wake-Up

This function uses the Z-Wave Wake Up Command Class. The Wake Up Command Class allows the battery-powered Heat Detector to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up time is programmed automatically according to Control Panel’s setting when The Heat Detector is included. The recommended setting of the wake up time is 60 minutes above.

1

Inclusion

This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Insert the 3 “AA” batteries into the battery compartment connecting the correct polarity as shown on the battery compartment lid. HD-9 will emit a 2-tone beep. Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual). Within 1.5 seconds, press the Test Button 3 times. HD-9 will emit a 2- tone beep. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process. If the sensor has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel.

5

Factory Reset

(Only use factory reset when network Control Panel/Gateway is missing or inoperable). Remove the batteries of the Heat Detector first. Press and hold the Test Button. While holding the Test Button, power on the Heat Detector by re-inserting the batteries, wait for 10 seconds to factory reset. Factory resetting the Heat Detector will restore it to factory default settings (excluded from the Z-Wave network). The Z-Wave gateway or control panel will still keep its Z-Wave settings. Please refer to the gateway or control panel manual on how to remove the Heat Detector’s Z-Wave settings.

Air temperature
